Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-RADIAL-TIER-STAND-01Display
Radial tier display stand dieline
A freestanding 360° display: round shelves of descending size slide over two cross-slotted stepped uprights and rest on their shoulders. Two to six tiers. A parametric template — change its size and the cut outline, bleed and safe area are redrawn to match.
InsideØ 600 × 1200 mm
OutsideØ 603.2 × 1203.2 mm
Flat blank600 × 599.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-RADIAL-TIER-STAND-01
- Inside size
- Base shelf diameter 600 · Overall height 1200 mm
- Size range
- Base shelf diameter 200–1200 · Overall height 300–2000 mm
- Manufacturing
- Ø 601.6 × 1201.6 mm score to score · inside vs outside sizes
- Parts
- 5 parts — Upright A, Upright B, Shelf 1 (Ø 600), Shelf 2 (Ø 450), Shelf 3 (Ø 300)
- Board area
- 1.050 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WB-fluteEB doubleF-fluteKraft 350
- Good for

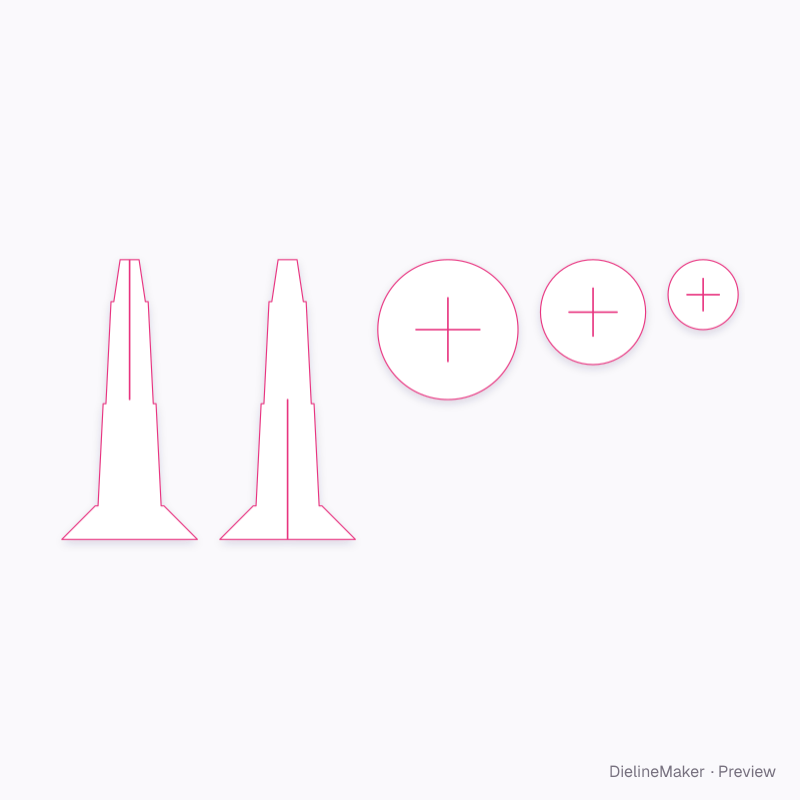

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Shelvescount
- Top shelf diametermm
- Lowest shelf heightmm
- Crown above top shelfmm

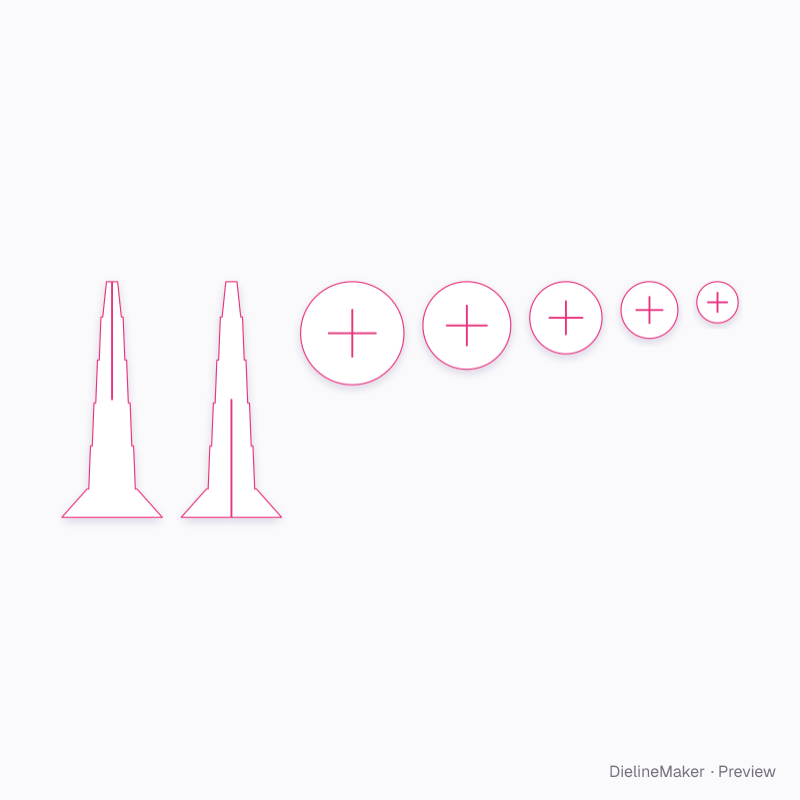

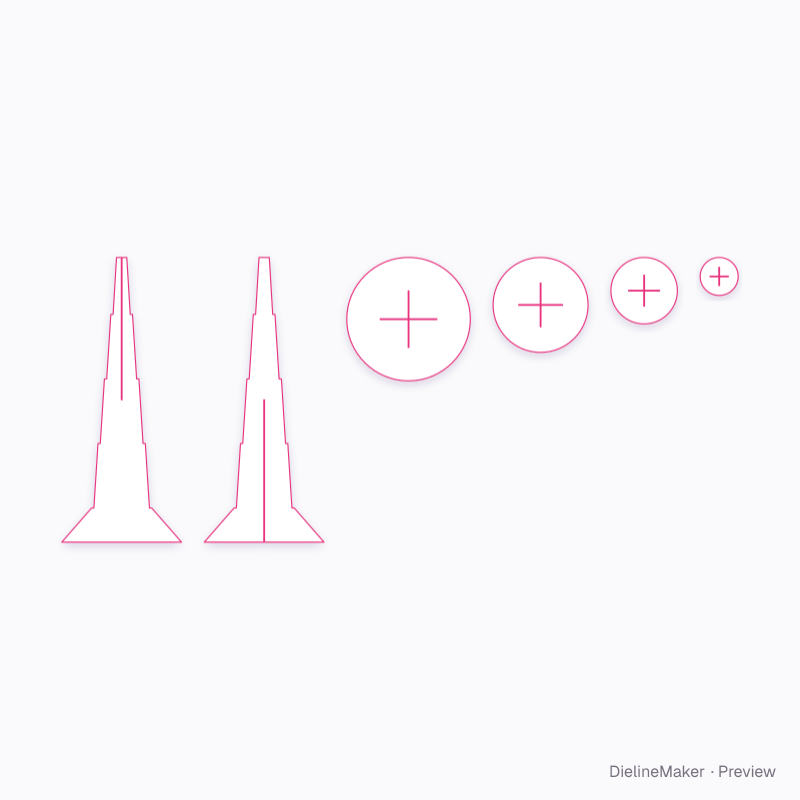

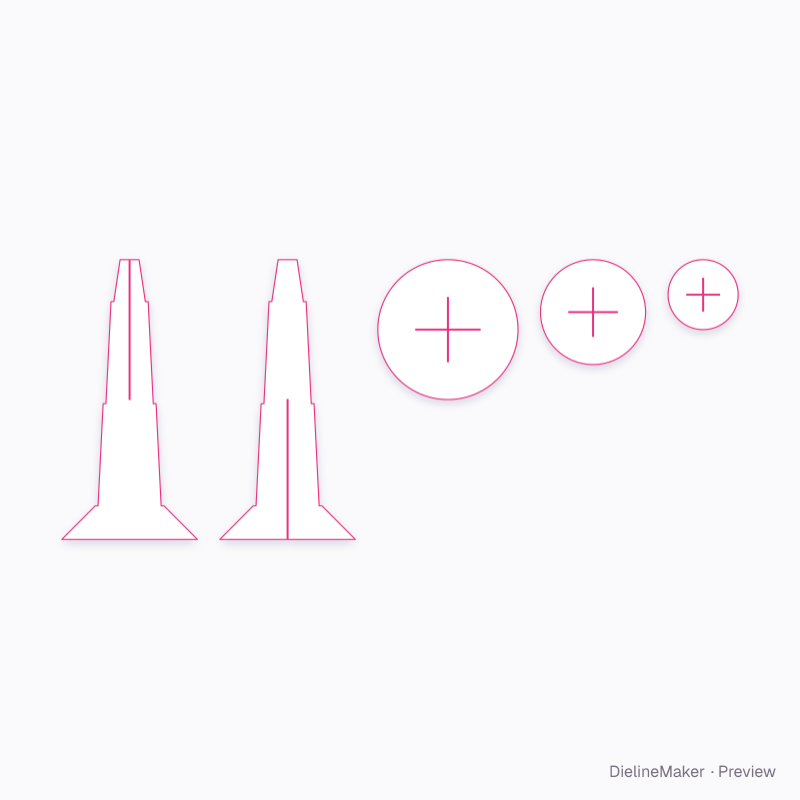

Ready-sized radial tier display stand presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset

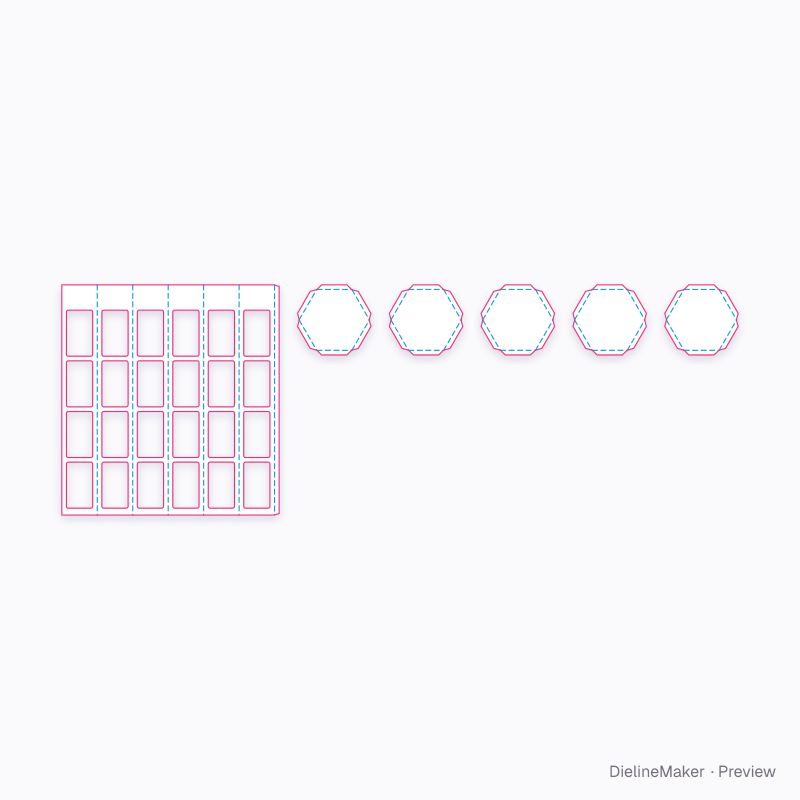

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this radial tier display stand yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
