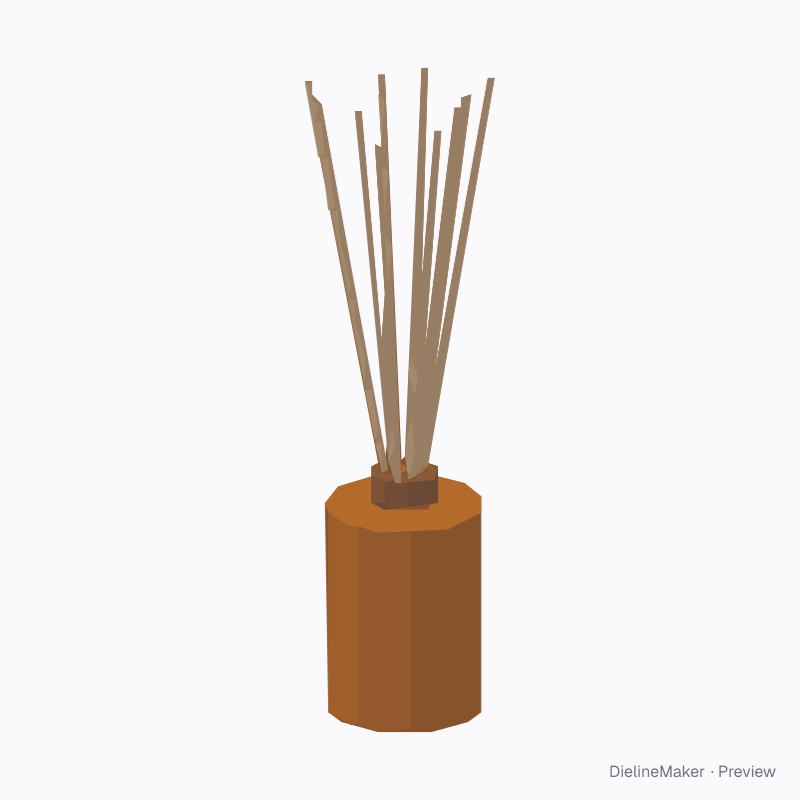

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-REED-01Labels
Amber glass diffuser with wood collar dieline
A glass reed diffuser bottle with collar and a fan of rattan reeds: rectangular, square or round, clear or painted glass. Print the front label; pair it with a tuck-end carton. A ready-sized preset of the reed diffuser bottle — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside75 × 75 × 120 mm
Outside75 × 75 × 120 mm
Flat blank106 × 60 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-REED-01
- Inside size
- Bottle width / diameter 75 · Bottle depth 75 · Bottle height 120 mm
- Size range
- Bottle width / diameter 40–150 · Bottle depth 30–150 · Bottle height 50–250 mm
- Manufacturing
- 75 × 75 × 120 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.006 m² · about 90 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Bottle3 options
- Reedscount
- Reed lengthmm
- Glass5 options
- Collar4 options
- Fragrance level%
The reed diffuser bottle family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this amber glass diffuser with wood collar yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
