A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-MAGFILE-01Apparel & merchandise
Slim document holder decoration template
A wrapped hardboard magazine file with a tall back, a low front and sloping sides. Print the back, the front and both sides. A ready-sized preset of the rigid magazine file holder — adjust the object dimensions and decoration area to preview your artwork at size.
Object size230 × 60 × 310 mm
Artwork area230 × 310 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-MAGFILE-01
- Object size
- Depth 230 · Width 60 · Back height 310 mm
- Size range
- Depth 150–400 · Width 50–200 · Back height 150–400 mm
- Parts
- 4 parts — Back (outside), Front (outside), Left side (outside), Right side (outside)
- Artwork area
- 0.119 m²
- Good for

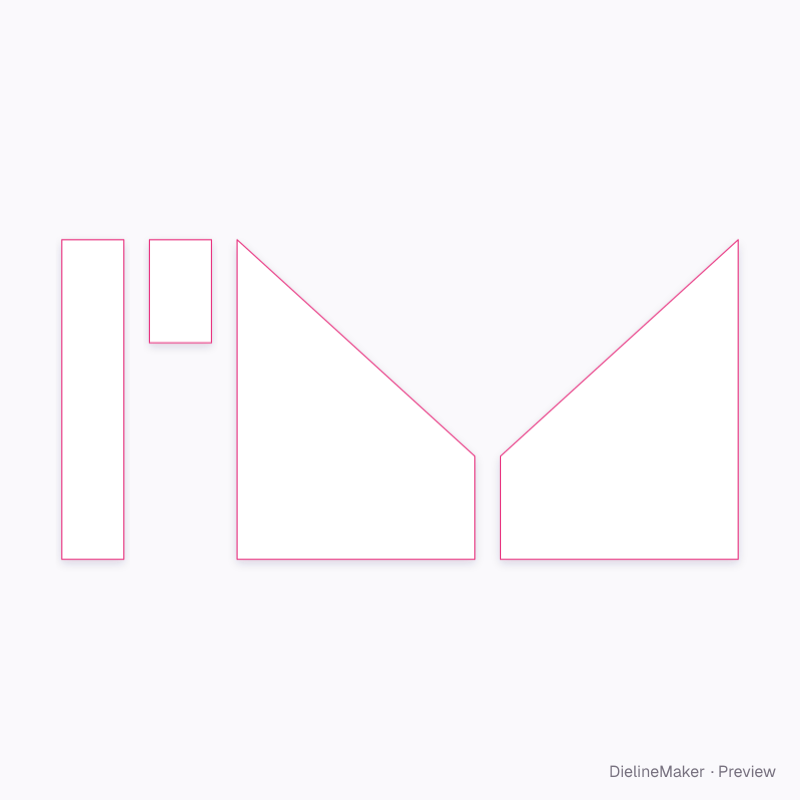

The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 4 options; the template and 3D preview follow each change.
- Front heightmm
- Level top at the back3 options
- Finger hole in the backon / off
- Wrap colour4 options

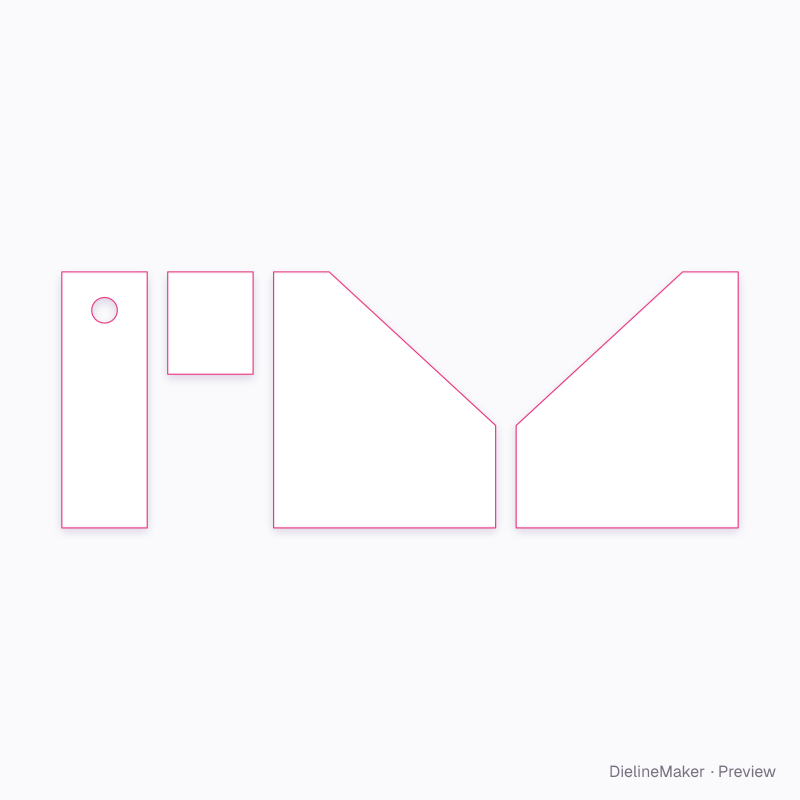

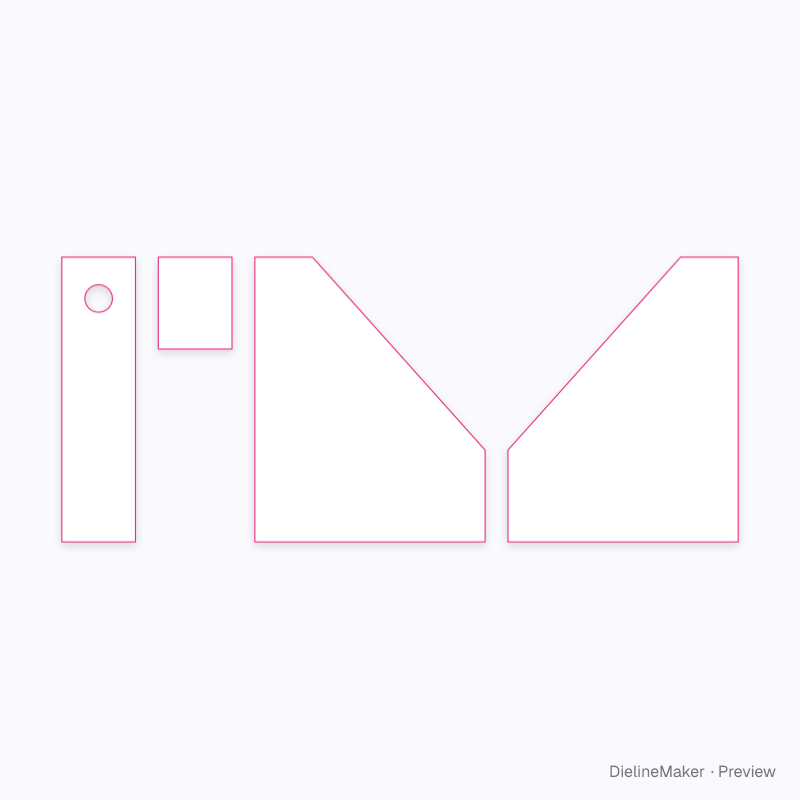

The rigid magazine file holder family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this slim document holder yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
