The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
B5 176 × 250 mm saddle-stitch booklet dieline
176 × 250 mm finished format with editable dimensions and artwork. A ready-sized preset of the saddle-stitch booklet — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside176 × 250 mm
Outside176 × 250 mm
Flat blank352 × 250 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Page width 176 · Page height 250 mm
- Size range
- Page width 75–450 · Page height 100–650 mm
- Manufacturing
- 176 × 250 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Outer sheet / cover, Inner sheet 2
- Board area
- 0.176 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for

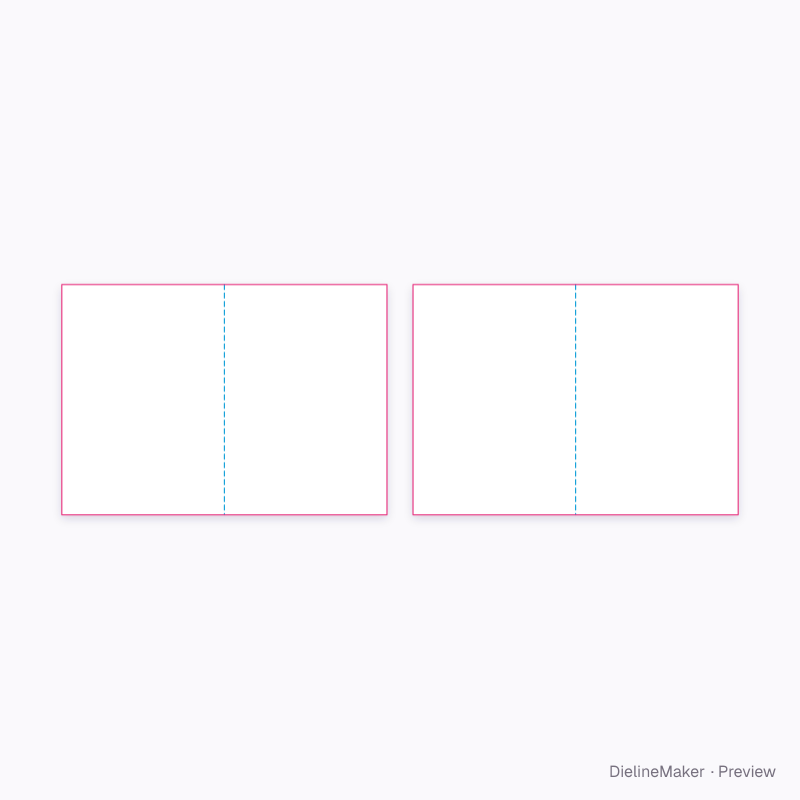

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.16 mm for Art paper 170 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Right page / frontOuter sheet / cover | 176 × 250 | L × H |
| Left page / backOuter sheet / cover | 176 × 250 | L × H |
| Right page / frontInner sheet 2 | 176 × 250 | L × H |
| Left page / backInner sheet 2 | 176 × 250 | L × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Sheets / pages6 options
- Stitching3 options
