The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
50 × 75 mm sample packet dieline
50 × 75 mm finished format with editable dimensions and artwork. A ready-sized preset of the seed packet — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside50 × 75 mm
Outside50 × 75 mm
Flat blank108 × 106.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 50 · Height 75 mm
- Size range
- Width 45–200 · Height 60–300 mm
- Manufacturing
- 50 × 75 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.009 m² · about 56 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170Kraft 350SBS 300SBS 18 pt
- Good for

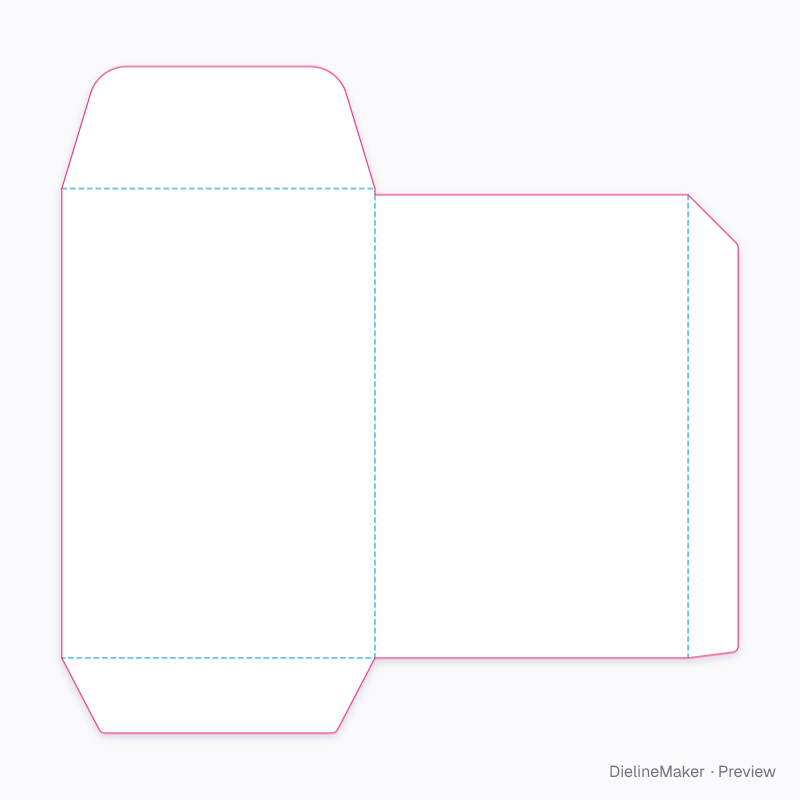

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.16 mm for Art paper 170 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 50 × 75 | W × H |
| Back | 50 × 74 | W × H − 1 |
| Side seam | 8 × 74 | – |
| Bottom flap | 50 × 12 | L × – |
| Top flap | 50 × 19.5 | L × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Side seammm
- Bottom flapmm
- Top flapmm
- Flap shape2 options
- Gummed flapon / off

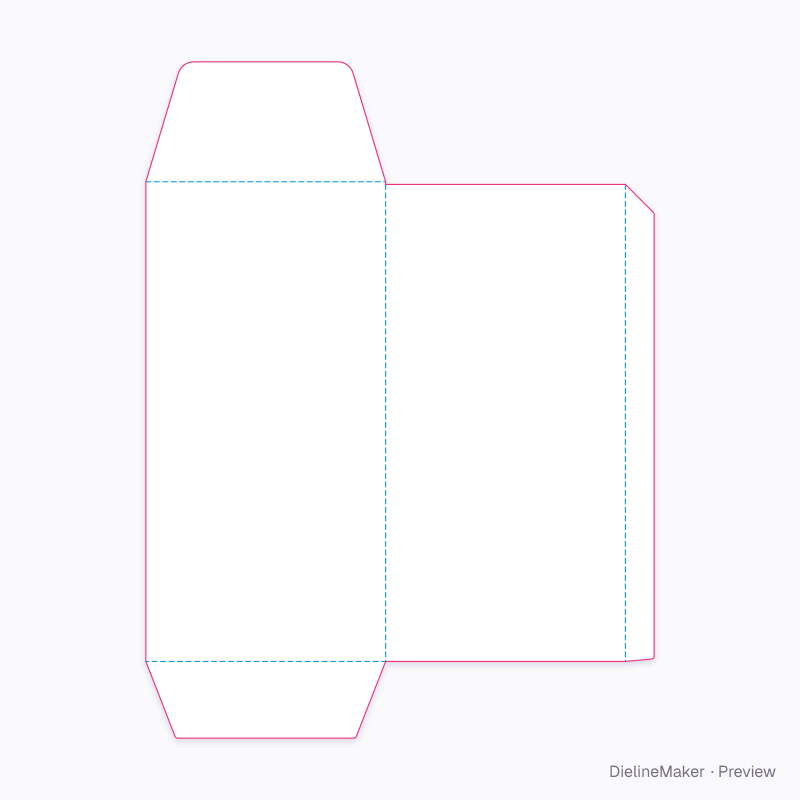

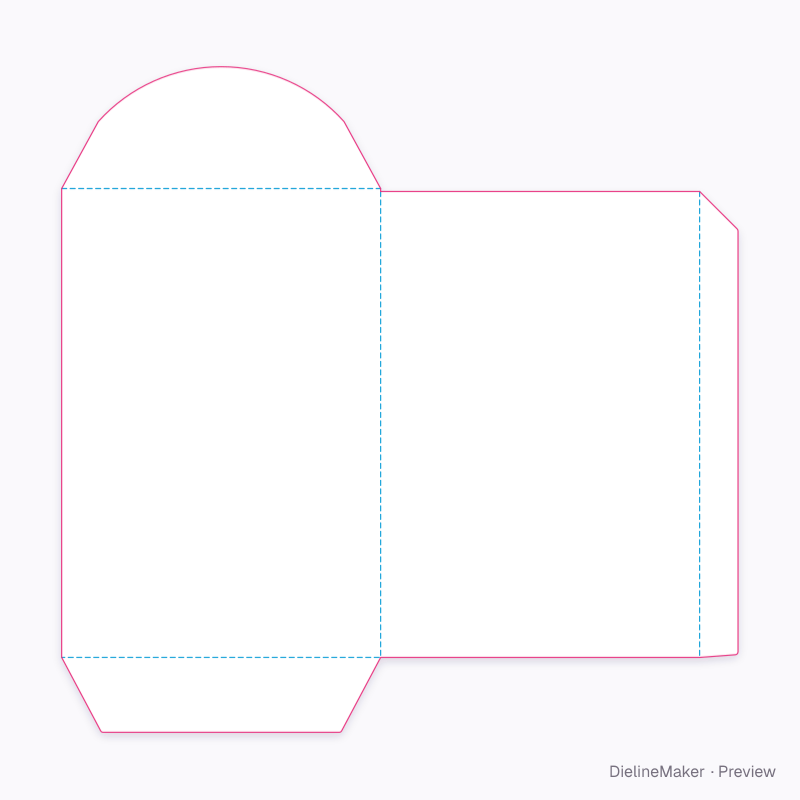

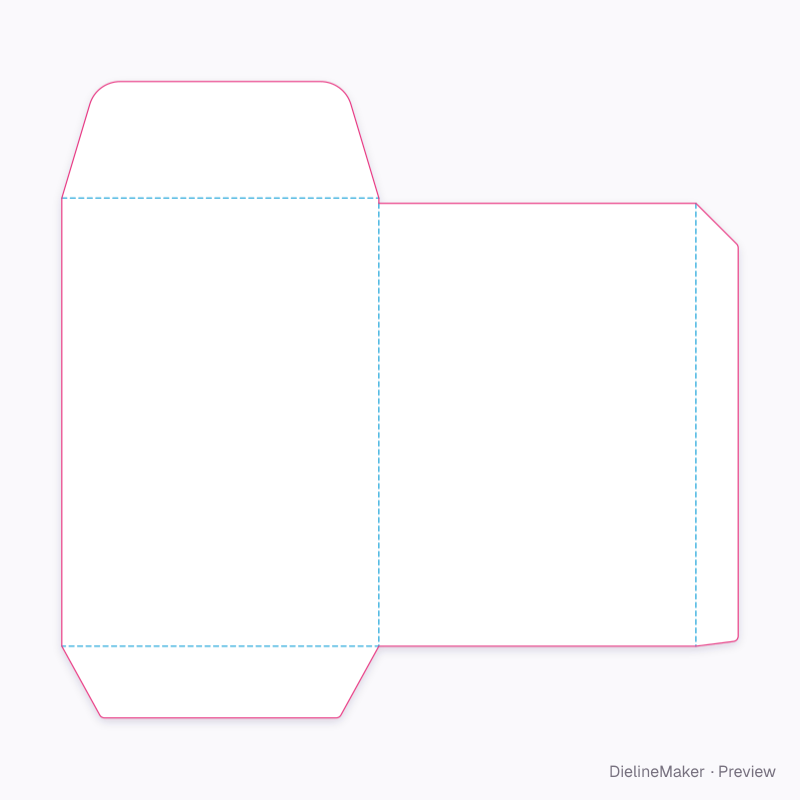

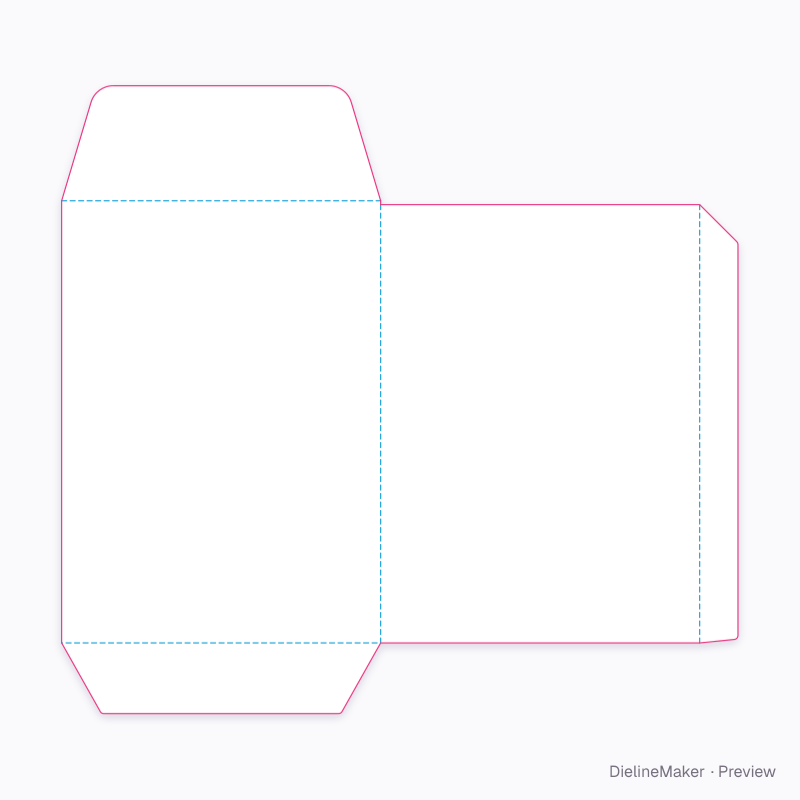

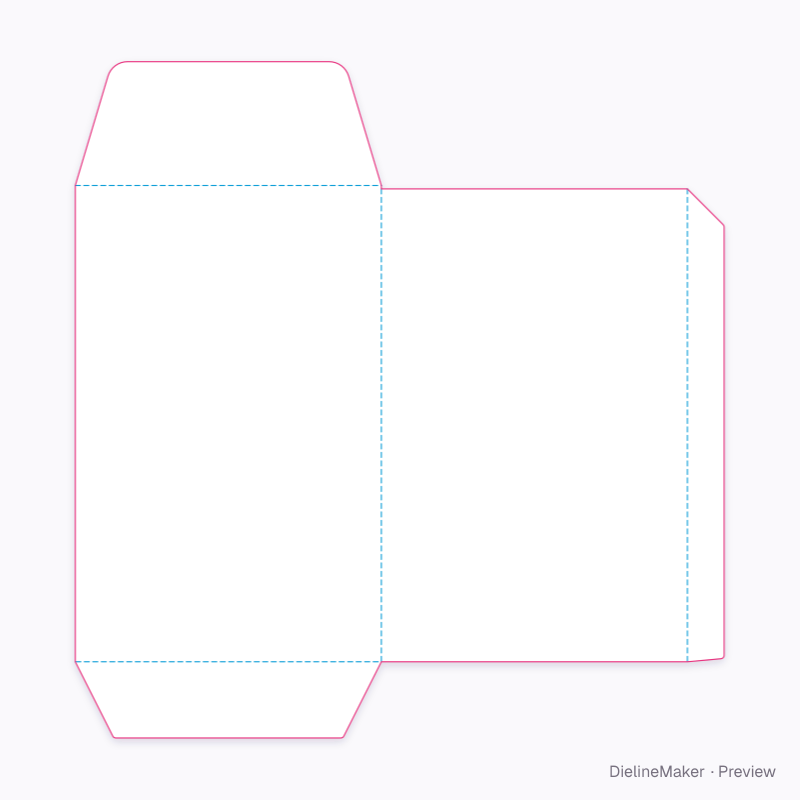

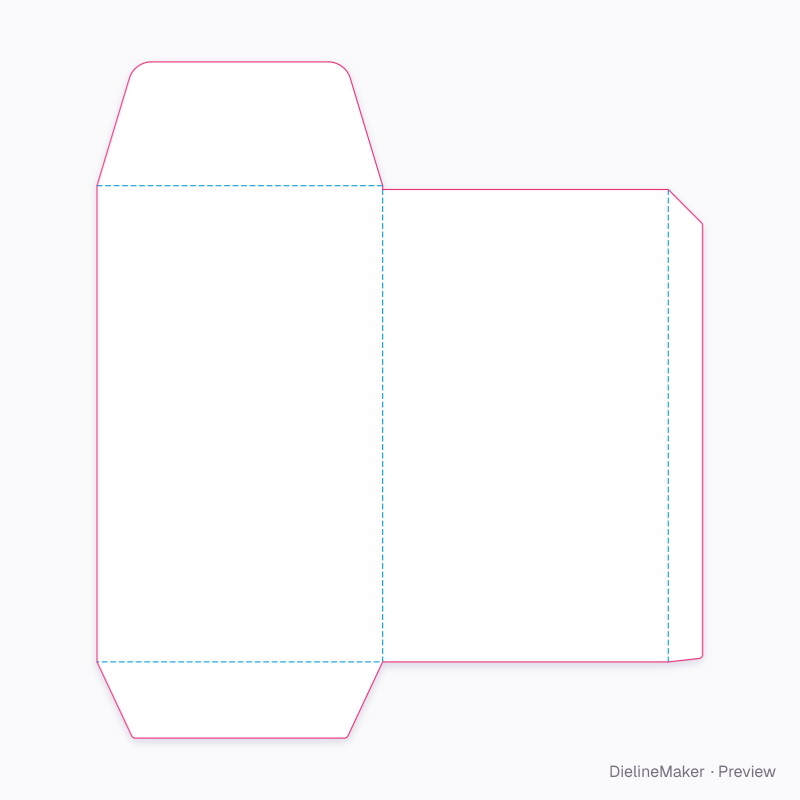

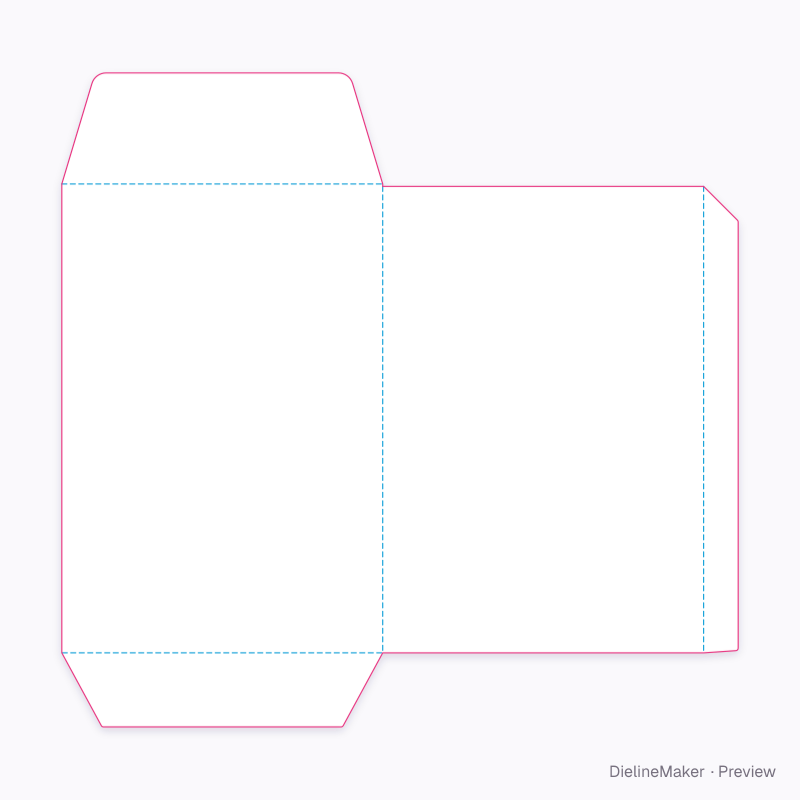

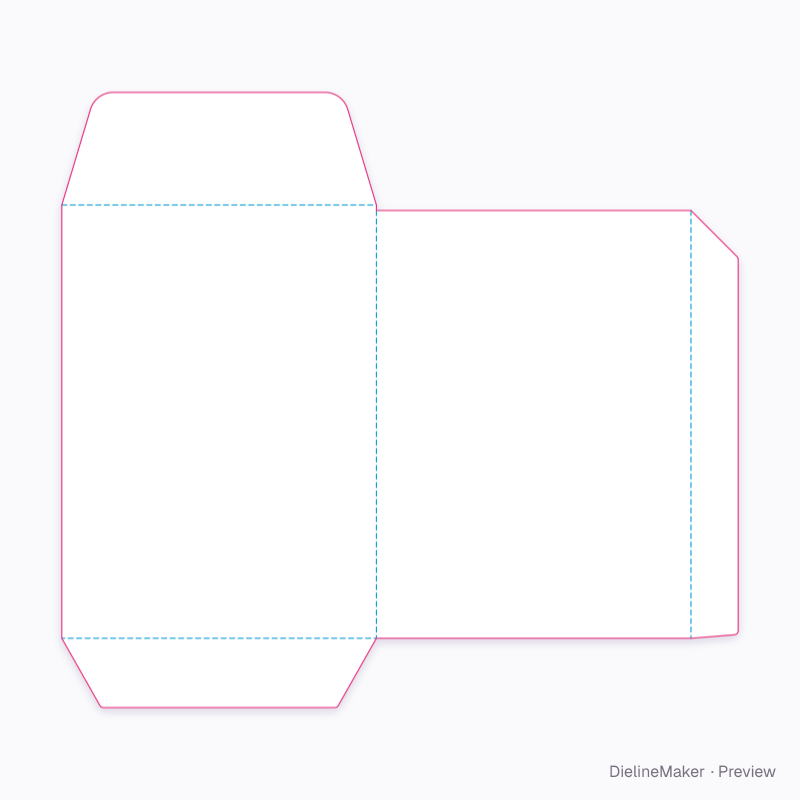

The seed packet family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset

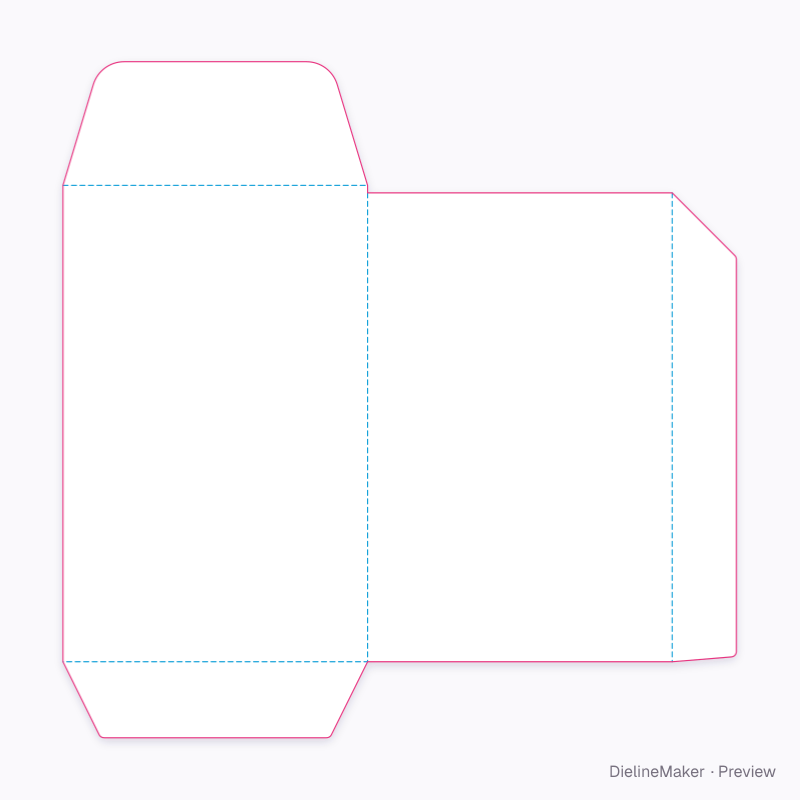

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this 50 × 75 mm sample packet yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
