A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementApparel & merchandise

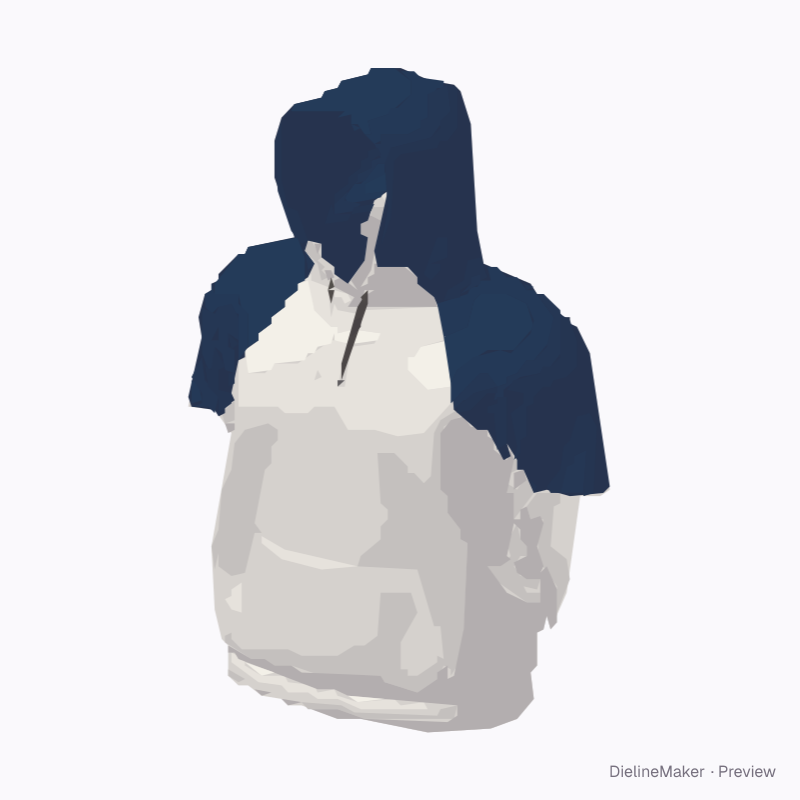

Short-sleeve raglan hoodie decoration template
A pullover hoodie with diagonal neck-to-underarm raglan seams, short wide sleeves with open bound ends and separately coloured sleeve panels, keeping the hood, drawcords and pouch. An optional cropped body ends in a bound hem. Optional left/right upper-arm artwork edits independently on both front and rear sleeve faces. Exported pieces are artwork presentation references; confirm production limits with the garment supplier. Sewing and grading patterns are separate. A ready-sized preset of the short-sleeve raglan hoodie — adjust the object dimensions and decoration area to preview your artwork at size.
Object size590 × 740 mm
Artwork area295 × 310.8 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Object width 590 · Object height 740 mm
- Size range
- Object width 324.5–944 · Object height 407–1184 mm
- Parts
- 2 parts — Front decoration, Back decoration
- Artwork area
- 0.155 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 5 options; the template and 3D preview follow each change.
- Separate sleeve artworkon / off
- Rear sleeve artworkon / off
- Object colour17 options
- Raglan sleeve colour5 options
- Cropped bodyon / off
