A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementApparel & merchandise

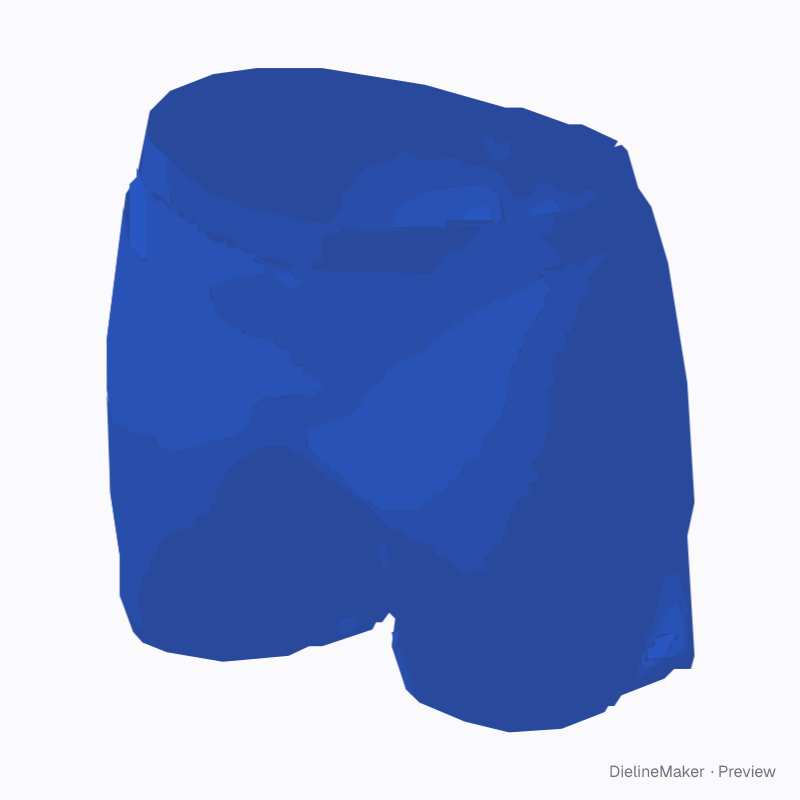

Shorts with front/rear leg artwork decoration template
Relaxed athletic shorts with a drawcord waistband and hemmed legs. Edit the left-front leg area and optionally add independent right-front and left/right rear leg artwork. Exports are supplier decoration references; sewing patterns are separate. A ready-sized preset of the athletic shorts — adjust the object dimensions and decoration area to preview your artwork at size.
Object size500 × 460 mm
Artwork area145 × 161 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Object width 500 · Object height 460 mm
- Size range
- Object width 275–800 · Object height 253–736 mm
- Parts
- 4 parts — Front decoration, Right leg decoration · front, Left leg decoration · rear, Right leg decoration · rear
- Artwork area
- 0.061 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 4 options; the template and 3D preview follow each change.
- Right + rear leg artworkon / off
- Object colour17 options
- Curved split side hemson / off
- Tied waist drawcordon / off
