DM-RINGBOX-01Apparel & merchandise
Single ring box decoration template

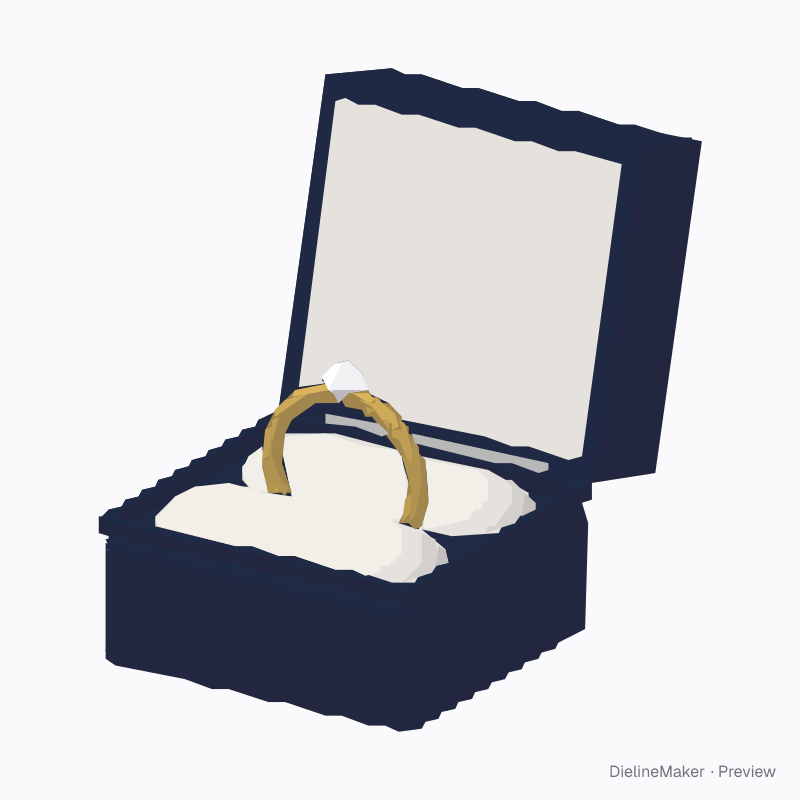

A hinged covered ring box whose padded split-bolster insert holds one ring or a pair upright in a narrow slot. Print the lid top and lining; open the lid to any angle. A ready-sized preset of the ring box with padded slotted insert — adjust the object dimensions and decoration area to preview your artwork at size.
Object size60 × 55 × 45 mm
Artwork area56 × 51 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-RINGBOX-01
- Object size
- Width 60 · Depth 55 · Closed height 45 mm
- Size range
- Width 40–160 · Depth 40–140 · Closed height 30–90 mm
- Parts
- 2 parts — Lid top, Lid lining
- Artwork area
- 0.005 m²
- Good for

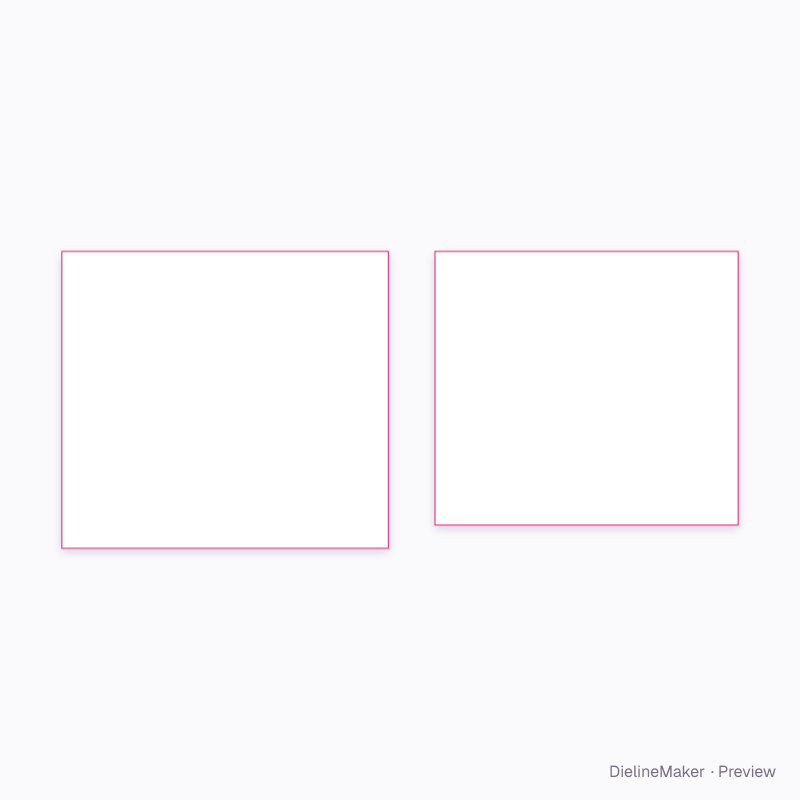

The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 5 options; the template and 3D preview follow each change.
- Rings showncount
- Lid opening°
- Cover4 options
- Insert3 options
- Print the lid liningon / off
The ring box with padded slotted insert family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this single ring box yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
