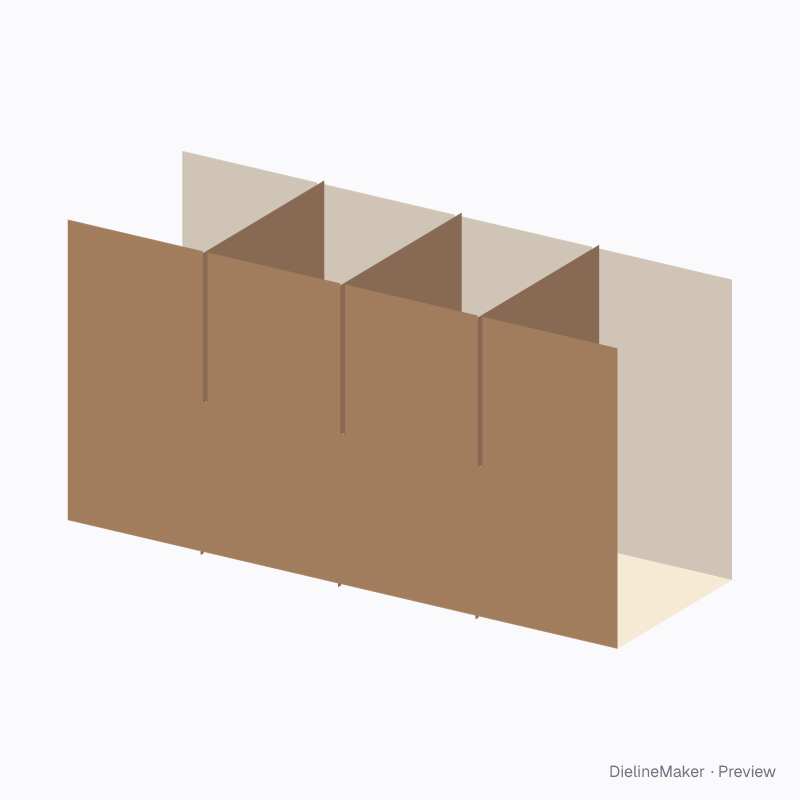

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SLOTTED-U-LINER-01Shipping
Four-cell slotted U liner dieline
A U-shaped liner whose tall walls carry matching top slots for drop-in cross dividers. A ready-sized preset of the slotted u-channel divider liner — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 100 × 150 mm
Outside303.2 × 103.2 × 153.2 mm
Flat blank300 × 400 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SLOTTED-U-LINER-01
- Inside size
- Length 300 · Width 100 · Wall height 150 mm
- Size range
- Length 80–800 · Width 40–400 · Wall height 30–400 mm
- Manufacturing
- 301.6 × 101.6 × 151.6 mm score to score · inside vs outside sizes
- Parts
- 4 parts — U liner, Cross divider, Cross divider, Cross divider
- Board area
- 0.166 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KB-fluteE-flute WKraft 350
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-SLOTTED-U-LINER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Liner floorU liner | 300 × 100 | L × W |
| Slotted wall ×2U liner | 300 × 150 | L × H |
| Cross dividerCross divider | 108 × 150 | – × H |
| Cross dividerCross divider | 108 × 150 | – × H |
| Cross dividerCross divider | 108 × 150 | – × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Cellscount
The slotted u-channel divider liner family
The same structure with sizes, boards and options set for a use.
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this four-cell slotted u liner yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
