A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-NOREN-01Apparel & merchandise
Four-panel shop entrance curtain decoration template

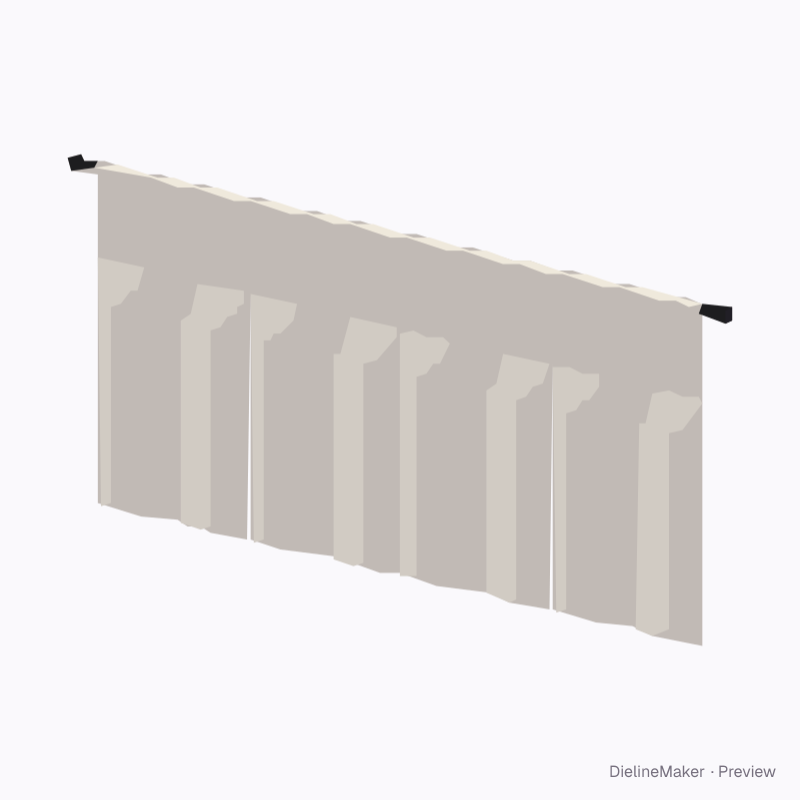

A doorway curtain hanging from a rod through its top heading, split into equal panels by slits running up from the hem. Set width, drop, panel count and slit length; print the whole front. A ready-sized preset of the split doorway curtain (noren) — adjust the object dimensions and decoration area to preview your artwork at size.
Object size1800 × 25 × 900 mm
Artwork area1800 × 900 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-NOREN-01
- Object size
- Curtain width 1800 · Rod diameter 25 · Curtain drop 900 mm
- Size range
- Curtain width 300–2400 · Rod diameter 8–40 · Curtain drop 300–2400 mm
- Parts
- One artwork area
- Artwork area
- 1.608 m²
- Good for

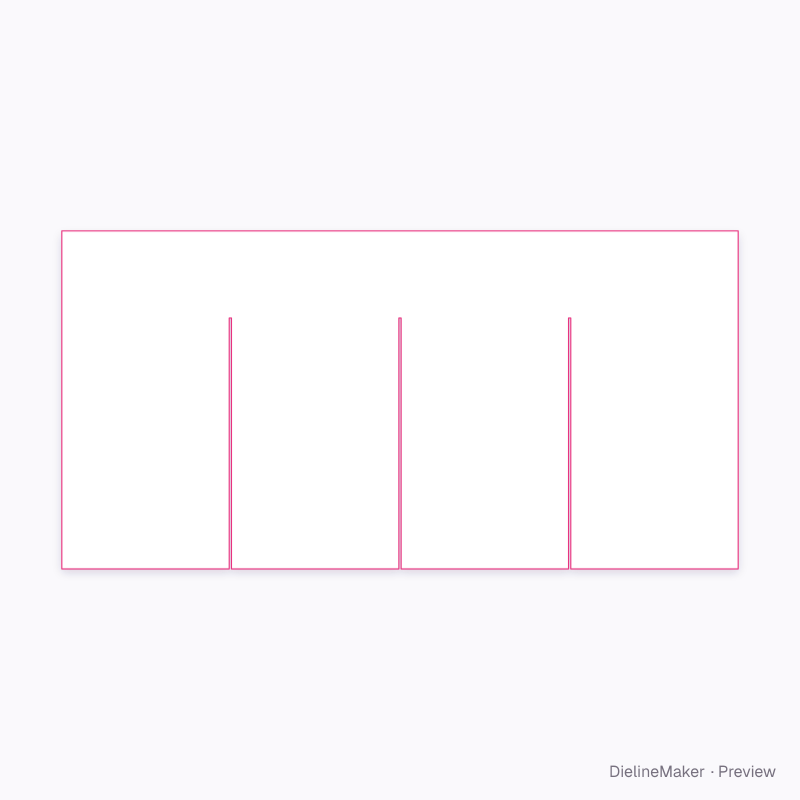

The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 4 options; the template and 3D preview follow each change.
- Panelscount
- Slit length%
- Hanging rodon / off
- Rod3 options

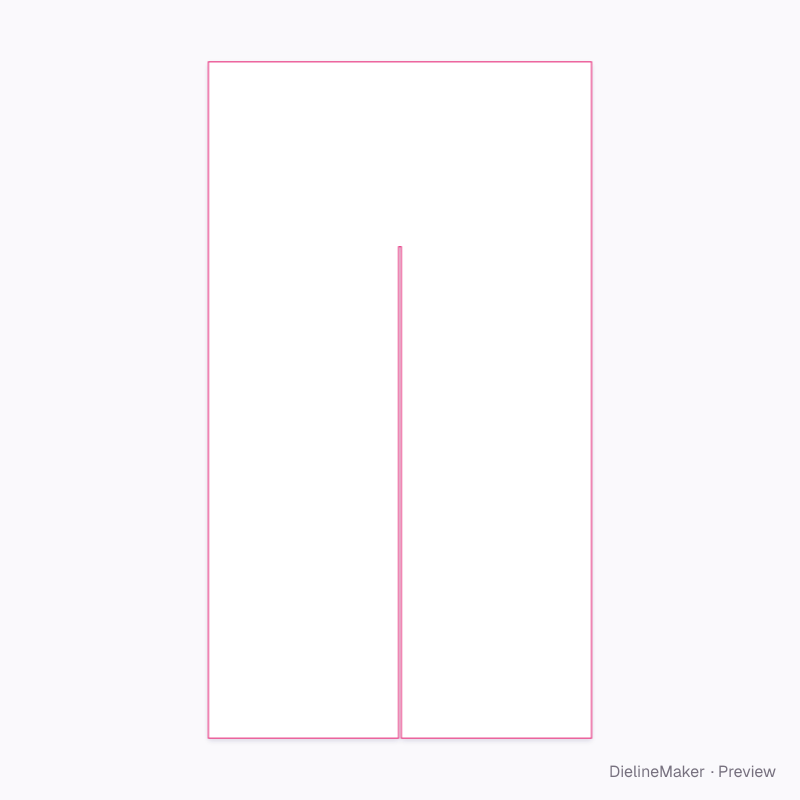

The split doorway curtain (noren) family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this four-panel shop entrance curtain yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
