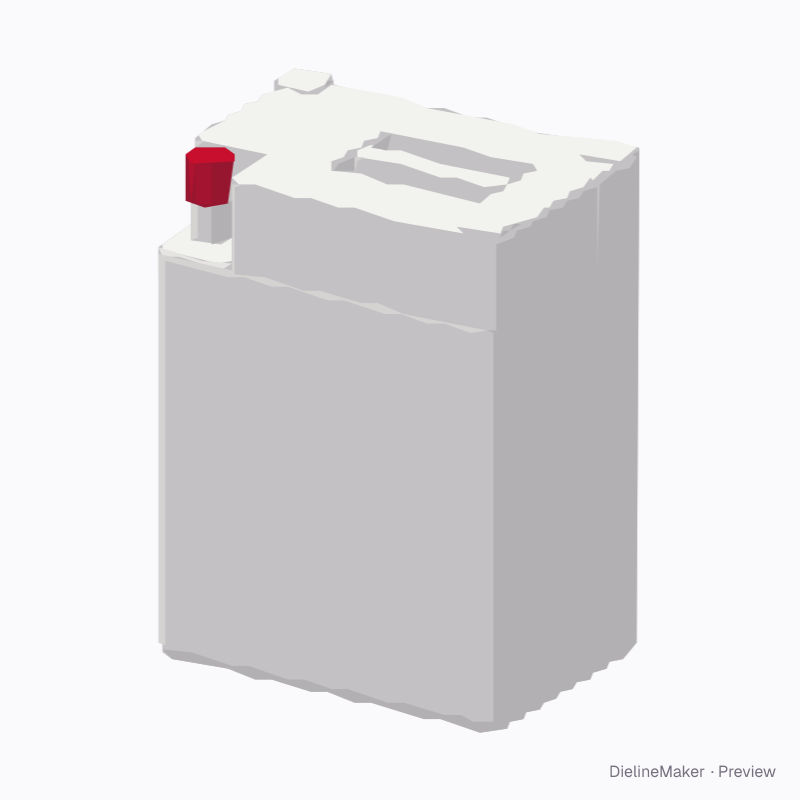

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-JERRYCAN-01Labels
Stackable jerrycan dieline
A rectangular plastic jerrycan with the grip recessed into the top for stacking, a short top grip or an open bridge handle; corner neck, corner bosses and base feet. Print the front and back panels. A parametric template — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside300 × 200 × 400 mm
Outside300 × 200 × 400 mm
Flat blank262 × 212.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-JERRYCAN-01
- Inside size
- Width 300 · Depth 200 · Height to top 400 mm
- Size range
- Width 80–450 · Depth 50–320 · Height to top 100–600 mm
- Manufacturing
- 300 × 200 × 400 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Front panel, Back panel
- Board area
- 0.112 m² · about 9 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
