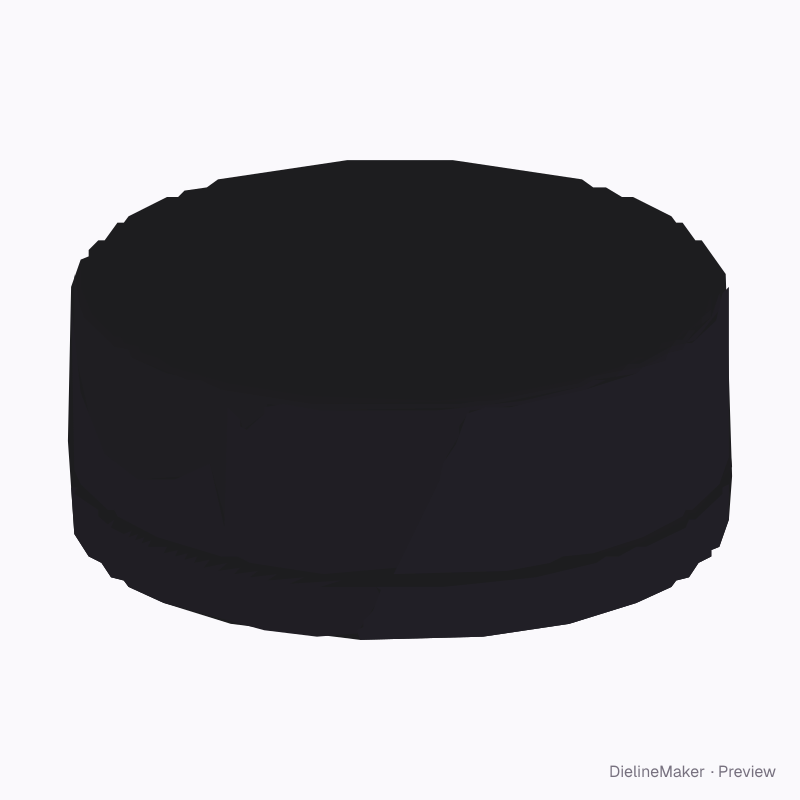

A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CAP-01Apparel & merchandise
Smooth screw cap 38 mm decoration template
A loose bottle closure on its own: crimped crown (beer) cap, ribbed screw cap with tamper band, or smooth screw cap. Set the diameter, neck and height; print the top and the side band. A ready-sized preset of the standalone bottle cap — adjust the object dimensions and decoration area to preview your artwork at size.
Object size41 × 38 × 16 mm
Artwork area128.8 × 11.2 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-CAP-01
- Object size
- Cap diameter 41 · Neck diameter (open underside) 38 · Cap height 16 mm
- Size range
- Cap diameter 15–120 · Neck diameter (open underside) 10–110 · Cap height 4–60 mm
- Parts
- 2 parts — Top disc, Side band (wraps round)
- Artwork area
- 0.003 m²
- Good for
The flat artwork area

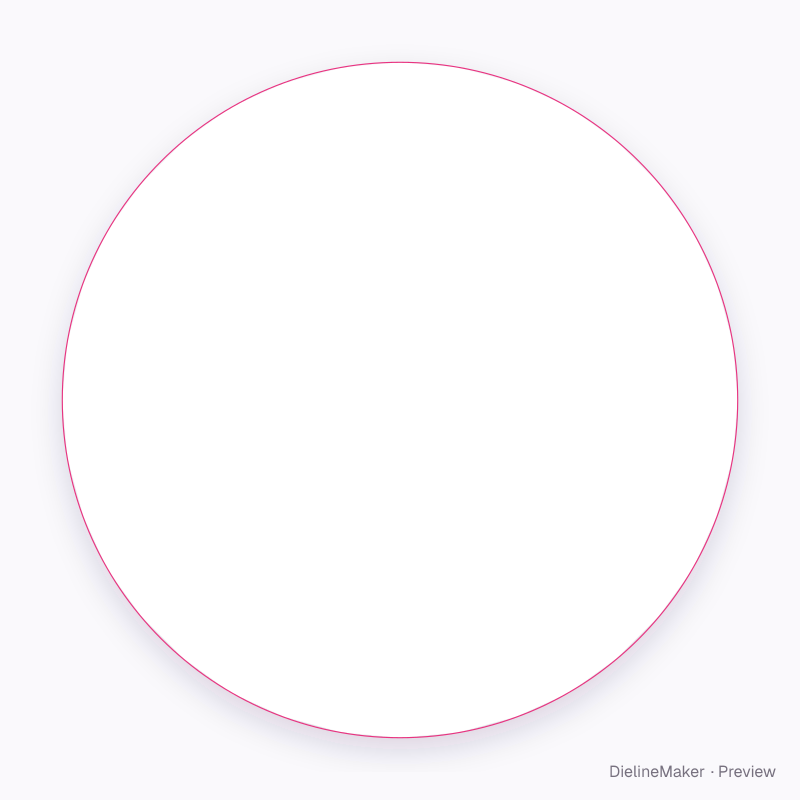

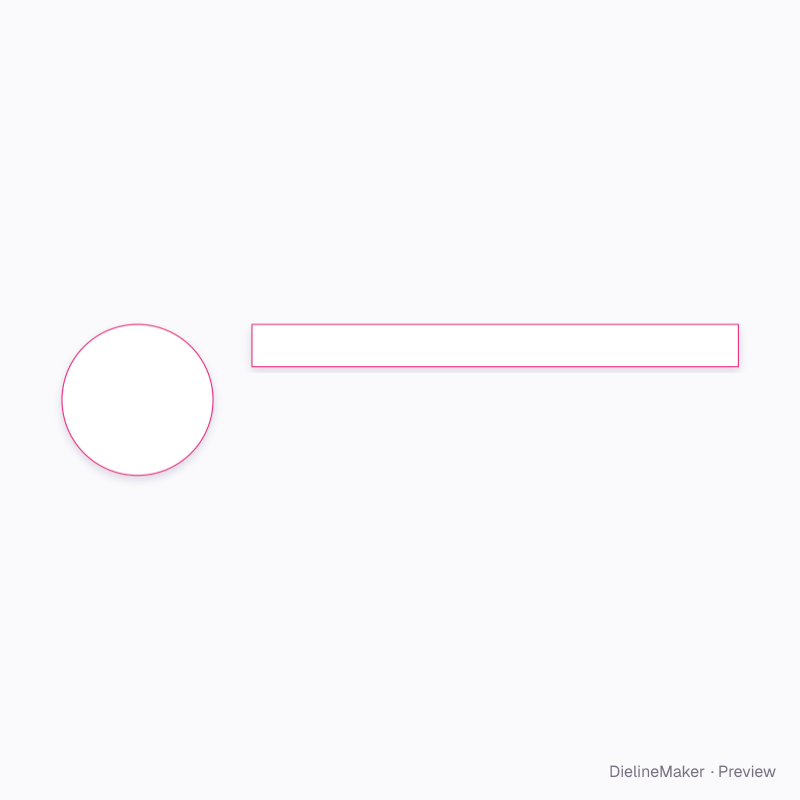

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 3 options; the template and 3D preview follow each change.
- Cap type3 options
- Lying upside downon / off
- Cap5 options
The standalone bottle cap family
The same model with sizes and artwork options ready to customize.
Preset
Preset
