A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PILL-01Apparel & merchandise

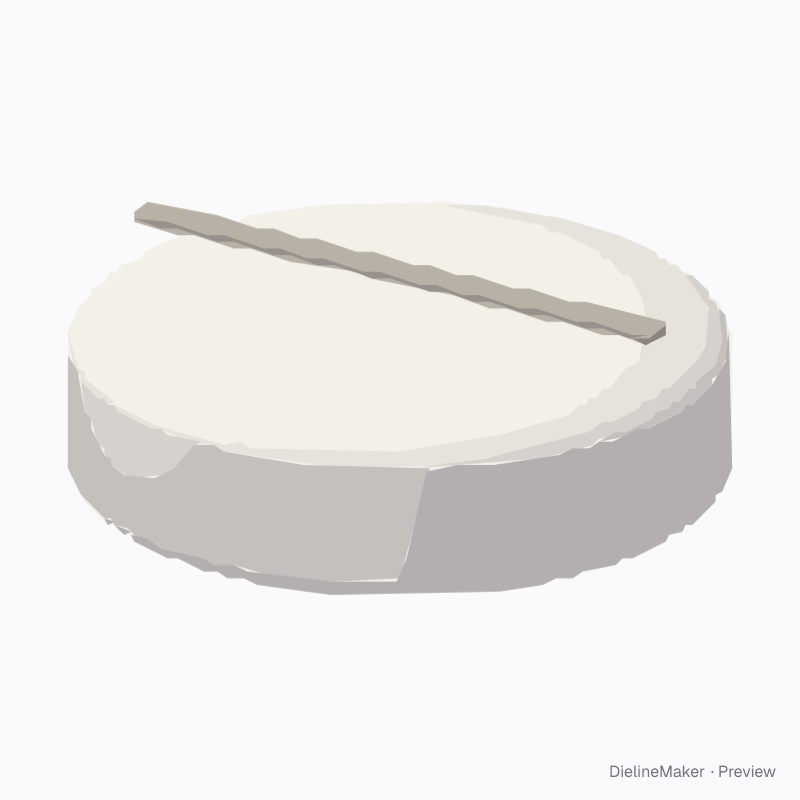

Round scored tablet decoration template
A single pill on its own: two-tone hard capsule, round scored tablet or oblong caplet. Set its length, width and thickness; print the imprint band or the tablet face. A ready-sized preset of the pill, tablet or capsule — adjust the object dimensions and decoration area to preview your artwork at size.
Object size10 × 10 × 4 mm
Artwork area9 × 8.9 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-PILL-01
- Object size
- Length (or tablet diameter) 10 · Width / capsule diameter 10 · Tablet thickness 4 mm
- Size range
- Length (or tablet diameter) 4–30 · Width / capsule diameter 3–20 · Tablet thickness 2–10 mm
- Parts
- One artwork area
- Artwork area
- 0.000 m²
- Good for

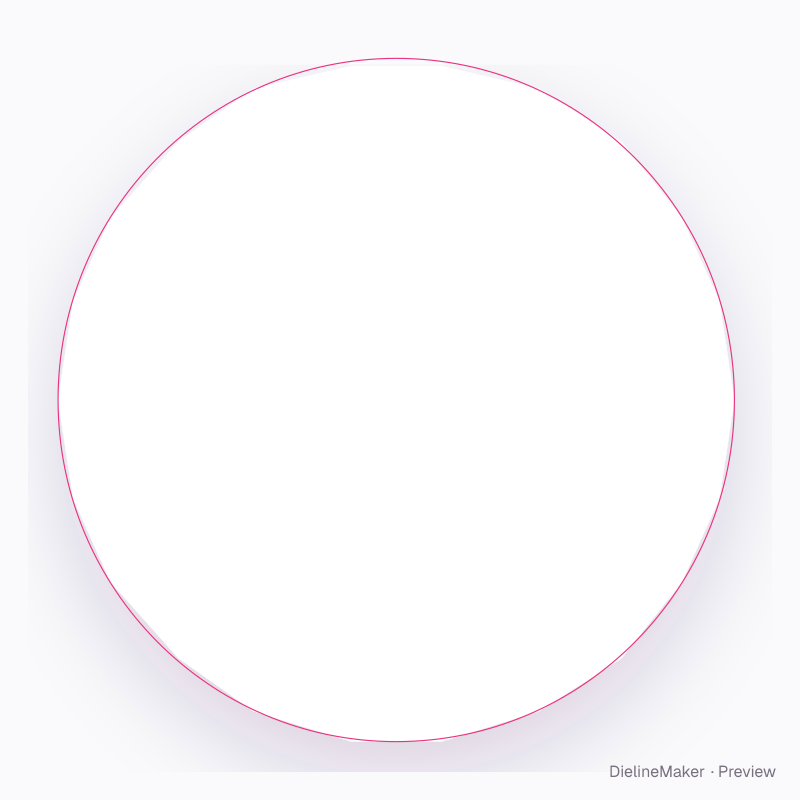

The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 4 options; the template and 3D preview follow each change.
- Pill type3 options
- Score lineon / off
- Cap / tablet colour5 options
- Capsule body colour5 options

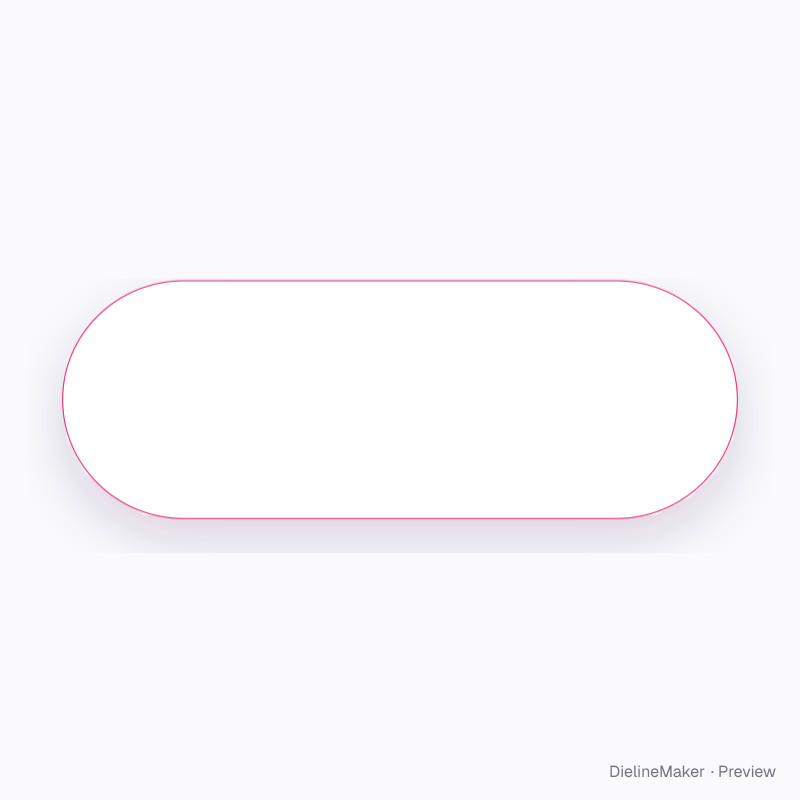

The pill, tablet or capsule family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this round scored tablet yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
