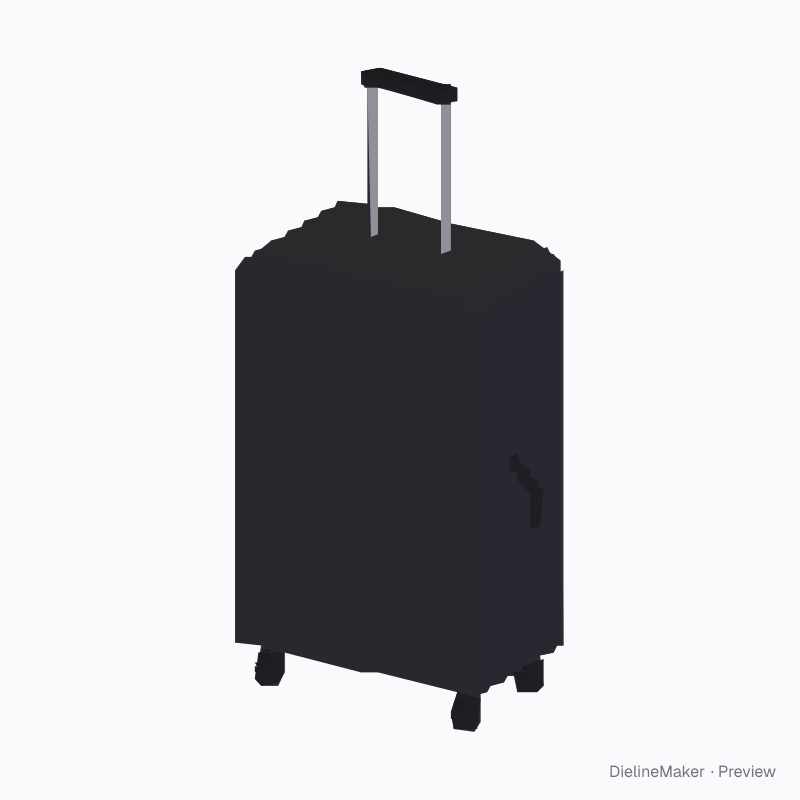

A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-LUGCOVER-01Apparel & merchandise
Fitted suitcase cover decoration template
A fitted printed cover over a wheeled suitcase: front and back panels and a band over the sides and top with slots for the handles, wheels exposed. Sized for cabin, medium and large cases. A parametric template — adjust the object dimensions and decoration area to preview your artwork at size.
Object size400 × 240 × 600 mm
Artwork area1575 × 248 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-LUGCOVER-01
- Object size
- Suitcase width 400 · Suitcase depth 240 · Case height (without wheels) 600 mm
- Size range
- Suitcase width 300–560 · Suitcase depth 180–340 · Case height (without wheels) 450–820 mm
- Parts
- 3 parts — Front panel, Back panel, Side and top band (handle slots)
- Artwork area
- 0.884 m²
- Good for

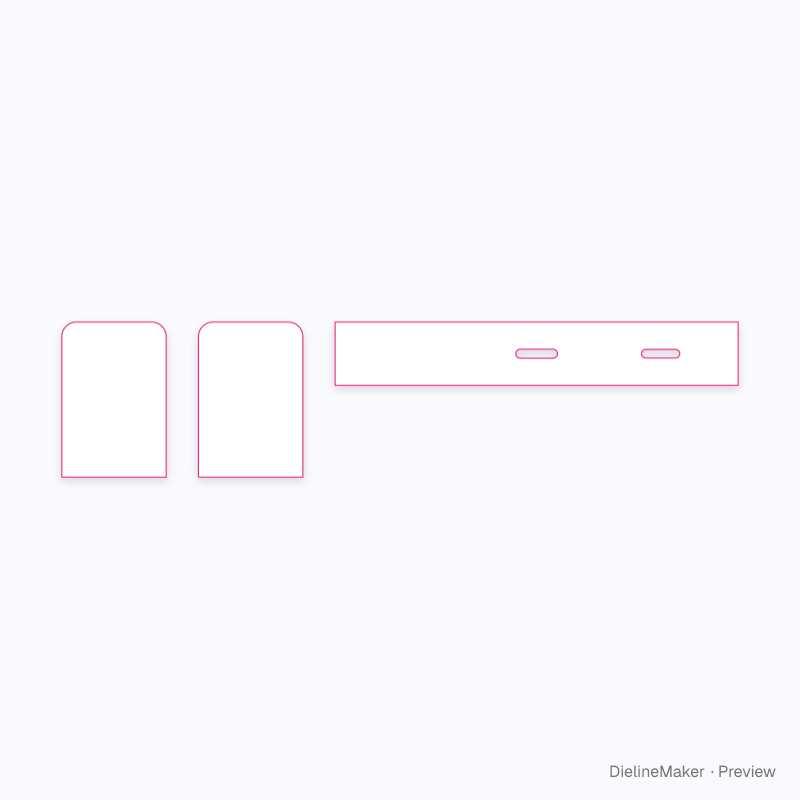

The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 1 option; the template and 3D preview follow each change.
- Case colour3 options

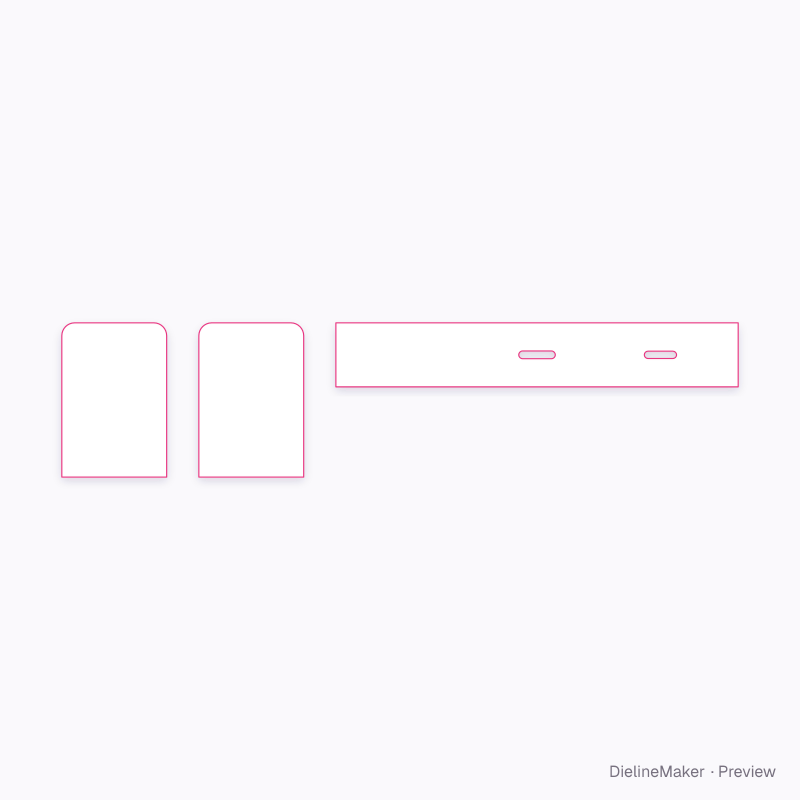

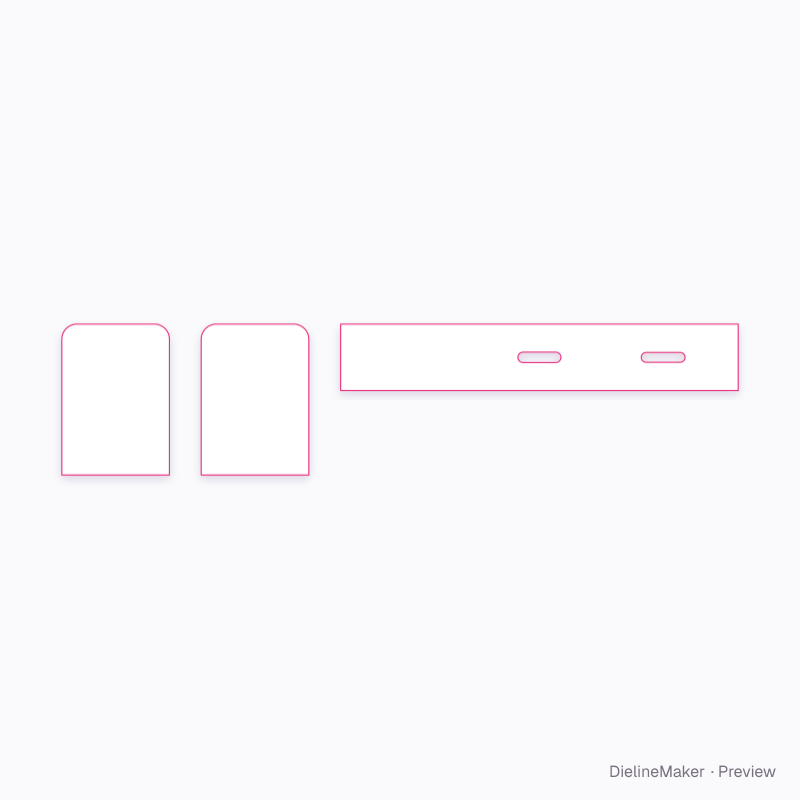

Ready-sized fitted suitcase cover presets
The same model with sizes and artwork options ready to customize.
- Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this fitted suitcase cover yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
