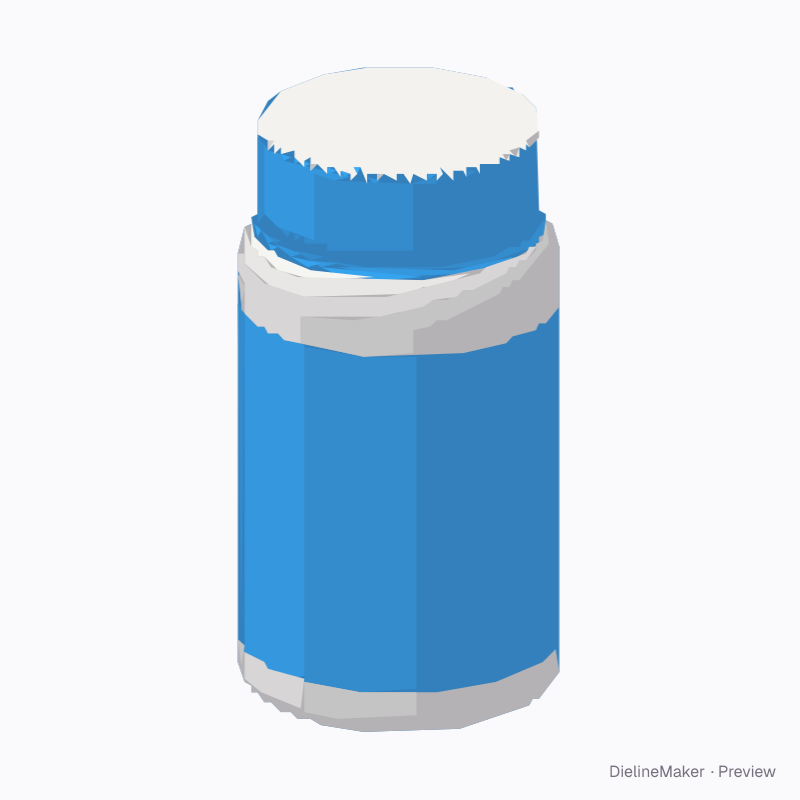

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Medium capsule bottle label template
62 × 115 mm starting dimensions. Adjust to your actual container or product. A ready-sized preset of the supplement bottle — adjust the object dimensions and decoration area to preview your artwork at size.
Object sizeØ 62 × 115 mm
Artwork area201.3 × 69.5 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Diameter 62 · Height to neck top 115 mm
- Size range
- Diameter 35–110 · Height to neck top 50–200 mm
- Parts
- 2 parts — Label, Shrink band
- Artwork area
- 0.018 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Perforation
- Artwork boundary
- Glue area
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 13 options; the template and 3D preview follow each change.
- Wrap coverage%
- Overlapmm
- Label heightmm
- Label from basemm
- Body4 options
- Molded body bands3 options
- Longitudinal relief3 options
- Cap colour9 options
- Contents4 options
- Closure2 options
- Shrink bandon / off
- Band below capmm
- Band perforation3 options
The supplement bottle family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this medium capsule bottle yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
