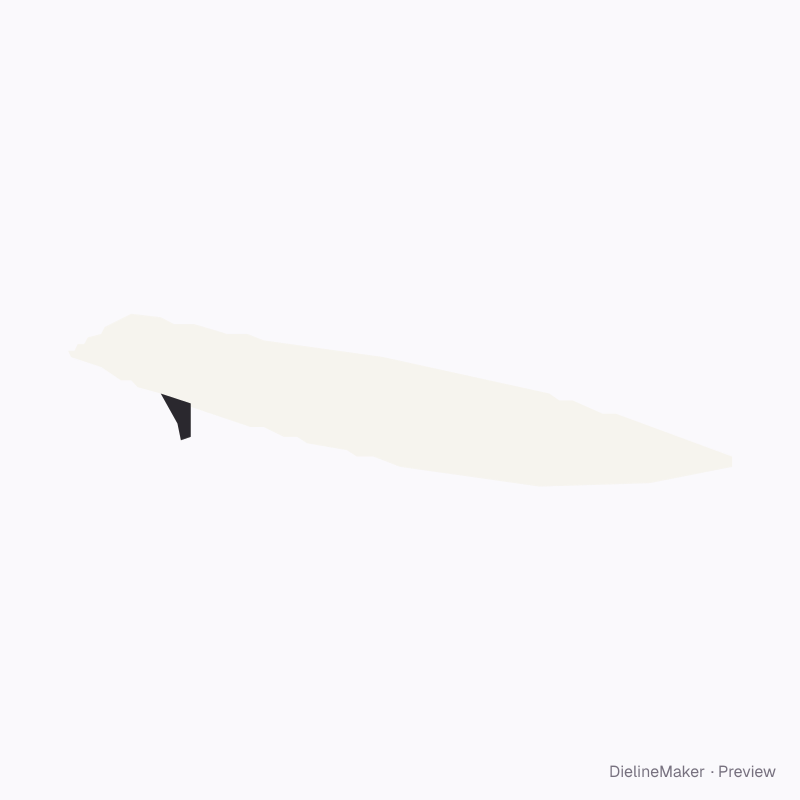

A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SURFBOARD-01Apparel & merchandise
Fish 5'8" decoration template
A foiled surfboard with rocker, rounded rails and fins in shortboard, longboard, hybrid or fish outline, with an optional segmented tail traction pad. Print the deck, the bottom and the pad. A ready-sized preset of the surfboard with fins and traction pad — adjust the object dimensions and decoration area to preview your artwork at size.
Object size1730 × 530 × 65 mm
Artwork area530 × 1730 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-SURFBOARD-01
- Object size
- Length 1730 · Width 530 · Thickness 65 mm
- Size range
- Length 1500–3200 · Width 400–620 · Thickness 45–90 mm
- Parts
- 2 parts — Deck, Bottom
- Artwork area
- 1.426 m²
- Good for

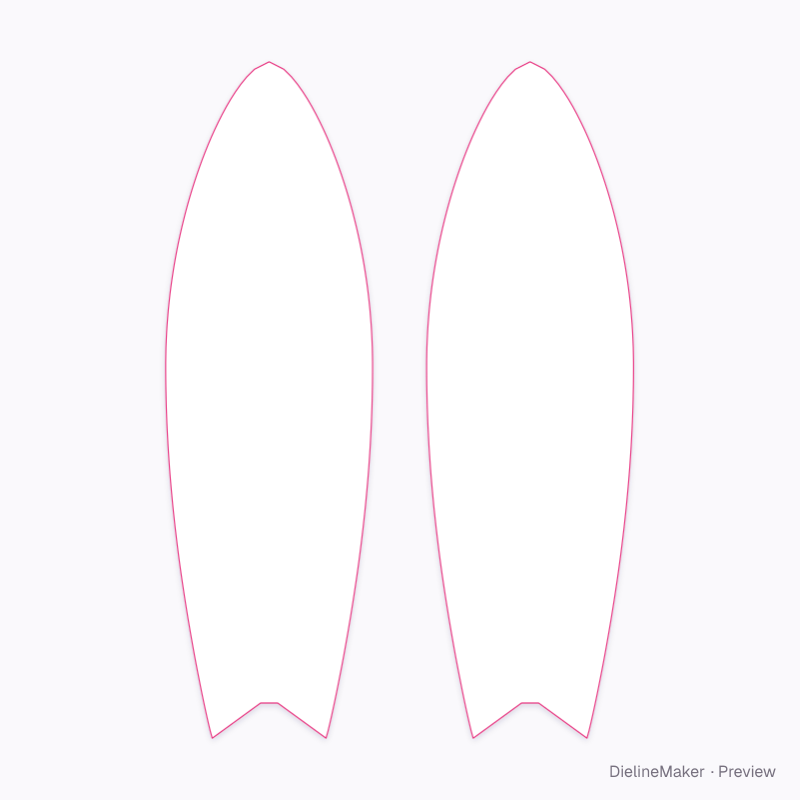

The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 5 options; the template and 3D preview follow each change.
- Outline4 options
- Fins4 options
- Print the bottomon / off

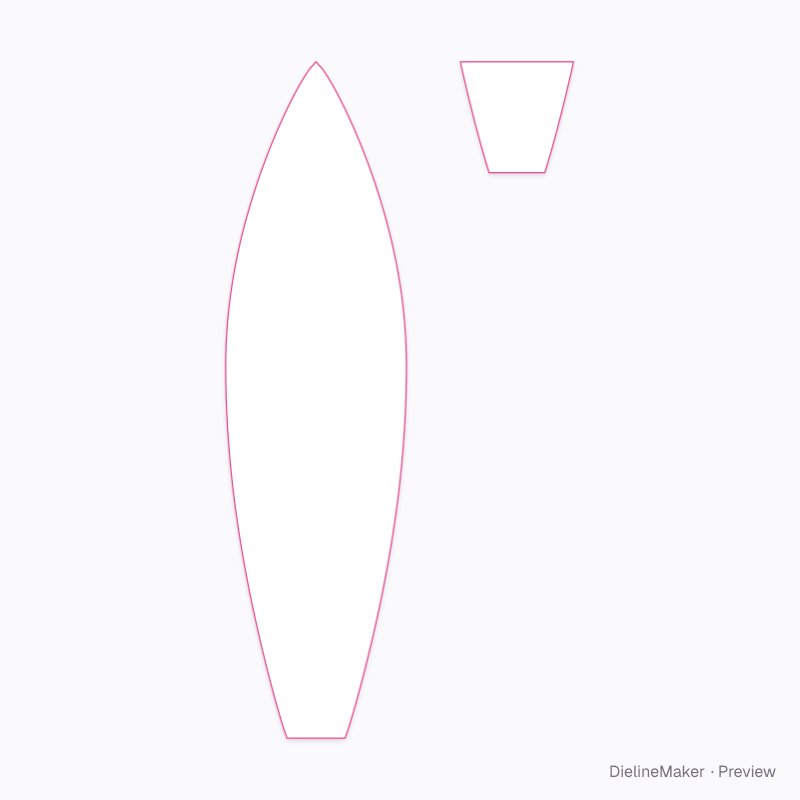

- Tail traction padon / off
- Pad colour4 options
The surfboard with fins and traction pad family
The same model with sizes and artwork options ready to customize.

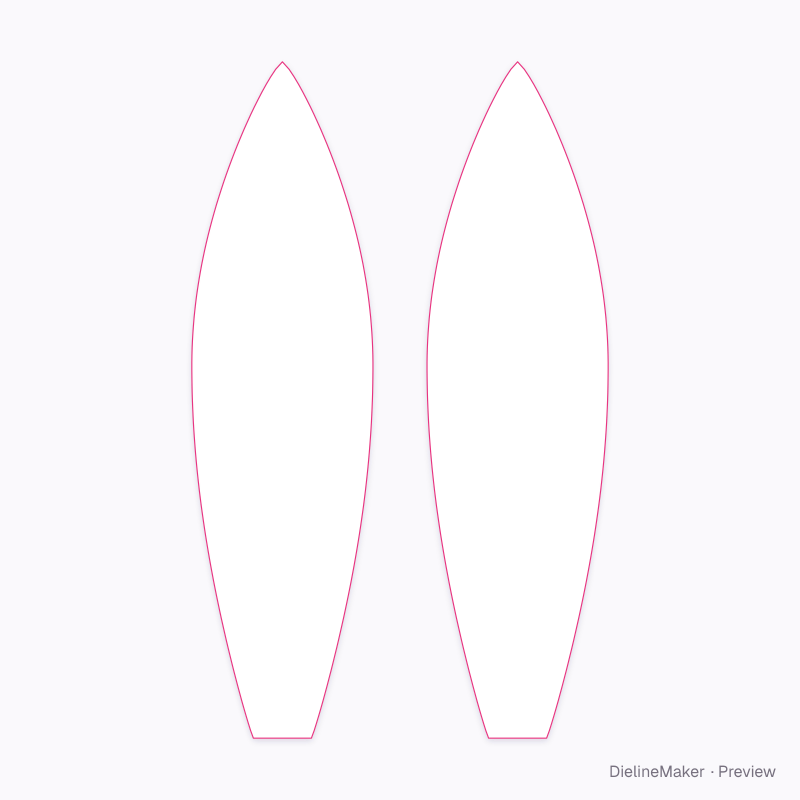

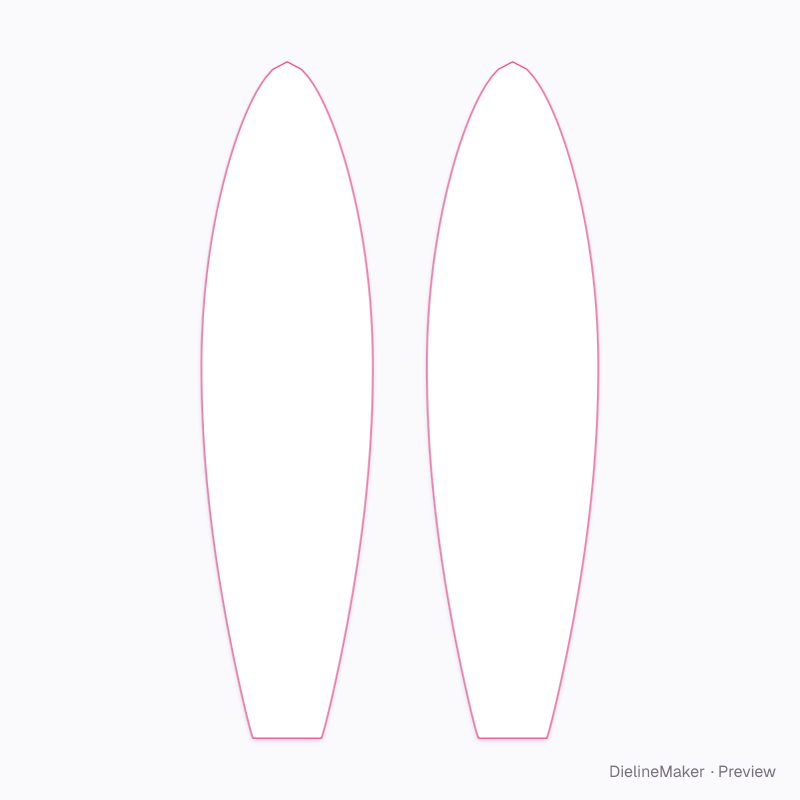

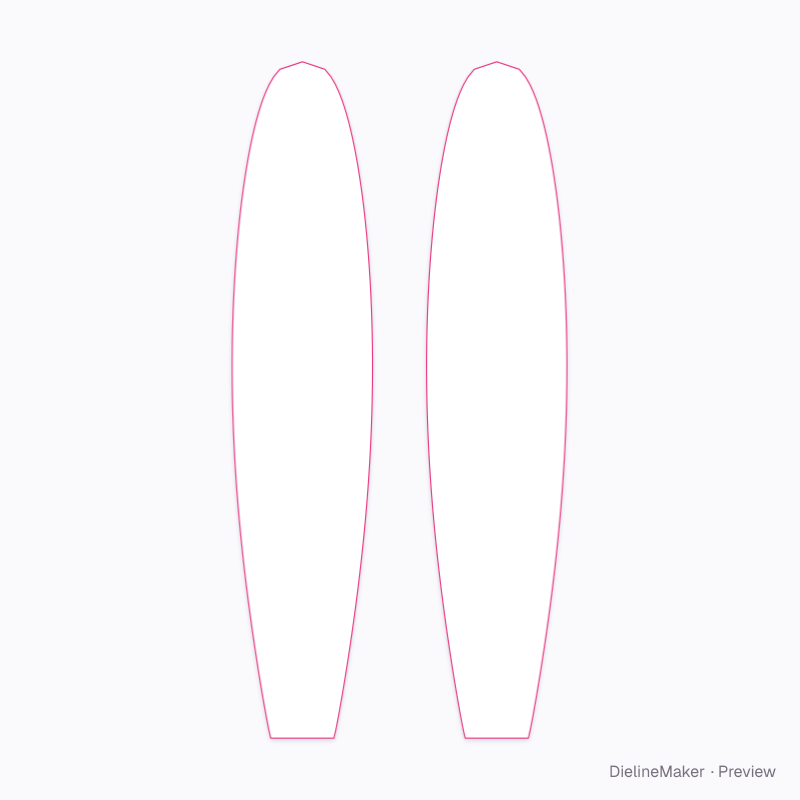

Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this fish 5'8" yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
