DM-TAPERED-CARRIER-BAG-01Bags & pouches

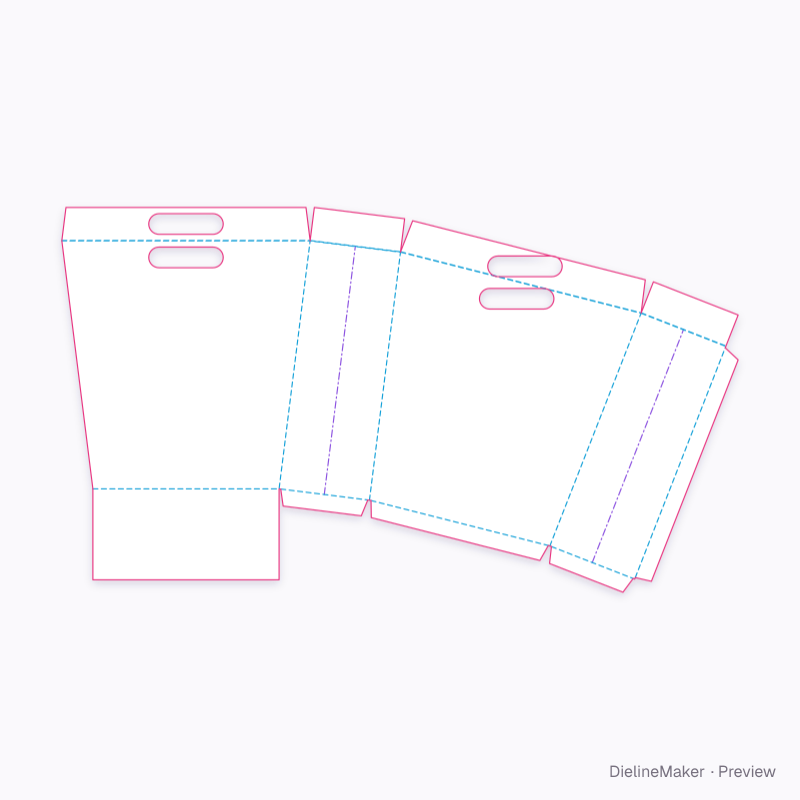

Tapered gift bag with angled gussets dieline

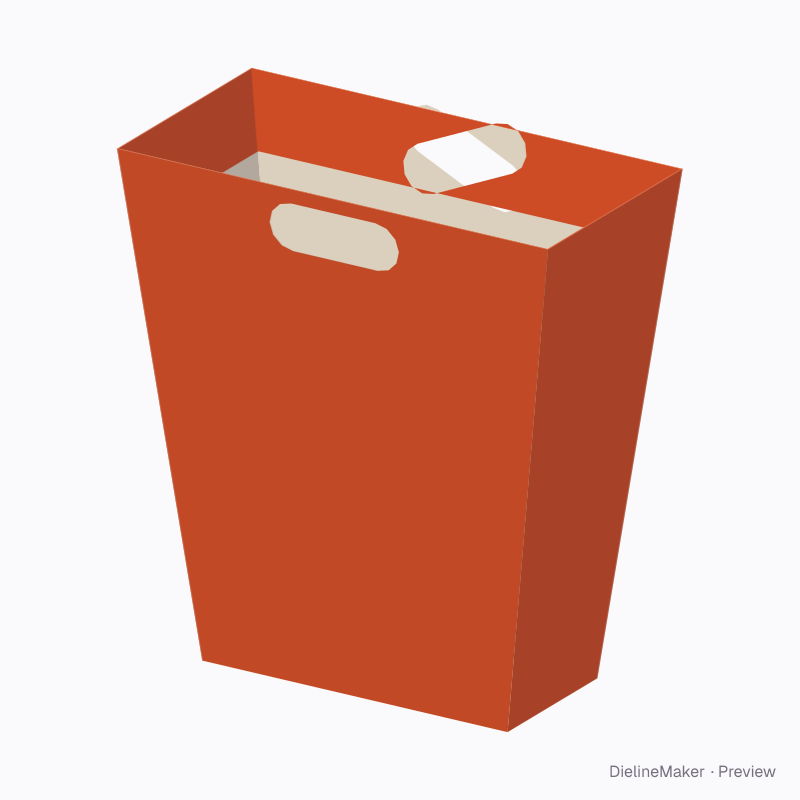

A carrier bag whose broad faces narrow toward the base, with angled gussets, a turned-in rim and die-cut hand slots. A ready-sized preset of the tapered paper carrier bag — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside240 × 120 × 260 mm
Outside240.9 × 120.9 × 260.9 mm
Flat blank695.2 × 446 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-TAPERED-CARRIER-BAG-01
- Inside size
- Mouth width 240 · Mouth gusset 120 · Height 260 mm
- Size range
- Mouth width 100–600 · Mouth gusset 40–250 · Height 100–700 mm
- Manufacturing
- 240.5 × 120.5 × 260.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.213 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- Kraft 350SBS 300Paper 170SBS 350SBS 18 pt
- Good for
The flat dieline

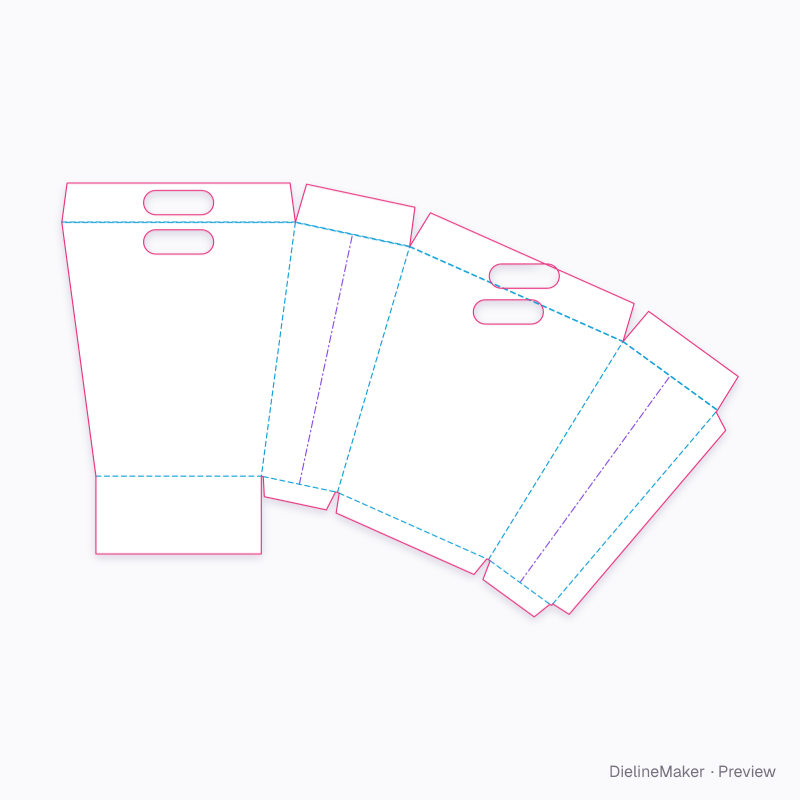

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-TAPERED-CARRIER-BAG-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 240 × 260.8 | L × – |
| Right gusset | 119.7 × 263.1 | – |
| Base | 170 × 80 | – |
| Front rim inner ply | 240 × 40.1 | L × – |
| Back | 237.9 × 263.1 | – |
| Glue flap ×2 | 76 × 20 | – |
| Right gusset rim inner ply | 120 × 40.4 | W × – |
| Left gusset | 119.7 × 263.1 | – |
| Glue flap | 166 × 20 | – |
| Back rim inner ply | 240 × 40.1 | L × – |
| Glue flap | 19.8 × 259.1 | – |
| Left gusset rim inner ply | 120 × 40.4 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Base widthmm
- Base gussetmm
- Top turn-inmm
- Die-cut hand slotson / off
