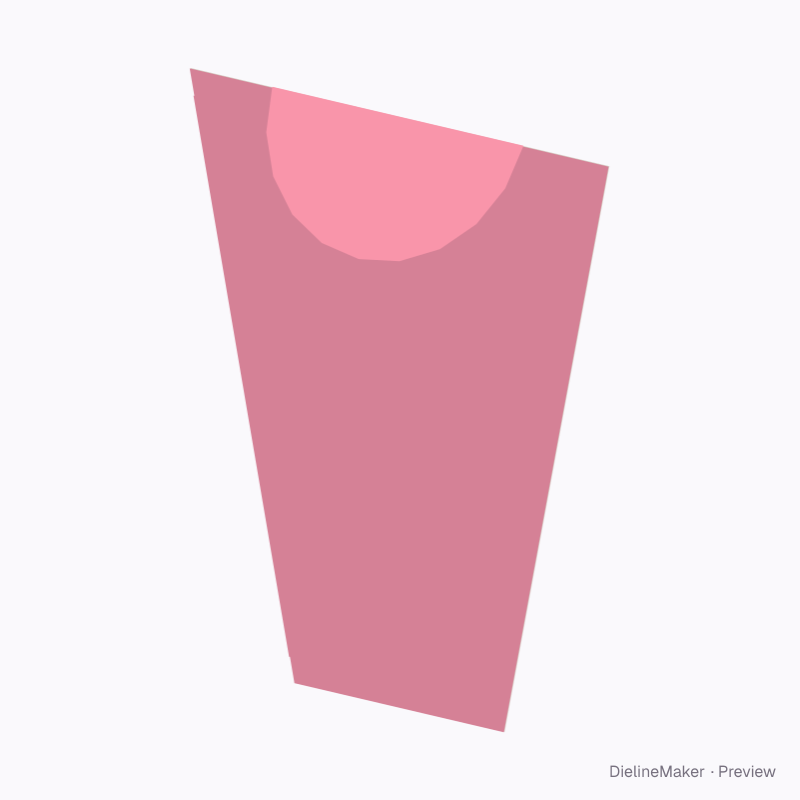

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SERVING-POCKET-01Food
Crepe serving pocket 140×180 dieline
A flat tapered pocket glued at its side margins, with a round tongue that folds over the open top. A ready-sized preset of the tapered serving pocket — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside140 × 180 mm
Outside140.8 × 180.8 mm
Flat blank160.5 × 401.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SERVING-POCKET-01
- Inside size
- Top width 140 · Height 180 mm
- Size range
- Top width 50–300 · Height 60–350 mm
- Manufacturing
- 140.4 × 180.4 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.045 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- SBS 300Kraft 350Paper 170SBS 350SBS 18 pt
- Good for

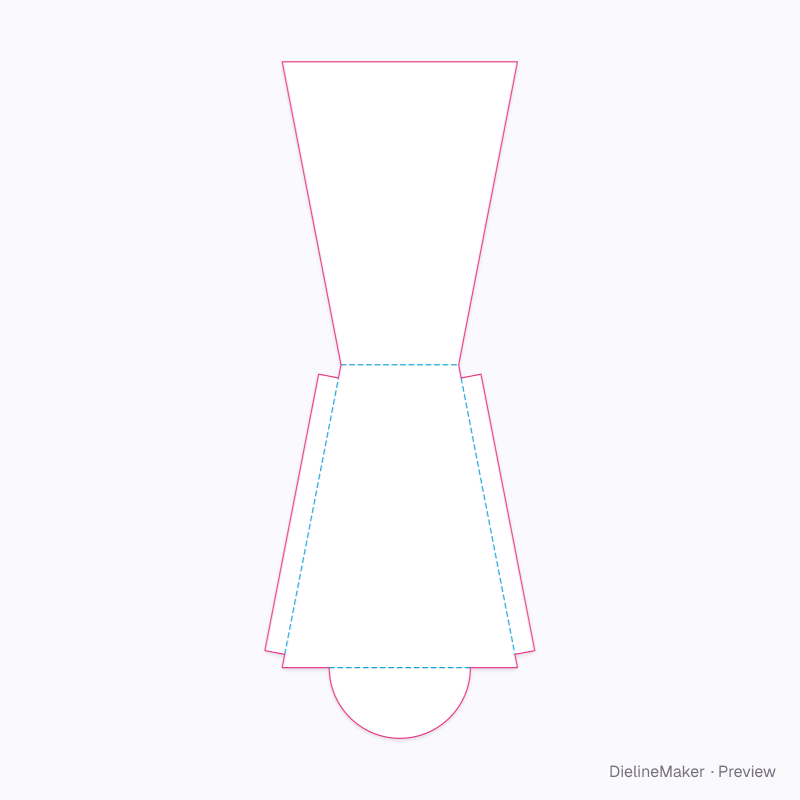

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-SERVING-POCKET-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.42 mm for SBS white board 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 140 × 180 | L × H |
| Back | 70 × 180 | – × H |
| Glue margin ×2 | 12 × 167.4 | – |
| Round tongue | 84 × 41.8 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Bottom widthmm
The tapered serving pocket family
The same structure with sizes, boards and options set for a use.
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this crepe serving pocket 140×180 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
