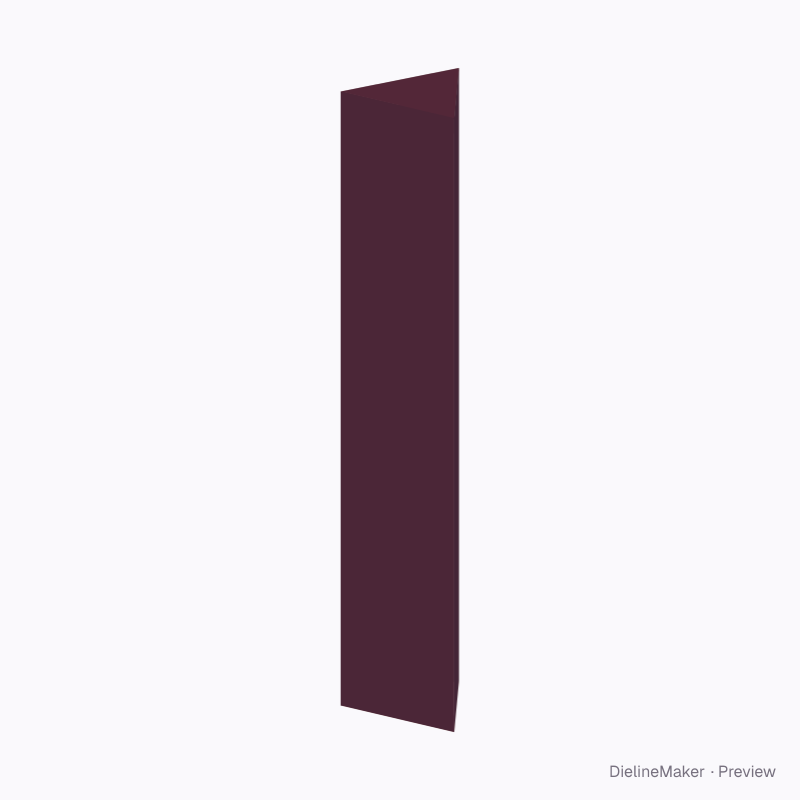

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-TRIANGLE-BOX-01Shapes
Large nougat prism dieline
Long triangular carton for a 360 g nougat or chocolate bar. A ready-sized preset of the triangle box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside60 × 60 × 300 mm
Outside61 × 61 × 301 mm
Flat blank194.1 × 414.7 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-TRIANGLE-BOX-01
- Inside size
- Front width 60 · Side width 60 · Length 300 mm
- Size range
- Front width 25–250 · Side width 20–300 · Length 30–400 mm
- Manufacturing
- 60.5 × 60.5 × 300.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.066 m² · about 5 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-TRIANGLE-BOX-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 60.9 × 300.5 | L + T·cot(α/2) × H + T |
| Left side | 60.9 × 300.5 | W + T/2·(tan α + cot(α/2)) × H + T |
| Right side | 60.4 × 300.5 | left − T × H + T |
| Glue flap | 12 × 300.5 | – × H + T |
| Top end | 60.9 × 52.7 | – |
| Tuck ×2 | 15.2 × 59.9 | – |
| Bottom end | 60.4 × 52.7 | – |
| Top dust flap | 60.4 × 25.5 | – |
| Bottom dust flap | 60.9 × 25.5 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Construction2 options
- Tuck depthmm
- Slit lockon / off
- Front windowon / off
The triangle box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this large nougat prism yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
