Parametric structureShapes

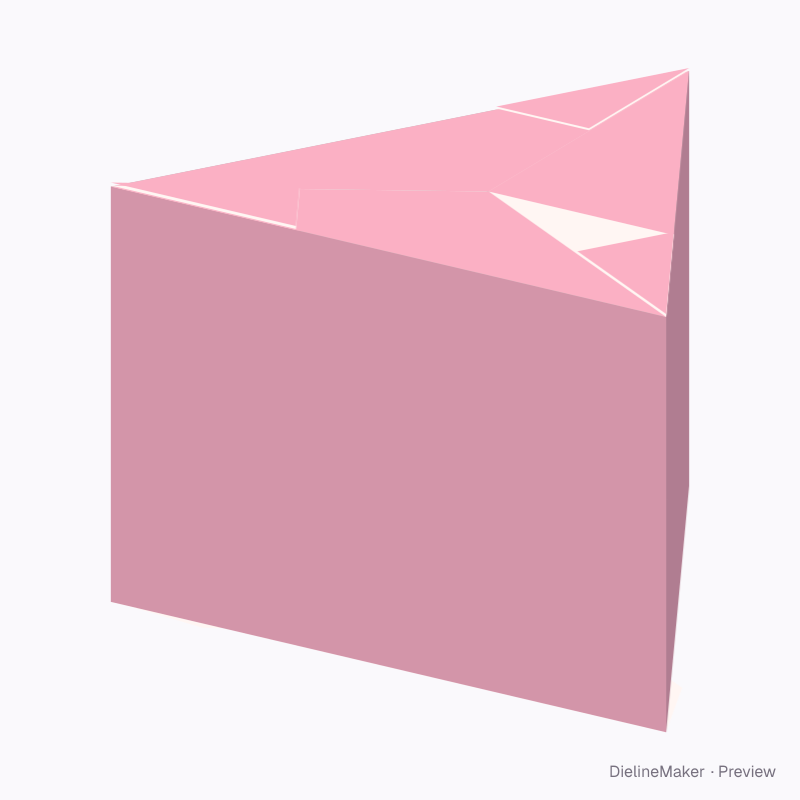

Triangular twist favour dieline
A triangular tube with a connected twist lid. Extra scored sink corners return the web and lip points inside the triangular opening; layered underlaps close the top and glued triangular sectors form the base. A ready-sized preset of the triangular sink-gusset carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 55 × 65 mm
OutsideØ 55.3 × 65.3 mm
Flat blank297.4 × 122.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Inside diameter across flats 55 · Inside body height 65 mm
- Size range
- Inside diameter across flats 30–500 · Inside body height 20–500 mm
- Manufacturing
- Ø 55.2 × 65.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.033 m² · about 15 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300Kraft 350SBS 18 pt
- Good for

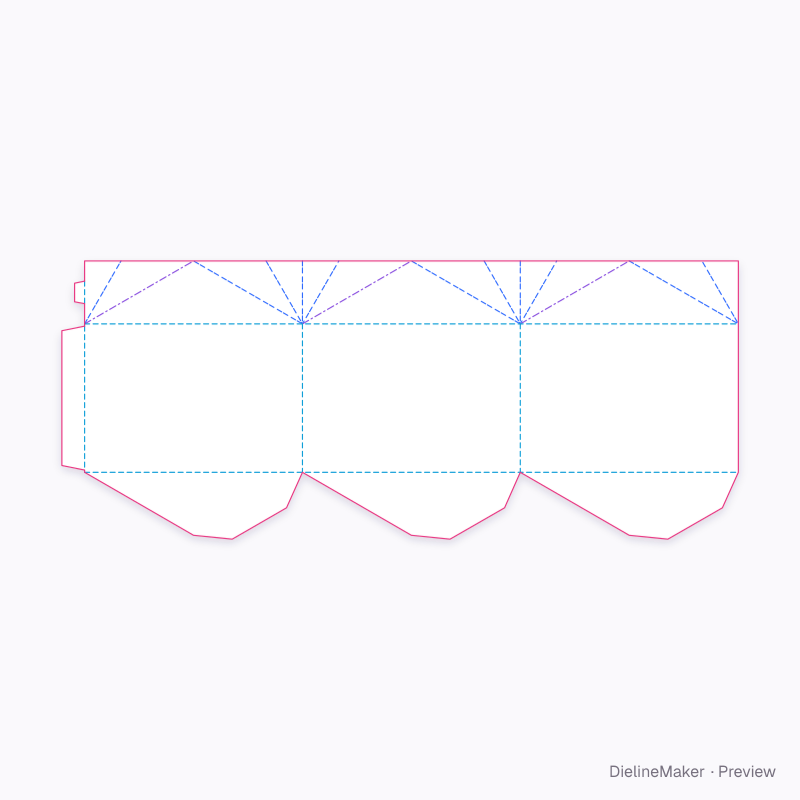

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Double crease
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.16 mm for Art paper 170 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Polygon wall 1 | 95.8 × 65.3 | – × H + 2T |
| Twist roof sector 1 | 95.8 × 27.7 | – |
| Returning lid web 1 | 55.3 × 16 | L + 2T × – |
| Underlapping roof lip 1 | 55.3 × 16 | L + 2T × – |
| Returning sink corner 1 | 13.8 × 31.9 | – |
| Underlap sink corner 1 | 13.8 × 31.9 | – |
| Glued base sector 1 | 95.8 × 27.7 | – |
| Bond to base sector 2 | 55.3 × 10 | L + 2T × – |
| Polygon wall 2 | 95.8 × 65.3 | – × H + 2T |
| Twist roof sector 2 | 95.8 × 27.7 | – |
| Returning lid web 2 | 55.3 × 16 | L + 2T × – |
| Underlapping roof lip 2 | 55.3 × 16 | L + 2T × – |
| Returning sink corner 2 | 13.8 × 31.9 | – |
| Underlap sink corner 2 | 13.8 × 31.9 | – |
| Glued base sector 2 | 95.8 × 27.7 | – |
| Bond to base sector 3 | 55.3 × 10 | L + 2T × – |
10 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Lid reachmm
- Joining tab depthmm
The triangular sink-gusset carton family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures

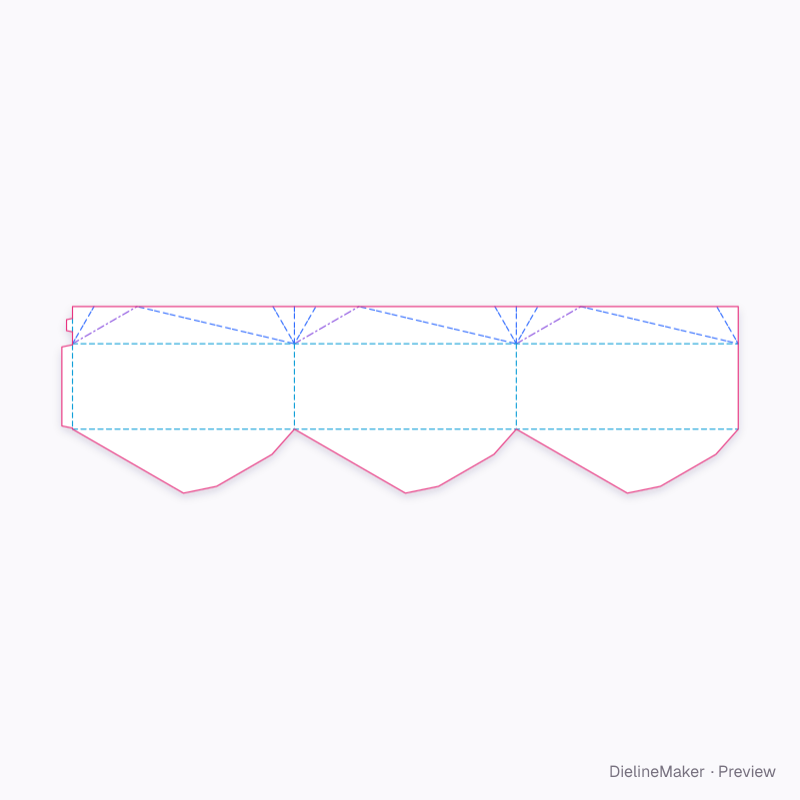

Other structures built in a similar way, matched on code family, category, closures and proportions.
