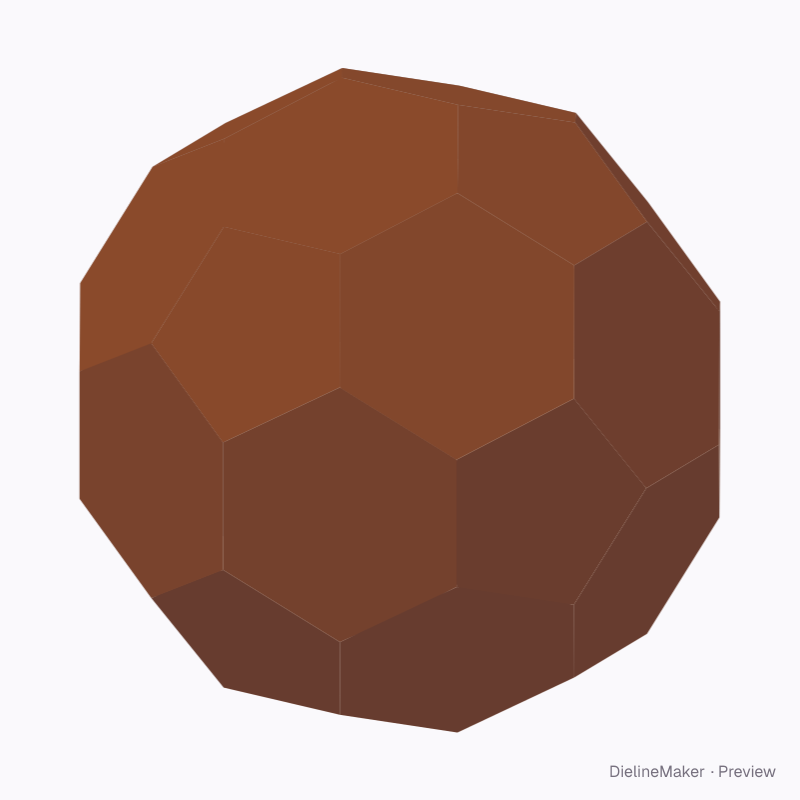

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-TRUNCATED-ICOSAHEDRON-01Shapes
Football paper net · 100 mm dieline
A connected net of 12 pentagons and 20 hexagons that folds into a football-shaped truncated icosahedron, with true face lengths and hand-glue seam tabs. A ready-sized preset of the truncated icosahedron (football) paper net — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 100 × 100 mm
Outside100 × 100 × 100 mm
Flat blank187 × 346.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-TRUNCATED-ICOSAHEDRON-01
- Inside size
- Solid width 100 · Solid depth 100 · Solid height 100 mm
- Size range
- Solid width 60–400 · Solid depth 60–400 · Solid height 60–400 mm
- Manufacturing
- 100 × 100 × 100 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.033 m² · about 10 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300Kraft 350SBS 18 pt
- Good for

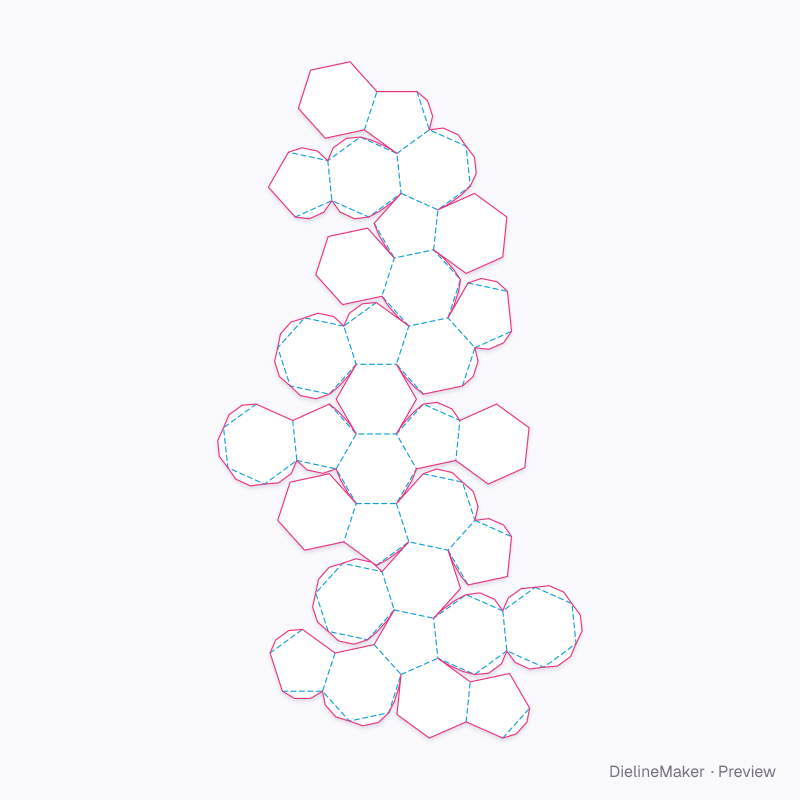

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Hand-glue tab depthmm

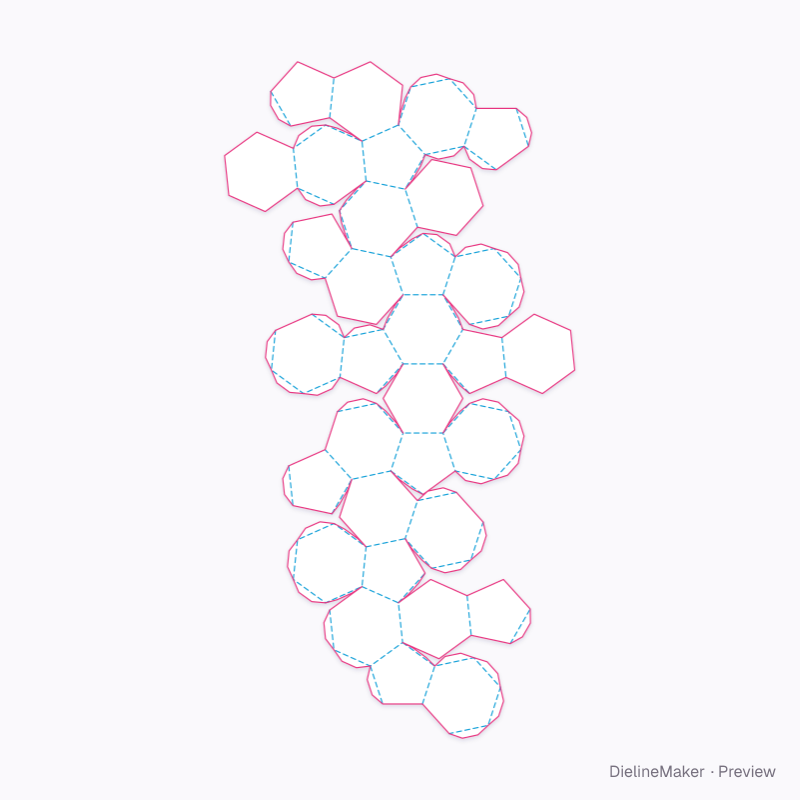

The truncated icosahedron (football) paper net family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this football paper net · 100 mm yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
