A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-WALLLAMP-01Apparel & merchandise

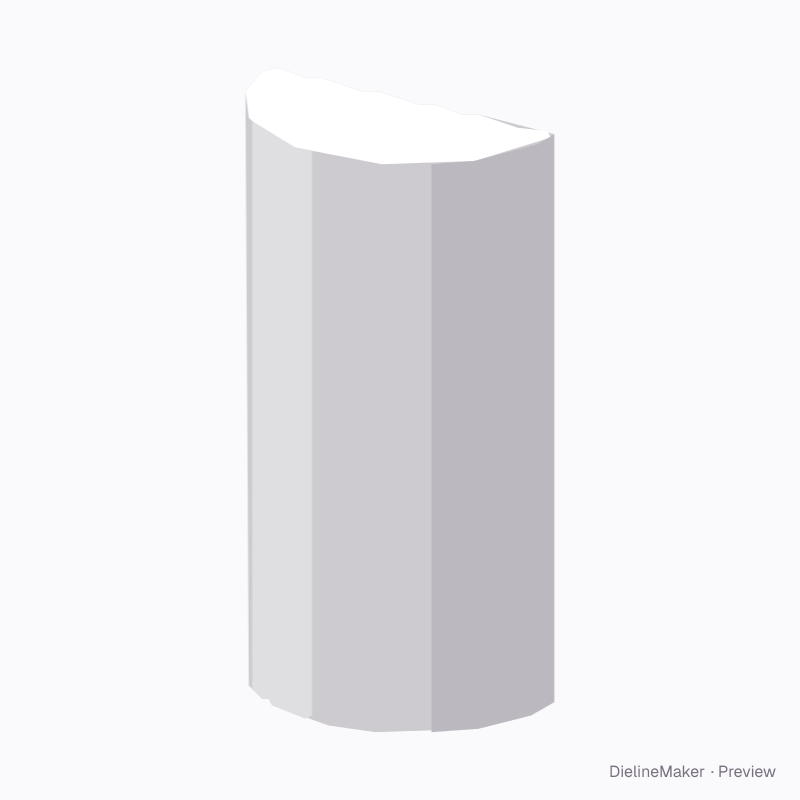

Half-cylinder up-light decoration template
A wall sconce with a printed shade, a half-cylinder up-light or glass globe on a back plate, or a shallow luminous plaque night light in a moon, cloud, whale or rectangle outline. Print the shade, the plate or the plaque face. A ready-sized preset of the wall lamp / night light — adjust the object dimensions and decoration area to preview your artwork at size.
Object sizeØ 120 × 220 mm
Artwork area188.5 × 220 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-WALLLAMP-01
- Object size
- Shade diameter / plaque width 120 · Shade / plaque height 220 mm
- Size range
- Shade diameter / plaque width 80–600 · Shade / plaque height 60–600 mm
- Parts
- One artwork area
- Artwork area
- 0.041 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 5 options; the template and 3D preview follow each change.
- Fixture5 options
- Arm2 options
- Back plate2 options
- Shade / face colour4 options
- Fittings4 options
The wall lamp / night light family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this half-cylinder up-light yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
