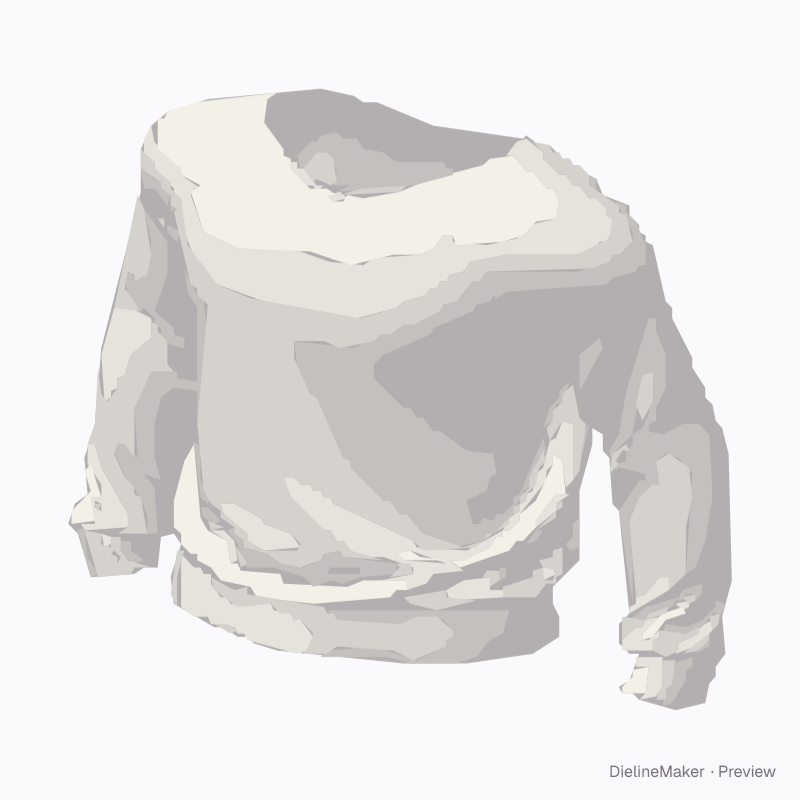

A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementApparel & merchandise
Boat-neck long-sleeve top decoration template
A long-sleeve top with a wide, shallow boat neckline cut level across the front and back toward the shoulders, with bound edges, ribbed cuffs and hem. Optional left/right upper-arm artwork edits independently on both front and rear sleeve faces. Exported pieces are artwork presentation references; confirm production limits with the garment supplier. Sewing and grading patterns are separate. A ready-sized preset of the boat-neck long-sleeve top — adjust the object dimensions and decoration area to preview your artwork at size.
Object size540 × 740 mm
Artwork area297 × 318.2 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Object width 540 · Object height 740 mm
- Size range
- Object width 297–864 · Object height 407–1184 mm
- Parts
- 2 parts — Front decoration, Back decoration
- Artwork area
- 0.189 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 3 options; the template and 3D preview follow each change.
- Separate sleeve artworkon / off
- Rear sleeve artworkon / off
- Object colour17 options
The boat-neck long-sleeve top family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this boat-neck long-sleeve top yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
