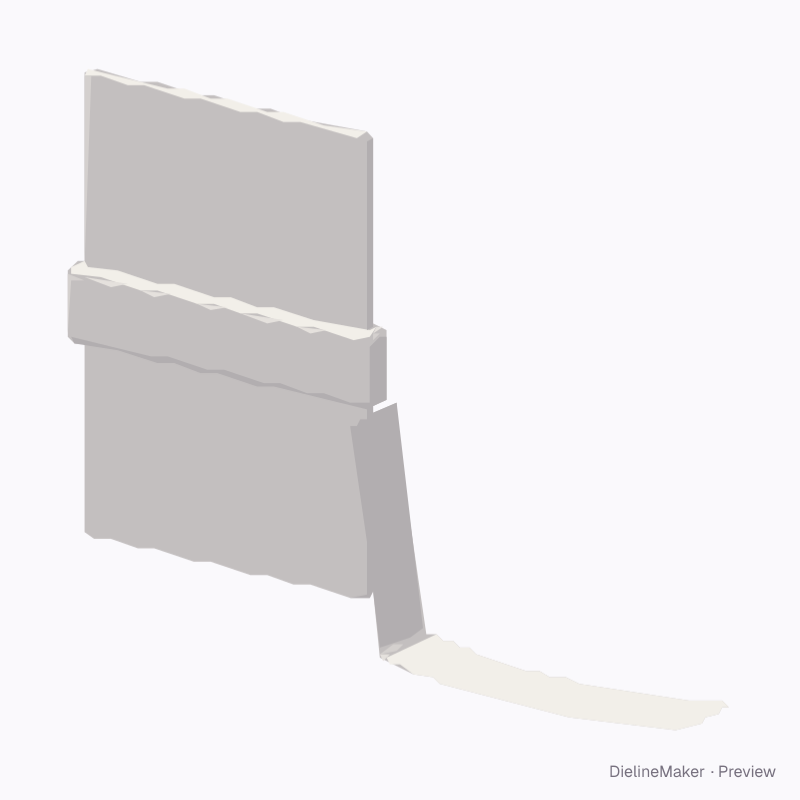

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-WOUNDRIBBON-01Apparel & merchandise
Cotton ribbon on a card decoration template
Printed ribbon wound on a flat card or between spool flanges with a loose tail, or fabric wound on a flat bolt board. Set the support size and the ribbon width; print the wound face and the tail. A ready-sized preset of the ribbon card, spool or fabric bolt — adjust the object dimensions and decoration area to preview your artwork at size.
Object size60 × 15 × 90 mm
Artwork area108 × 15 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-WOUNDRIBBON-01
- Object size
- Support width / flange diameter / bolt length 60 · Ribbon width / fabric layer 15 · Support height / bolt width 90 mm
- Size range
- Support width / flange diameter / bolt length 40–1200 · Ribbon width / fabric layer 3–80 · Support height / bolt width 20–600 mm
- Parts
- 2 parts — Wound ribbon (front band), Loose tail
- Artwork area
- 0.003 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 3 options; the template and 3D preview follow each change.
- Support3 options
- Loose tailon / off
- Support4 options
The ribbon card, spool or fabric bolt family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this cotton ribbon on a card yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
