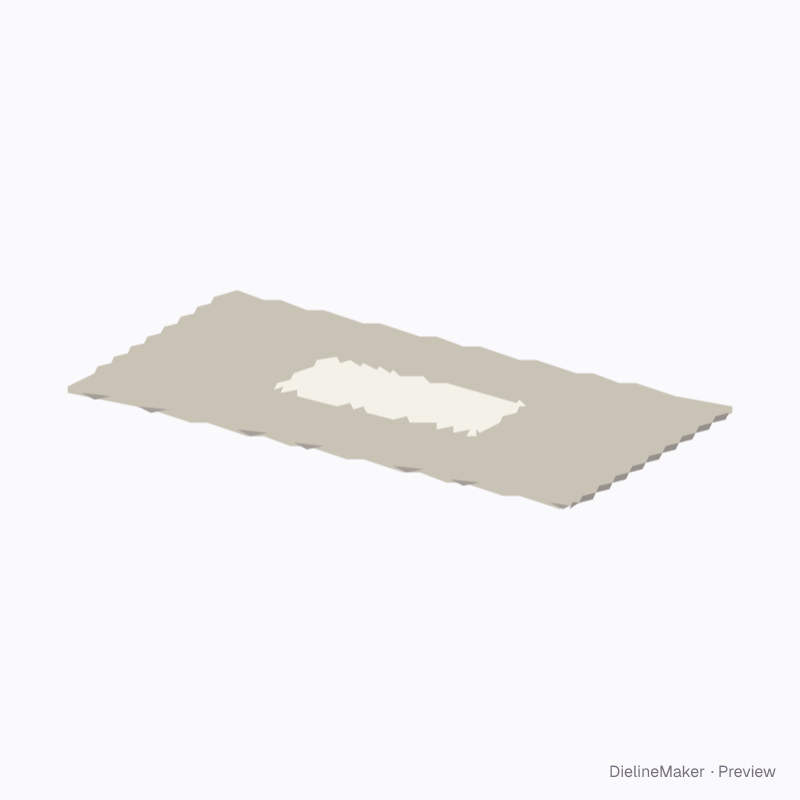

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-WOVENLABEL-01Apparel & merchandise
Flat sewn woven patch decoration template
A woven brand label sewn onto a fabric panel: flat, end-fold or centre-fold loop caught in the seam. Print the label face (and the back of a centre-fold) on any fabric colour. A ready-sized preset of the woven clothing label — adjust the object dimensions and decoration area to preview your artwork at size.
Object size70 × 0 × 30 mm
Artwork area70 × 30 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-WOVENLABEL-01
- Object size
- Label width 70 · Fold allowance 0 · Visible length 30 mm
- Size range
- Label width 15–120 · Fold allowance 0–15 · Visible length 10–120 mm
- Parts
- One artwork area
- Artwork area
- 0.002 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 3 options; the template and 3D preview follow each change.
- Fold3 options
- Label ground4 options
- Garment fabric5 options
The woven clothing label family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this flat sewn woven patch yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
