A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementApparel & merchandise

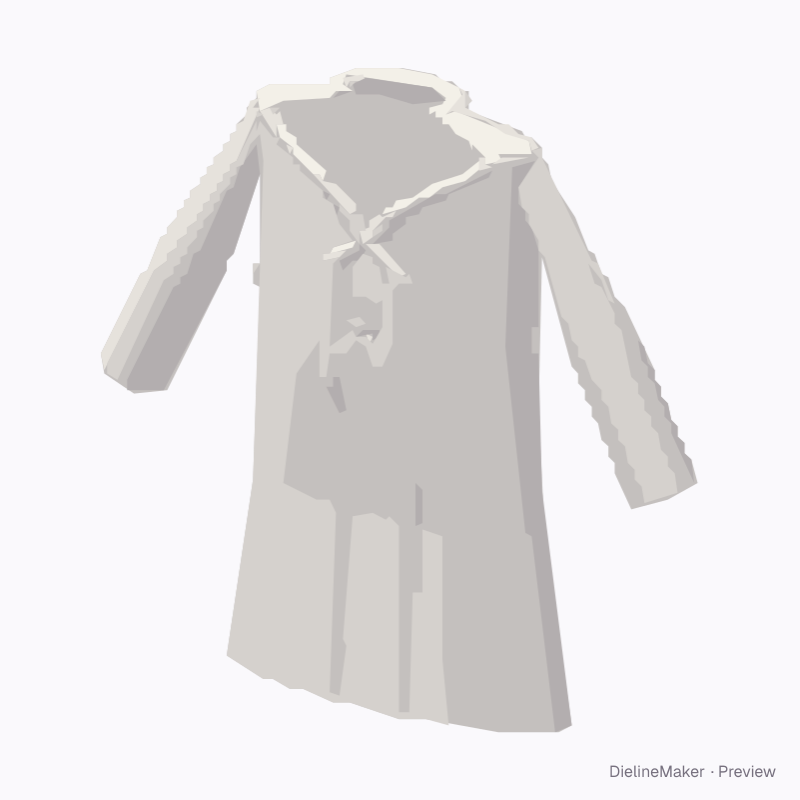

Robe with full-part wrap artwork charts decoration template
An original long robe with two genuinely overlapping wrap fronts, an open neckline, tied flat fabric belt, sewn belt loops and two low patch pockets. Choose a broad rounded shawl collar or a narrow straight kimono collar; sleeves retain their own upper-body proportions. Independent chest and rear decoration references export at size. Optional original full-part charts decorate each actual wrap front, back, sleeve, collar, cuff, pocket and belt component. Charts follow this presentation model and can distort over curved cloth; they are separate from supplier sewing patterns. Supplier sewing/grading patterns, textile performance, embroidery programs, production all-over panels and human-worn rigs are separate. A ready-sized preset of the belted wrap bathrobe — adjust the object dimensions and decoration area to preview your artwork at size.
Object size600 × 1120 mm
Artwork area780 × 1120 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Torso width 600 · Total garment height 1120 mm
- Size range
- Torso width 420–840 · Total garment height 896–1512 mm
- Parts
- 20 parts — Left wrap-front artwork chart, Right wrap-front artwork chart, Back artwork chart, left sleeve wrap chart, left cuff wrap chart, left front-edge band chart, left front collar chart, left patch-pocket chart, right sleeve wrap chart, right cuff wrap chart, right front-edge band chart, right front collar chart, right patch-pocket chart, Back collar artwork chart, Waist belt wrap chart, left belt-loop wrap chart, left tied belt-end wrap chart, right belt-loop wrap chart, right tied belt-end wrap chart, Tied belt-knot wrap chart
- Artwork area
- 2.577 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 5 options; the template and 3D preview follow each change.
- Object colour17 options
- Lower body extensionmm
- Collar construction2 options
- Attached hoodon / off
- Full-part robe artwork presentationon / off
The belted wrap bathrobe family
