Sleeveless zip-neck top decoration template
A sleeveless top with bound armholes, a low stand collar and a short centre-front zipper ending at mid-chest. The chest artwork sits on the wearer’s left chest beside the zipper. Exported pieces are artwork presentation references; confirm production limits with the garment supplier. Sewing and grading patterns are separate. A parametric template — adjust the object dimensions and decoration area to preview your artwork at size.
Object size540 × 760 mm
Artwork area313.2 × 349.6 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Object width 540 · Object height 760 mm
- Size range
- Object width 297–864 · Object height 418–1216 mm
- Parts
- 2 parts — Front decoration, Back decoration
- Artwork area
- 0.139 m²
- Good for

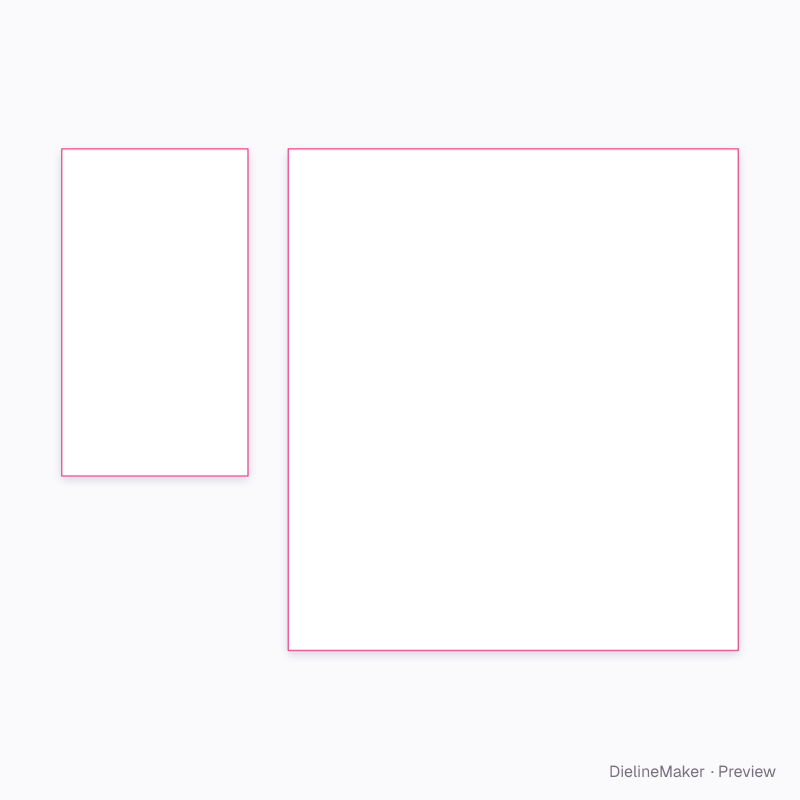

The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 1 option; the template and 3D preview follow each change.
- Object colour17 options

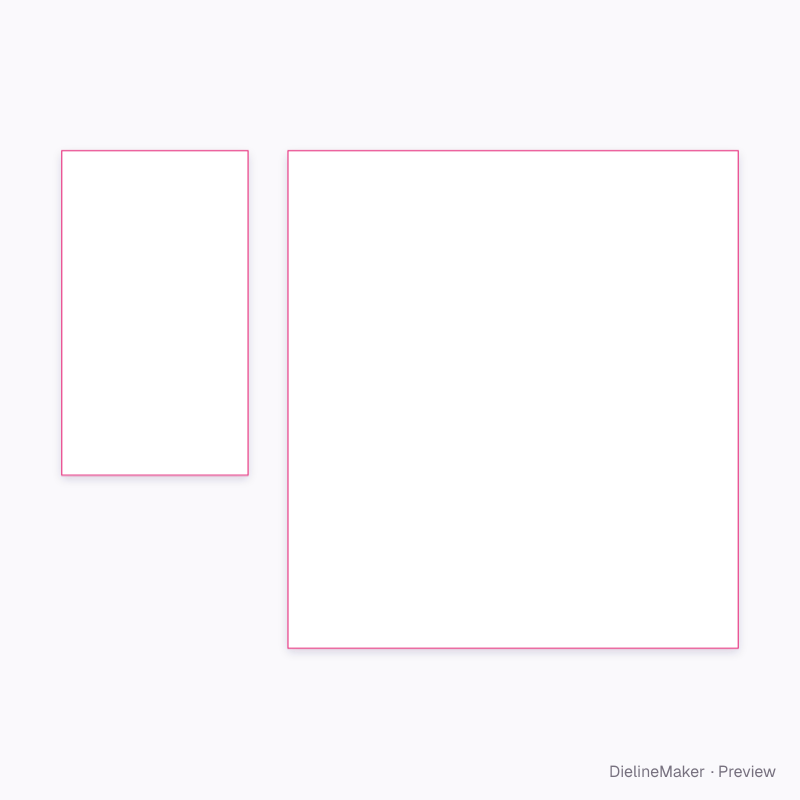

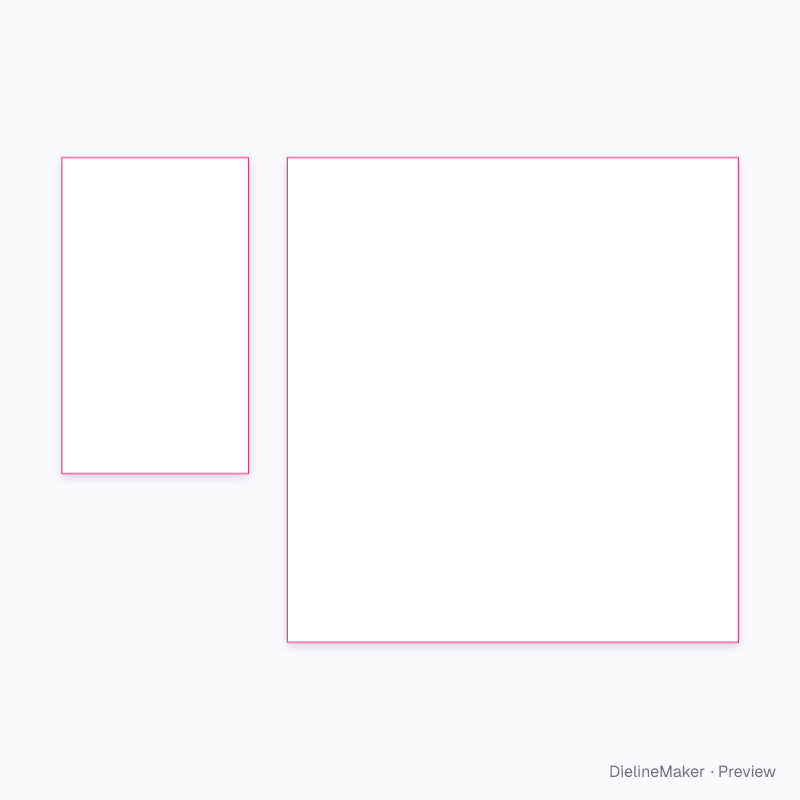

Ready-sized sleeveless zip-neck top presets
The same model with sizes and artwork options ready to customize.
- Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this sleeveless zip-neck top yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
