Polygonal tray (bevelled / webbed) mockup

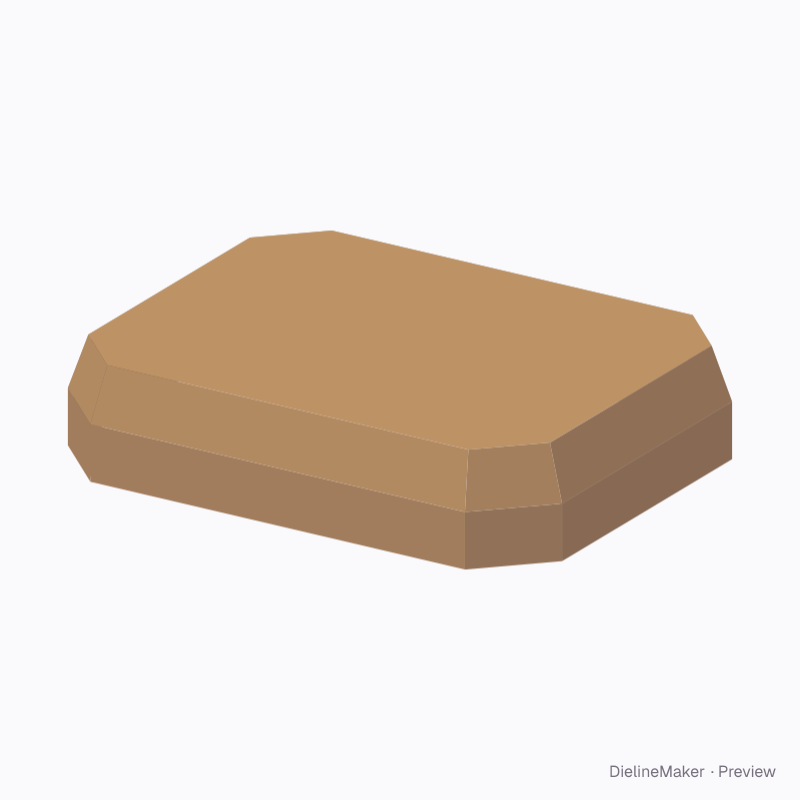

A polygonal tray (bevelled / webbed) at 180 × 140 × 40 mm, folded from its dieline and wearing a full sample design. Replace it with your artwork face by face, change the board and finish, then stage it in a scene and export.
- Structure
- Polygonal tray (bevelled / webbed) dieline · ECMA F40.12.00.00
- Size
- 180 × 140 × 40 mm inside
- Board
- SBS white board 350 g
- Family
- Trays & lids
- Scenes
- 115 presets — studio, e-commerce, lifestyle, social, technical, motion
- Stills
- PNG or JPEG in 1:1, 4:5, 3:4, 4:3, 16:9, 9:16
- Motion
- MP4 turntable, fold, unbox, float and drop clips
- Print file
- PDF with the artwork and the dieline on its own layer
The same polygonal tray (bevelled / webbed), other designs
Sample brands that open on this model, with editable text, graphics and artwork.
