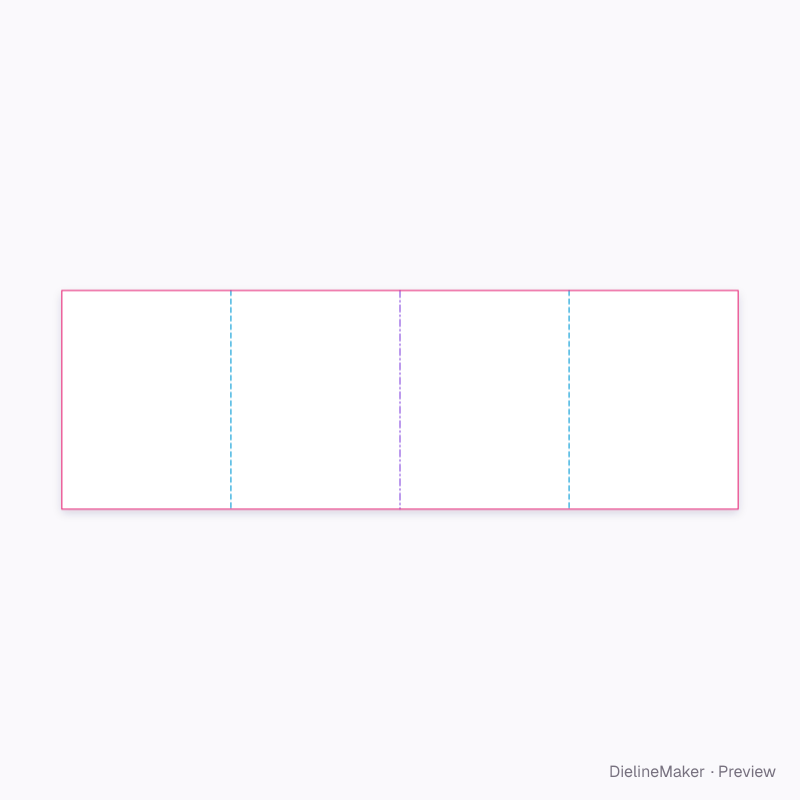

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
US letter accordion brochure dieline
215.9 × 279.4 mm finished format with editable dimensions and artwork. A ready-sized preset of the accordion brochure — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside215.9 × 279.4 mm
Outside215.9 × 279.4 mm
Flat blank863.6 × 279.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Panel width 215.9 · Height 279.4 mm
- Size range
- Panel width 40–250 · Height 60–450 mm
- Manufacturing
- 215.9 × 279.4 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.241 m²
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300SBS 350Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.16 mm for Art paper 170 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front cover | 215.9 × 279.4 | L × H |
| Panel 2 | 215.9 × 279.4 | L × H |
| Panel 3 | 215.9 × 279.4 | L × H |
| Back cover | 215.9 × 279.4 | L × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Panels10 options
