Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
210 mm square accordion brochure dieline
210 × 210 mm finished format with editable dimensions and artwork. A ready-sized preset of the accordion brochure — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside210 × 210 mm
Outside210 × 210 mm
Flat blank840 × 210 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Panel width 210 · Height 210 mm
- Size range
- Panel width 40–250 · Height 60–450 mm
- Manufacturing
- 210 × 210 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.176 m²
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300SBS 350Kraft 350SBS 18 pt
- Good for

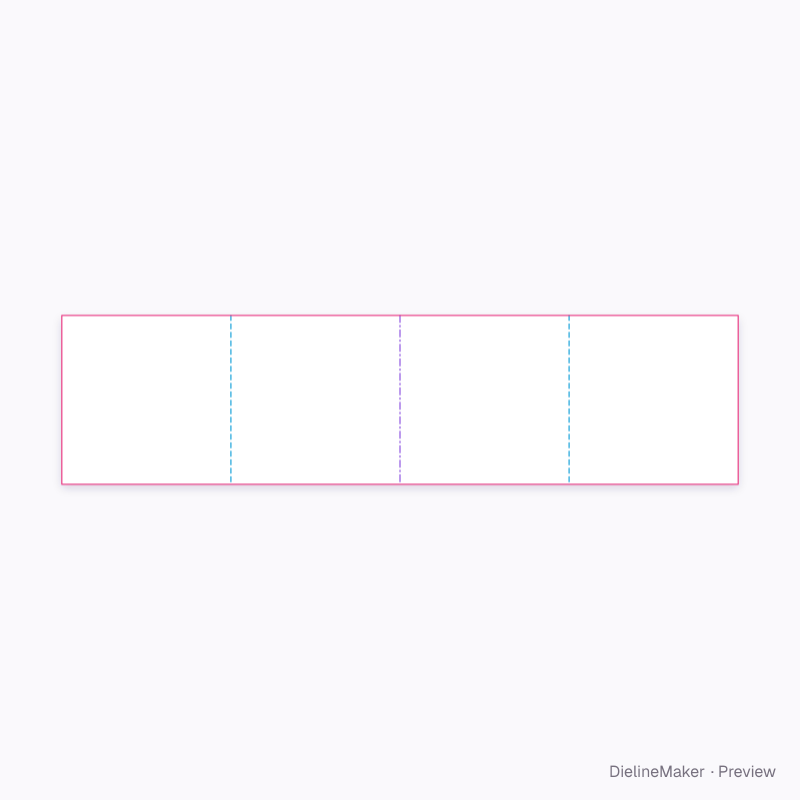

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Panels10 options
The accordion brochure family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this 210 mm square accordion brochure yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
