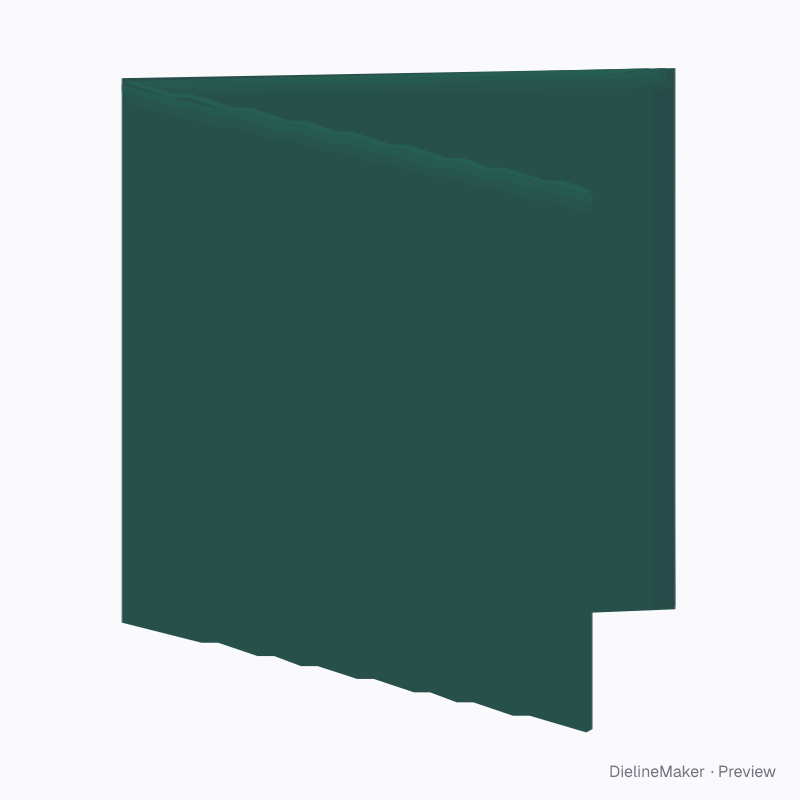

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
Map fold with cross-fold dieline
A compact map or instruction sheet with folds in both directions. Choose a half-fold followed by a letter fold (six panels), Z-fold followed by a cross half-fold (six), or double-parallel followed by a cross half-fold (eight). All cells and print sides remain editable; inner-panel compensation and actual fold guides export on one connected sheet. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside99.7 × 105 mm
Outside99.7 × 105 mm
Flat blank297 × 210 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Finished main-panel width 99.7 · Finished half-height 105 mm
- Size range
- Finished main-panel width 45–250 · Finished half-height 60–300 mm
- Manufacturing
- 99.7 × 105 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.062 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300SBS 350SBS 18 pt
- Good for

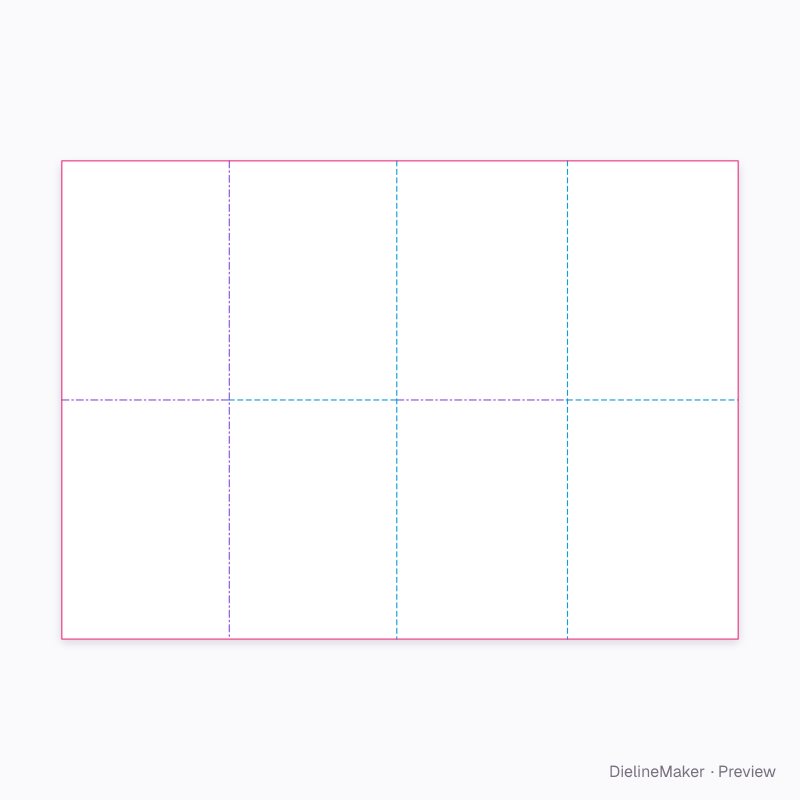

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.16 mm for Art paper 170 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front cover / lower right | 99.7 × 105 | L × H |
| Upper panel 3 | 99.7 × 105 | L × H |
| Lower panel 2 | 99.7 × 105 | L × H |
| Upper panel 2 | 99.7 × 105 | L × H |
| Lower panel 1 | 97.7 × 105 | – × H |
| Upper panel 1 | 97.7 × 105 | – × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Fold construction / sequence3 options
- Inner-panel fold allowancemm
- Final fold opening°
Ready-sized map fold with cross-fold presets
The same structure with sizes, boards and options set for a use.
