A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-ADCOLUMN-01Apparel & merchandise

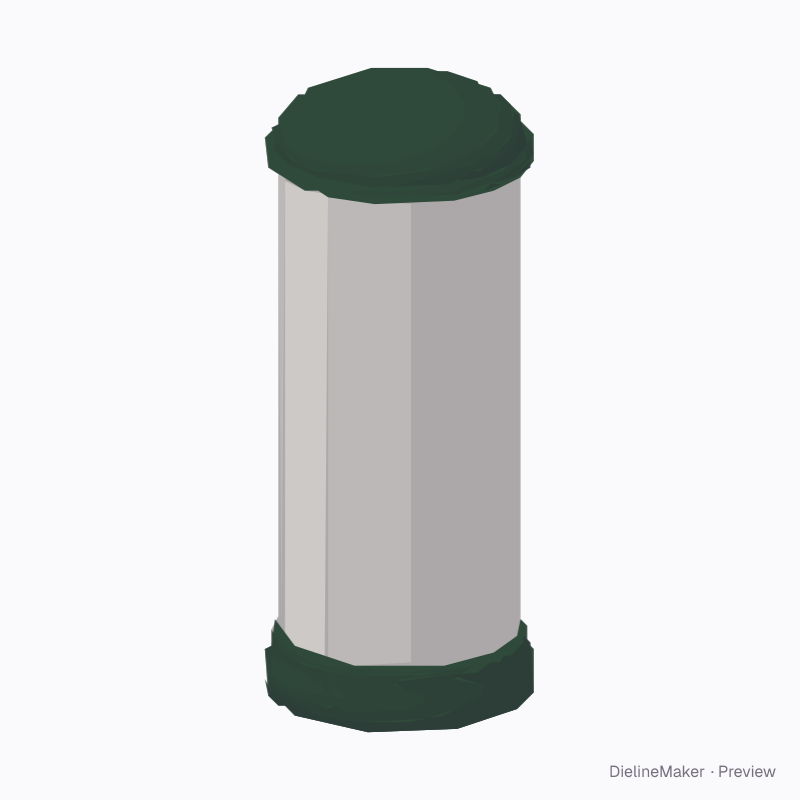

Classic advertising column with dome decoration template
A round street poster column on a stepped base with a domed, onion, conical or flat cap, a wrap-around poster or 2–4 sheets and an optional header band. A ready-sized preset of the cylindrical advertising column — adjust the object dimensions and decoration area to preview your artwork at size.
Object sizeØ 1200 × 3200 mm
Artwork area3769.9 × 2400 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-ADCOLUMN-01
- Object size
- Drum diameter 1200 · Overall height 3200 mm
- Size range
- Drum diameter 600–2200 · Overall height 1800–4800 mm
- Parts
- One artwork area
- Artwork area
- 9.048 m²
- Good for

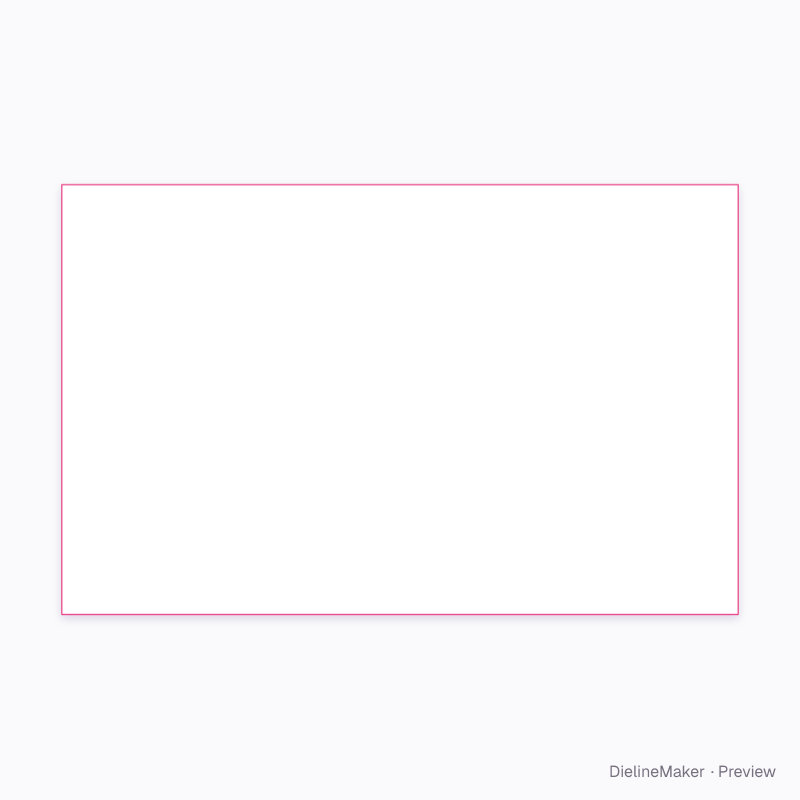

The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 5 options; the template and 3D preview follow each change.
- Cap4 options
- Poster sheetscount
- Header band under the capon / off
- Poster margin top / bottommm
- Column5 options

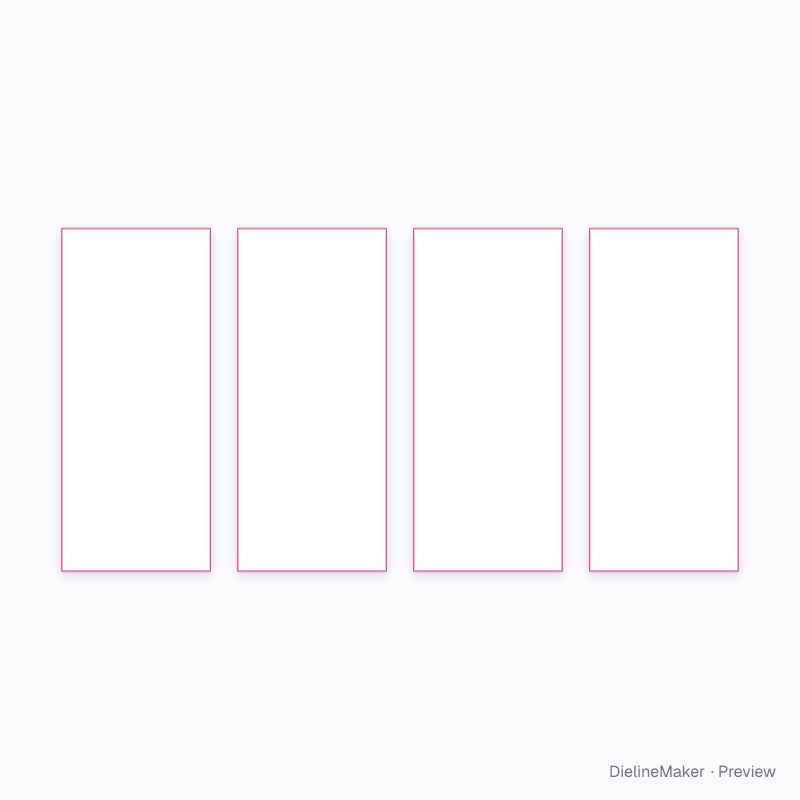

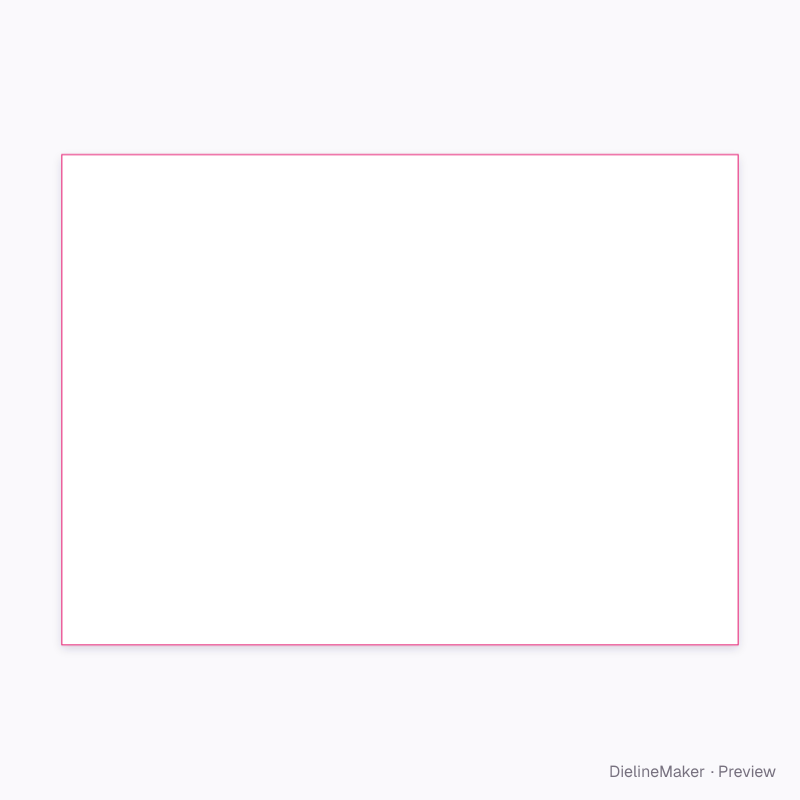

The cylindrical advertising column family
The same model with sizes and artwork options ready to customize.
