Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-ADCOLUMN-01Apparel & merchandise

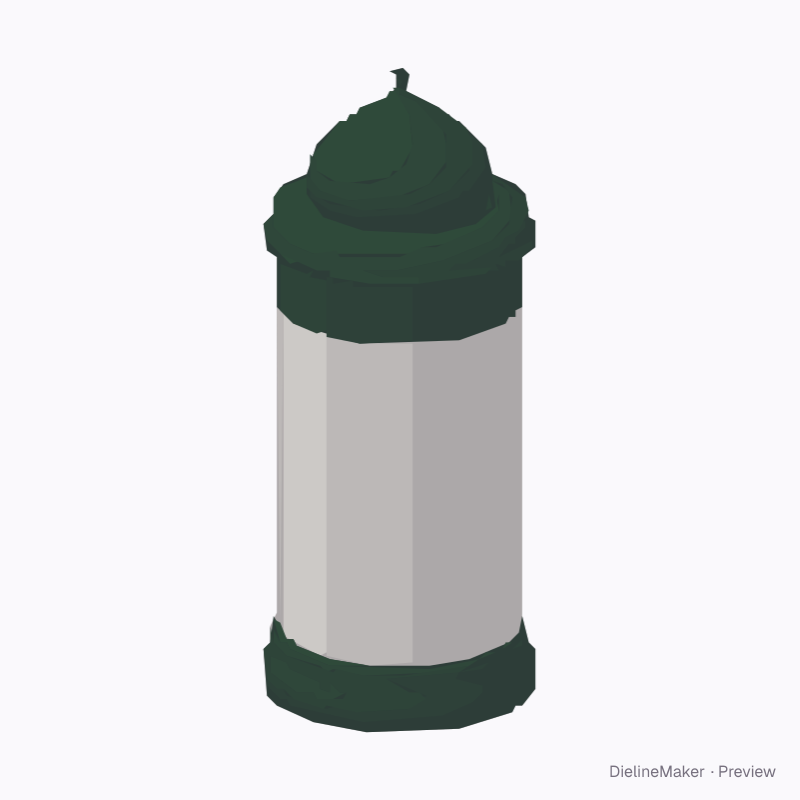

Ornate column with onion dome and header decoration template
A round street poster column on a stepped base with a domed, onion, conical or flat cap, a wrap-around poster or 2–4 sheets and an optional header band. A ready-sized preset of the cylindrical advertising column — adjust the object dimensions and decoration area to preview your artwork at size.
Object sizeØ 1400 × 3800 mm
Artwork area4398.2 × 1870 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-ADCOLUMN-01
- Object size
- Drum diameter 1400 · Overall height 3800 mm
- Size range
- Drum diameter 600–2200 · Overall height 1800–4800 mm
- Parts
- 2 parts — Wrap-around poster, Header band
- Artwork area
- 9.720 m²
- Good for

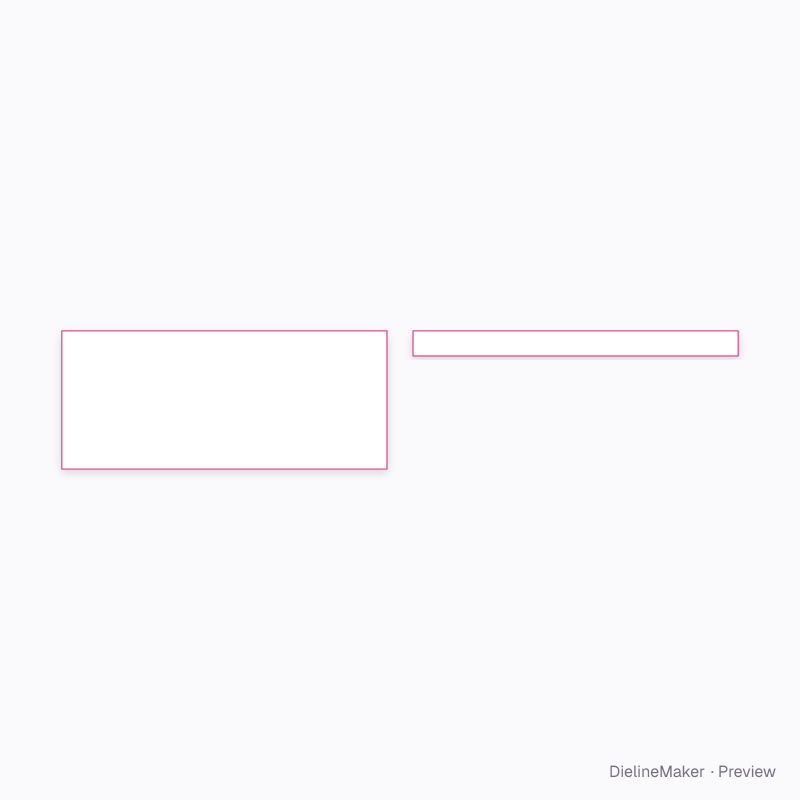

The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 5 options; the template and 3D preview follow each change.
- Cap4 options
- Poster sheetscount
- Header band under the capon / off
- Poster margin top / bottommm
- Column5 options
The cylindrical advertising column family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this ornate column with onion dome and header yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
