Parametric structureDisplay
Arched counter display dieline
A counter carton with a curved front lip, bowed side cutaways and an arched back crown. The selected tuck, snap-lock or pre-glued crash-lock base remains part of the same blank. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside120 × 70 × 130 mm
Outside121 × 71 × 131 mm
Flat blank393.5 × 211 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Inside length 120 · Inside width 70 · Inside height 130 mm
- Size range
- Inside length 30–400 · Inside width 20–300 · Inside height 30–400 mm
- Manufacturing
- 120.5 × 70.5 × 130.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.046 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350GD2 350Black 350F-fluteE-flute WSBS 18 pt
- Good for

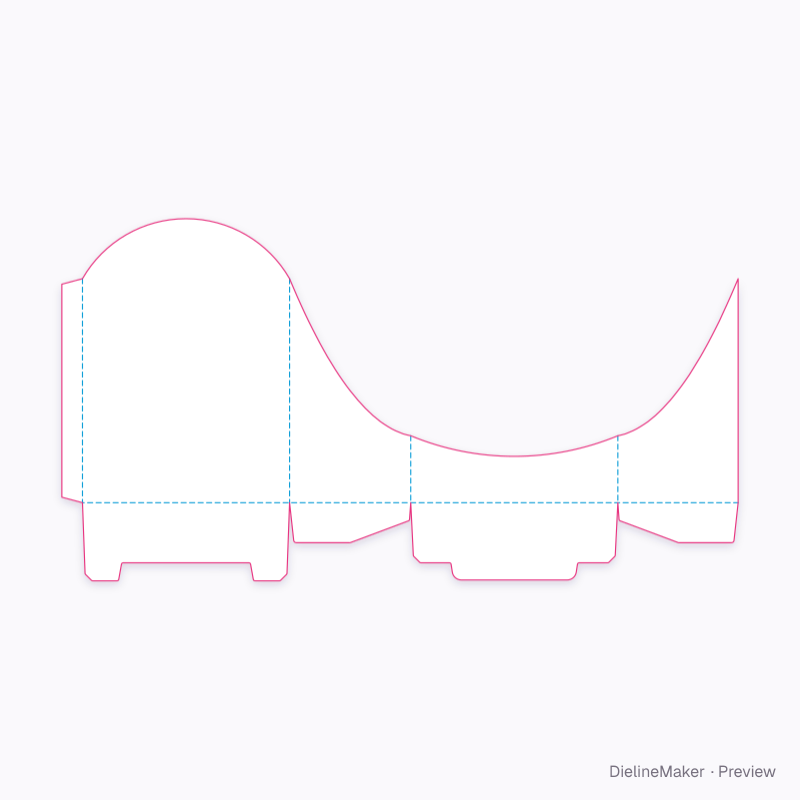

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 120.5 × 39 | L + T × – |
| Left side | 70.5 × 39 | W + T × – |
| Back | 120.5 × 130.5 | L + T × H + T |
| Right side | 70 × 39 | W × – |
| Glue flap | 12 × 130.5 | – × H + T |
| Snap end | 70.5 × 23.3 | W + T × – |
| Snap end | 70 × 23.3 | W × – |
| Snap bottom | 120.5 × 45.5 | L + T × – |
| Snap tuck | 120.5 × 45 | L + T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Bottom3 options
- Front lip heightmm
- Tuck depthmm
- Slit lockon / off
- Fitted coveron / off
- Hanging headeron / off
- Back crown risemm
- Front curve depthmm
Ready-sized arched counter display presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset

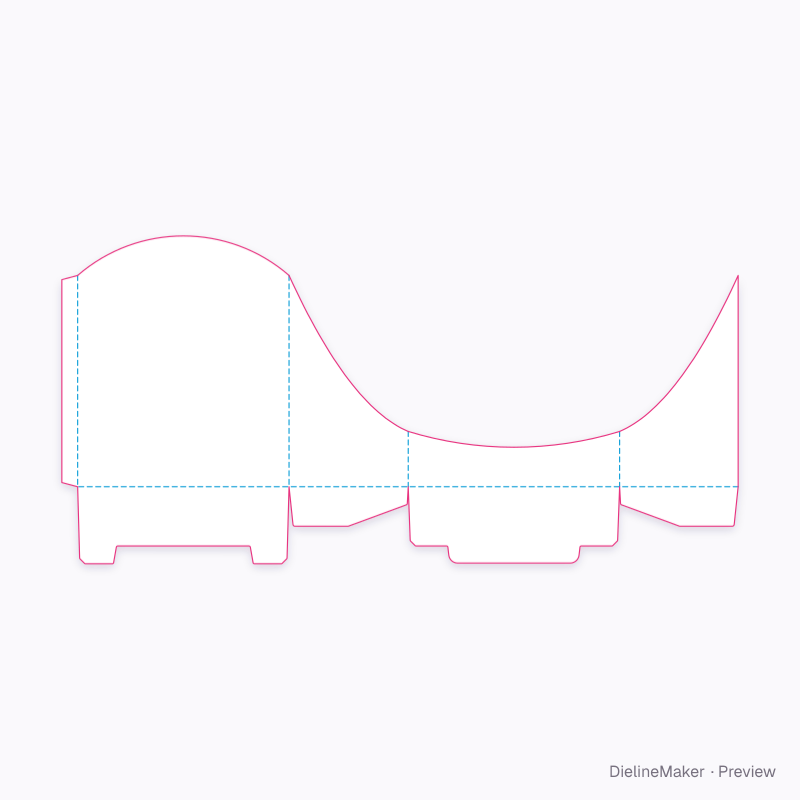

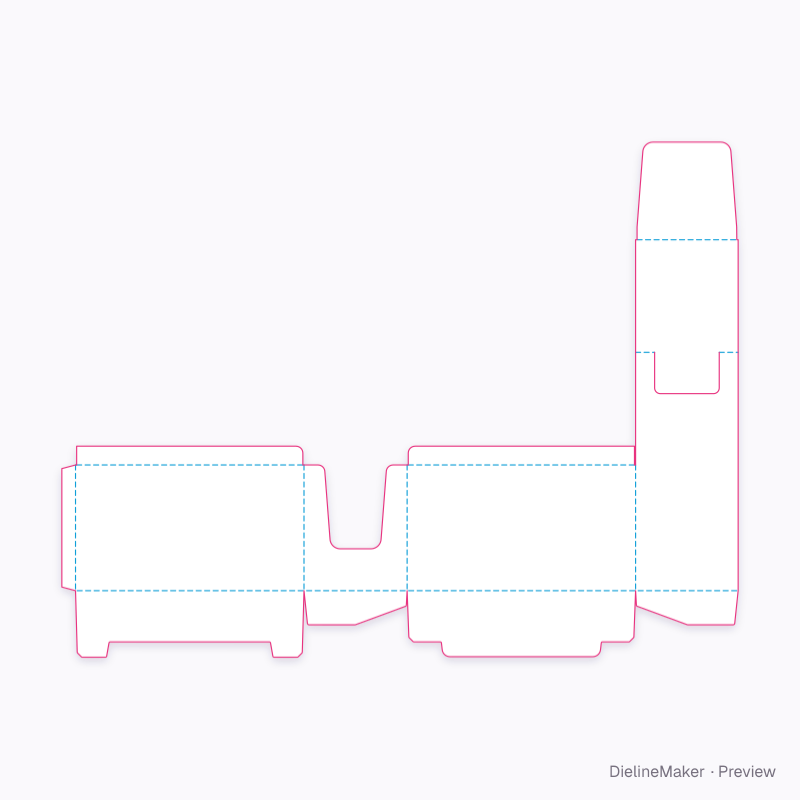

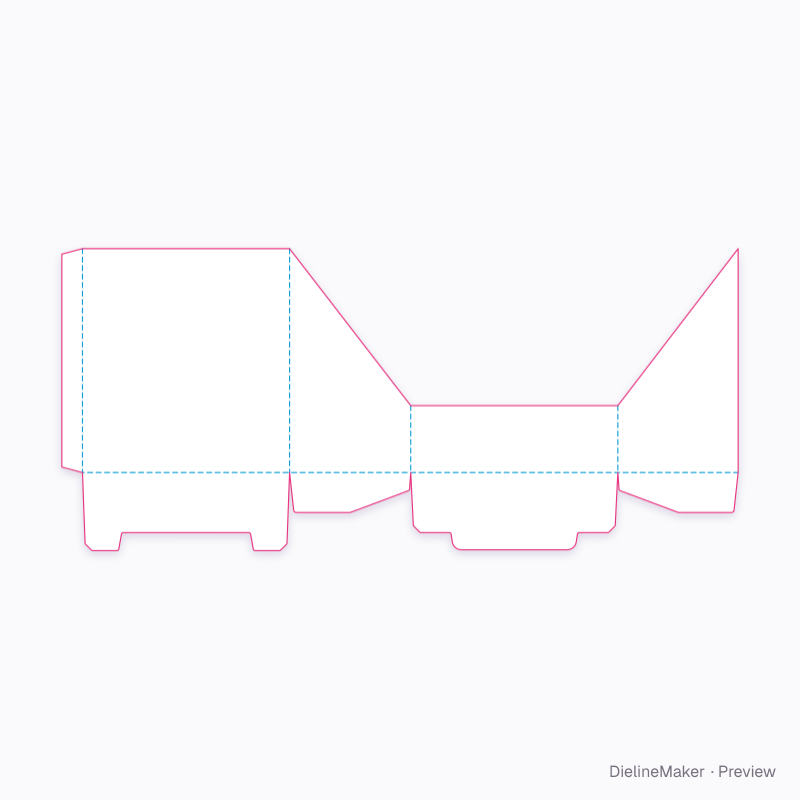

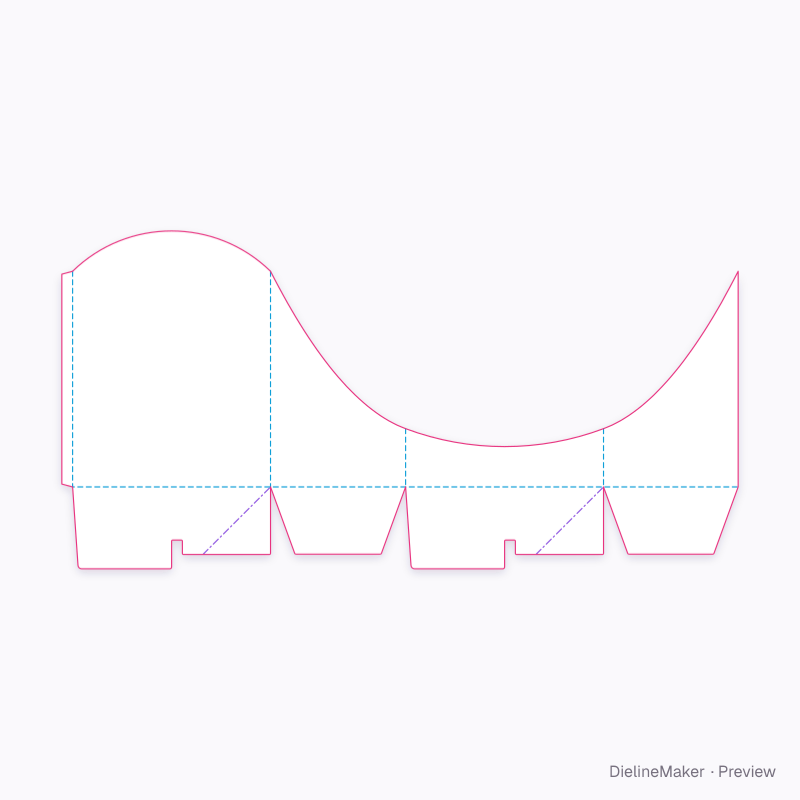

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this arched counter display yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
