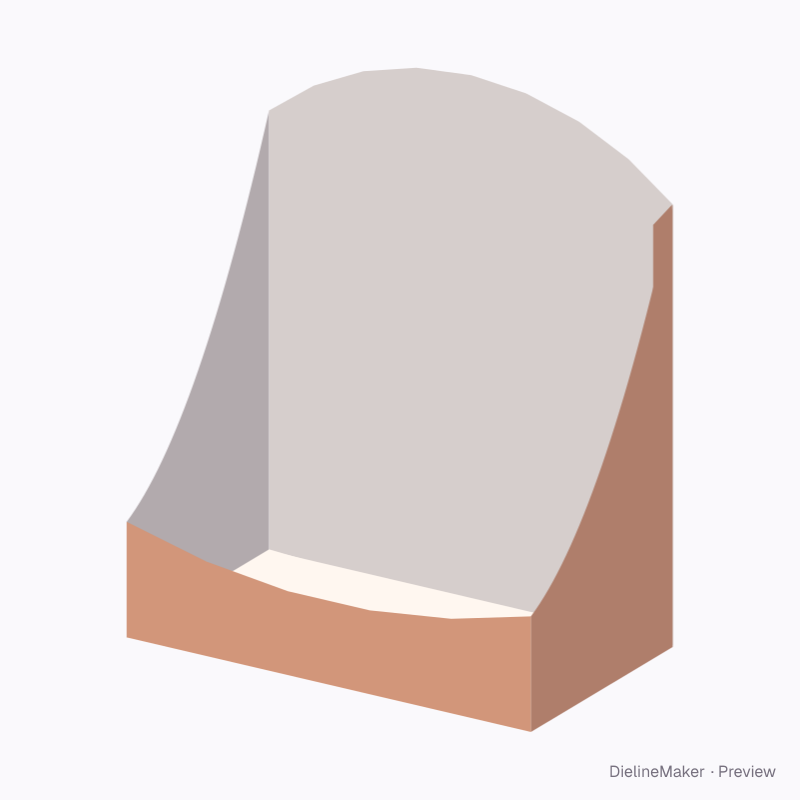

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureDisplay
Curved cosmetic display carton dieline
A counter carton with a curved front lip, bowed side cutaways and an arched back crown. The selected tuck, snap-lock or pre-glued crash-lock base remains part of the same blank. A ready-sized preset of the arched counter display — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside160 × 90 × 160 mm
Outside161 × 91 × 161 mm
Flat blank513.5 × 249 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Inside length 160 · Inside width 90 · Inside height 160 mm
- Size range
- Inside length 30–400 · Inside width 20–300 · Inside height 30–400 mm
- Manufacturing
- 160.5 × 90.5 × 160.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.073 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350GD2 350Black 350F-fluteE-flute WSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 160.5 × 42 | – |
| Left side | 90.5 × 42 | W + T × – |
| Back | 160.5 × 160.5 | – |
| Right side | 90 × 42 | W × – |
| Glue flap | 12 × 160.5 | – |
| Snap end | 90.5 × 30 | W + T × – |
| Snap end | 90 × 30 | W × – |
| Snap bottom | 160.5 × 58.5 | – |
| Snap tuck | 160.5 × 58 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Bottom3 options
- Front lip heightmm
- Tuck depthmm
- Slit lockon / off
- Fitted coveron / off
- Hanging headeron / off
- Back crown risemm
- Front curve depthmm
The arched counter display family
