DM-BARREL-COOLER-01Labels
Floor barrel cooler (no stand) dieline

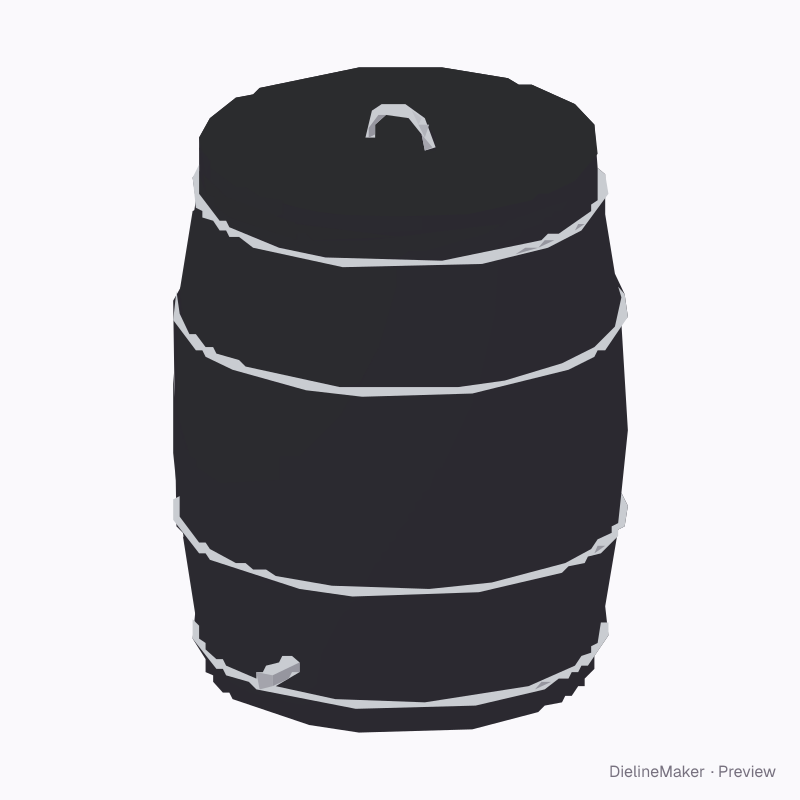

A stave-barrel drinks cooler with hoops, hinged lid, drain tap and optional leg stand. Print the band round its belly; open the lid to show the tub. A ready-sized preset of the barrel beverage cooler — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside420 × 0 × 500 mm
Outside420 × 0 × 500 mm
Flat blank1319.5 × 170 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-BARREL-COOLER-01
- Inside size
- Belly diameter 420 · Stand height 0 · Barrel height 500 mm
- Size range
- Belly diameter 300–700 · Stand height 0–500 · Barrel height 350–900 mm
- Manufacturing
- 420 × 0 × 500 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.224 m²
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
