Oval snap-lid food tub label template
A tapered oval food tub with an open cavity and removable snap lid. Export is the flat oval lid label; the moulded wall and closure are mockup references. Editable dimensions are starting sizes, not certified capacities. A parametric template — adjust the object dimensions and decoration area to preview your artwork at size.
Object size165 × 110 × 65 mm
Artwork area145.2 × 90.2 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Rim length 165 · Rim width 110 · Body height 65 mm
- Size range
- Rim length 90–300 · Rim width 65–230 · Body height 30–160 mm
- Parts
- One artwork area
- Artwork area
- 0.010 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 4 options; the template and 3D preview follow each change.
- Wall inset at basemm
- Fit lid on tubon / off
- Tub colour8 options
- Lid colour8 options

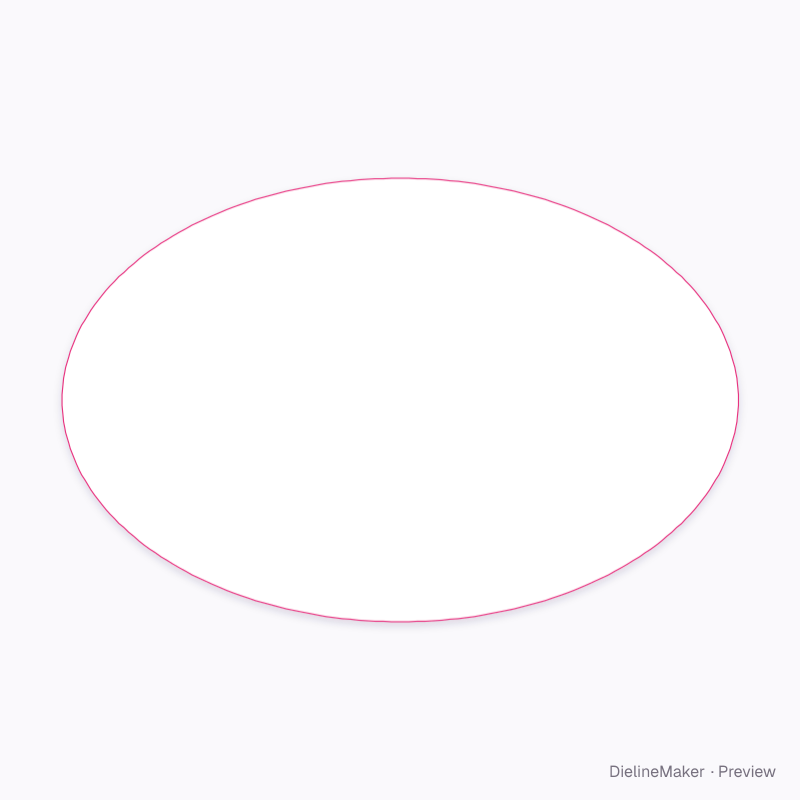

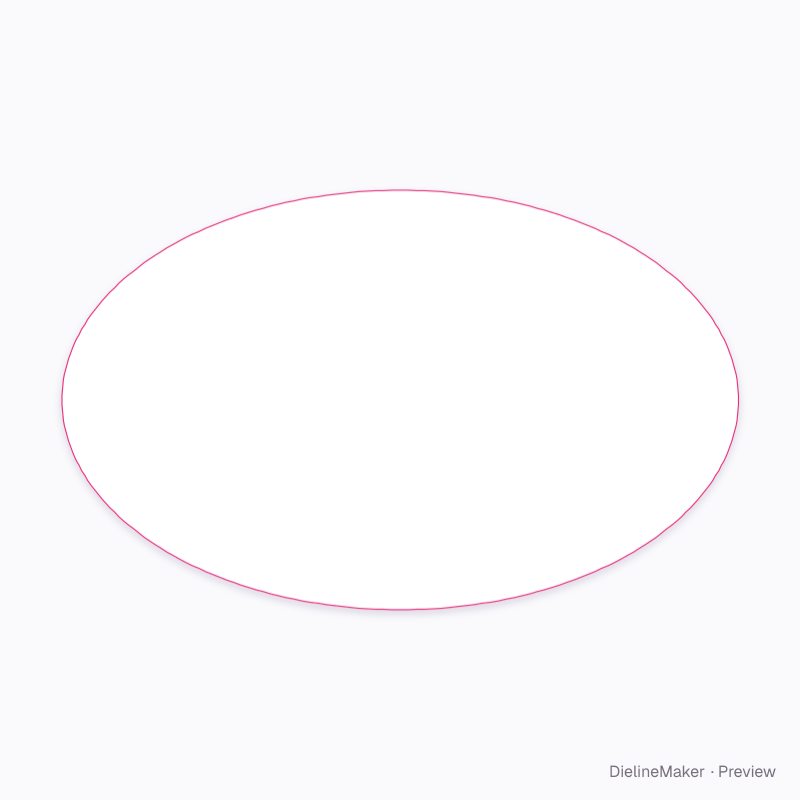

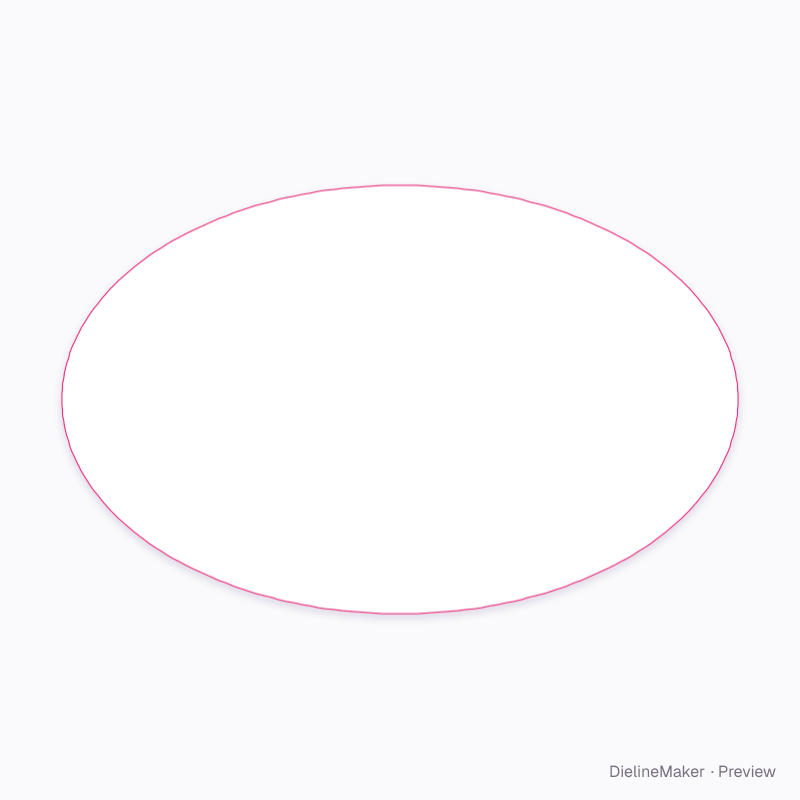

Ready-sized oval snap-lid food tub presets
The same model with sizes and artwork options ready to customize.
- Preset
Preset
Preset
Preset
