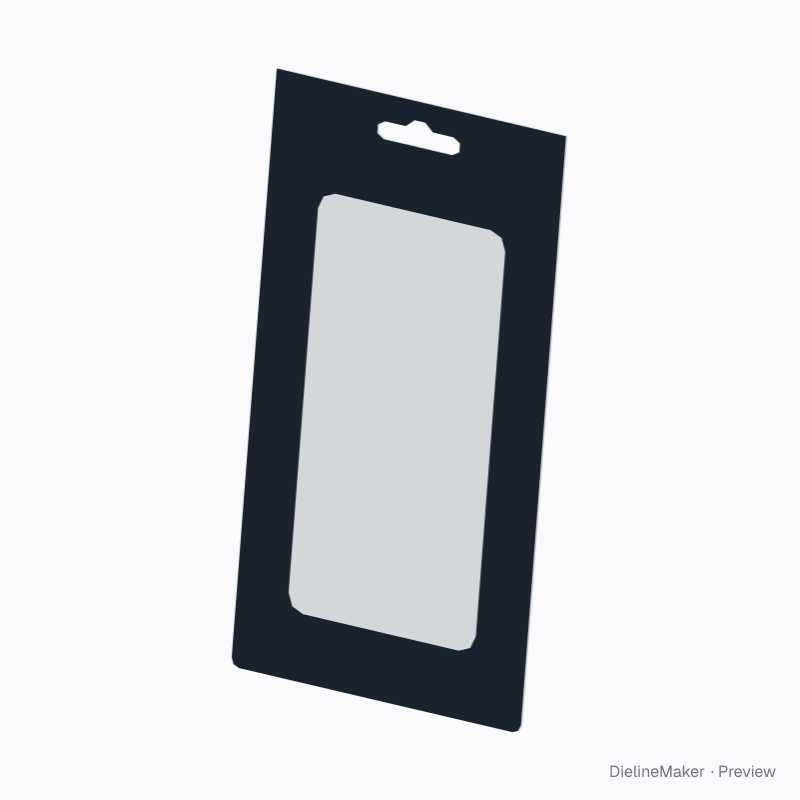

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F80.52.00.00Display
Cable blister card dieline
Fold-over card with a window for a coiled cable. A ready-sized preset of the blister card — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside110 × 200 mm
Outside110 × 200 mm
Flat blank110 × 400 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F80.52.00.00
- Inside size
- Width 110 · Height 200 mm
- Size range
- Width 50–300 · Height 70–400 mm
- Manufacturing
- 110 × 200 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.044 m² · about 12 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400SBS 300GD2 350Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F80.52.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 110 × 200 | W × H |
| Back | 110 × 200 | W × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Card2 options
- Hang hole3 options
- Slot widthmm
- Hole from topmm
- Blister widthmm
- Blister heightmm
The blister card family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this cable blister card yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
