A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-TRACKER-01Apparel & merchandise
Bluetooth tracker tag decoration template

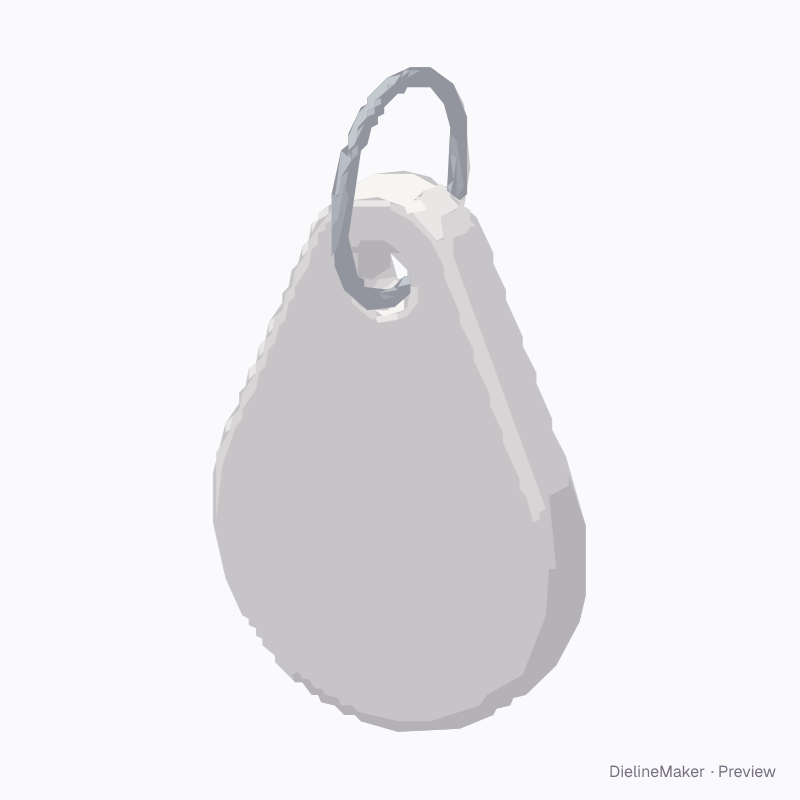

A teardrop tracker tag with a large lanyard hole through its narrow end and a round inset face. Print the inset face; an optional split ring hangs from the hole. A parametric template — adjust the object dimensions and decoration area to preview your artwork at size.
Object size36 × 7 × 52 mm
Artwork area25.2 × 25.2 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-TRACKER-01
- Object size
- Body width 36 · Thickness 7 · Length (with tip) 52 mm
- Size range
- Body width 25–60 · Thickness 4–12 · Length (with tip) 35–90 mm
- Parts
- One artwork area
- Artwork area
- 0.000 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 2 options; the template and 3D preview follow each change.
- Split key ringon / off
- Shell5 options
Ready-sized bluetooth tracker tag presets
The same model with sizes and artwork options ready to customize.
