A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-TRACKER-01Apparel & merchandise
Small tracker tag decoration template

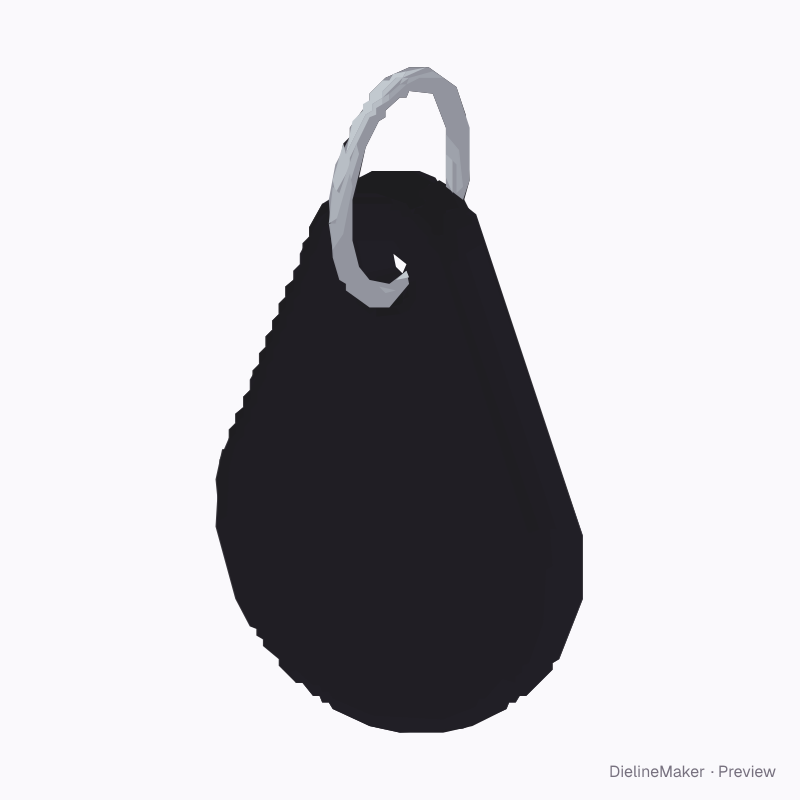

A teardrop tracker tag with a large lanyard hole through its narrow end and a round inset face. Print the inset face; an optional split ring hangs from the hole. A ready-sized preset of the bluetooth tracker tag — adjust the object dimensions and decoration area to preview your artwork at size.
Object size28 × 5.5 × 42 mm
Artwork area19.6 × 19.6 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-TRACKER-01
- Object size
- Body width 28 · Thickness 5.5 · Length (with tip) 42 mm
- Size range
- Body width 25–60 · Thickness 4–12 · Length (with tip) 35–90 mm
- Parts
- One artwork area
- Artwork area
- 0.000 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 2 options; the template and 3D preview follow each change.
- Split key ringon / off
- Shell5 options
The bluetooth tracker tag family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this small tracker tag yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
