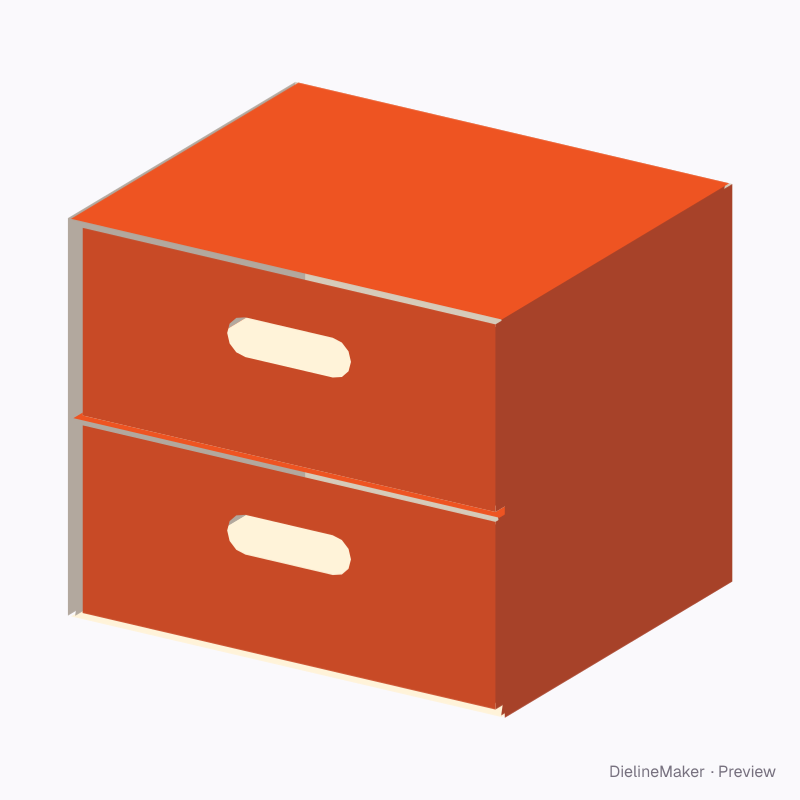

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-DRAWER-CABINET-01Display
Desktop drawer unit dieline
A board cabinet: a one-piece carcass, glued shelves and a pull-out drawer tray per row with a finger slot. A ready-sized preset of the cardboard drawer cabinet — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 250 × 250 mm
Outside303.2 × 253.2 × 253.2 mm
Flat blank800 × 750 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-DRAWER-CABINET-01
- Inside size
- Width 300 · Depth 250 · Height 250 mm
- Size range
- Width 150–1000 · Depth 150–700 · Height 150–1400 mm
- Manufacturing
- 301.6 × 251.6 × 251.6 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Cabinet carcass, Shelf 1, Drawer 1, Drawer 2
- Board area
- 0.863 m²
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- EB doubleB-fluteE-flute WChipboard 2
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-DRAWER-CABINET-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BackCabinet carcass | 300 × 250 | L × – |
| Left sideCabinet carcass | 250 × 250 | – |
| Right sideCabinet carcass | 250 × 250 | – |
| TopCabinet carcass | 295.8 × 250 | – |
| BaseCabinet carcass | 295.8 × 250 | – |
| Glue flap ×4Cabinet carcass | 25 × 246 | – |
| Shelf 1Shelf 1 | 292.6 × 247.9 | – |
| Glue flap ×2Shelf 1 | 25 × 245.9 | – |
| Drawer baseDrawer 1 | 283.4 × 241.9 | – |
| Drawer frontDrawer 1 | 283.4 × 118 | – |
| Drawer backDrawer 1 | 283.4 × 118 | – |
| Drawer side ×2Drawer 1 | 118 × 241.9 | – |
| Glue flap ×4Drawer 1 | 25 × 113.8 | – |
| Drawer baseDrawer 2 | 283.4 × 241.9 | – |
| Drawer frontDrawer 2 | 283.4 × 118 | – |
| Drawer backDrawer 2 | 283.4 × 118 | – |
2 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Drawerscount
