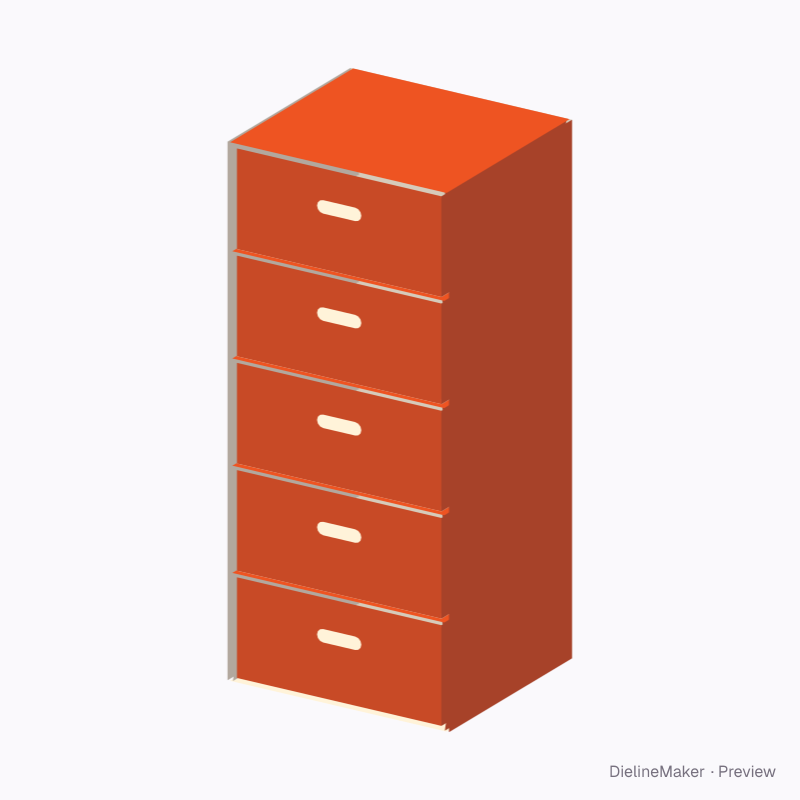

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-DRAWER-CABINET-01Display
Tall five-drawer cabinet dieline
A board cabinet: a one-piece carcass, glued shelves and a pull-out drawer tray per row with a finger slot. A ready-sized preset of the cardboard drawer cabinet — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside450 × 400 × 1000 mm
Outside459.2 × 409.2 × 1009.2 mm
Flat blank1250 × 1800 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-DRAWER-CABINET-01
- Inside size
- Width 450 · Depth 400 · Height 1000 mm
- Size range
- Width 150–1000 · Depth 150–700 · Height 150–1400 mm
- Manufacturing
- 454.6 × 404.6 × 1004.6 mm score to score · inside vs outside sizes
- Parts
- 10 parts — Cabinet carcass, Shelf 1, Shelf 2, Shelf 3, Shelf 4, Drawer 1, Drawer 2, Drawer 3, Drawer 4, Drawer 5
- Board area
- 4.848 m²
- Default board
- EB double wall · 4.6 mm caliper
- Board options
- EB doubleB-fluteE-flute WChipboard 2
- Good for

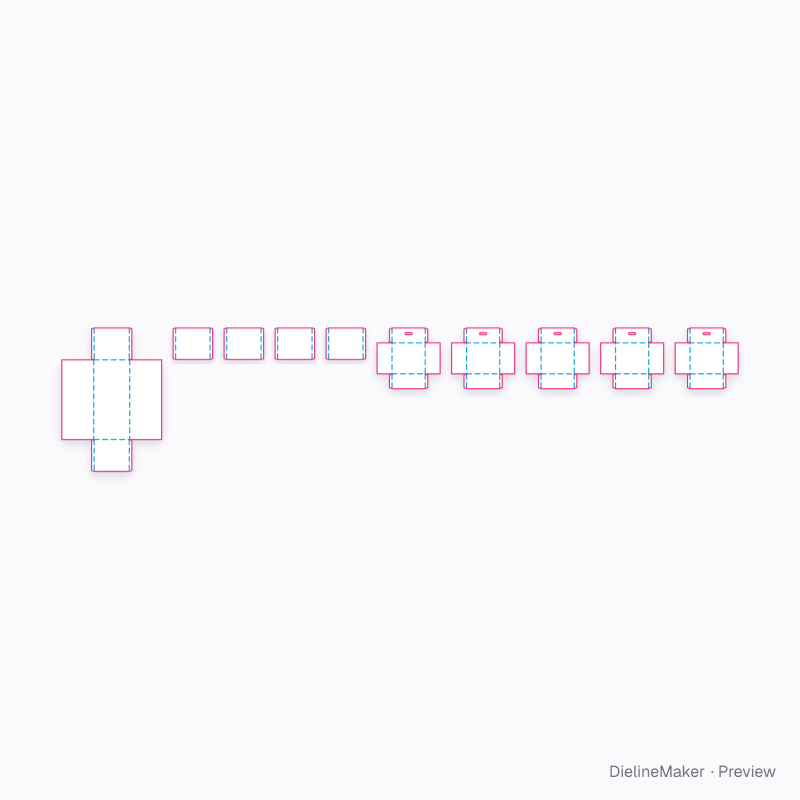

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-DRAWER-CABINET-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (4.6 mm for EB double wall). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BackCabinet carcass | 450 × 1000 | L × H |
| Left sideCabinet carcass | 400 × 1000 | W × H |
| Right sideCabinet carcass | 400 × 1000 | W × H |
| TopCabinet carcass | 439.8 × 400 | – × W |
| BaseCabinet carcass | 439.8 × 400 | – × W |
| Glue flap ×4Cabinet carcass | 32 × 396 | – |
| Shelf 1Shelf 1 | 430.6 × 394.9 | – |
| Glue flap ×2Shelf 1 | 32 × 392.9 | – |
| Shelf 2Shelf 2 | 430.6 × 394.9 | – |
| Glue flap ×2Shelf 2 | 32 × 392.9 | – |
| Shelf 3Shelf 3 | 430.6 × 394.9 | – |
| Glue flap ×2Shelf 3 | 32 × 392.9 | – |
| Shelf 4Shelf 4 | 430.6 × 394.9 | – |
| Glue flap ×2Shelf 4 | 32 × 392.9 | – |
| Drawer baseDrawer 1 | 415.4 × 388.9 | – |
| Drawer frontDrawer 1 | 415.4 × 186.9 | – |
23 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Drawerscount
The cardboard drawer cabinet family
The same structure with sizes, boards and options set for a use.

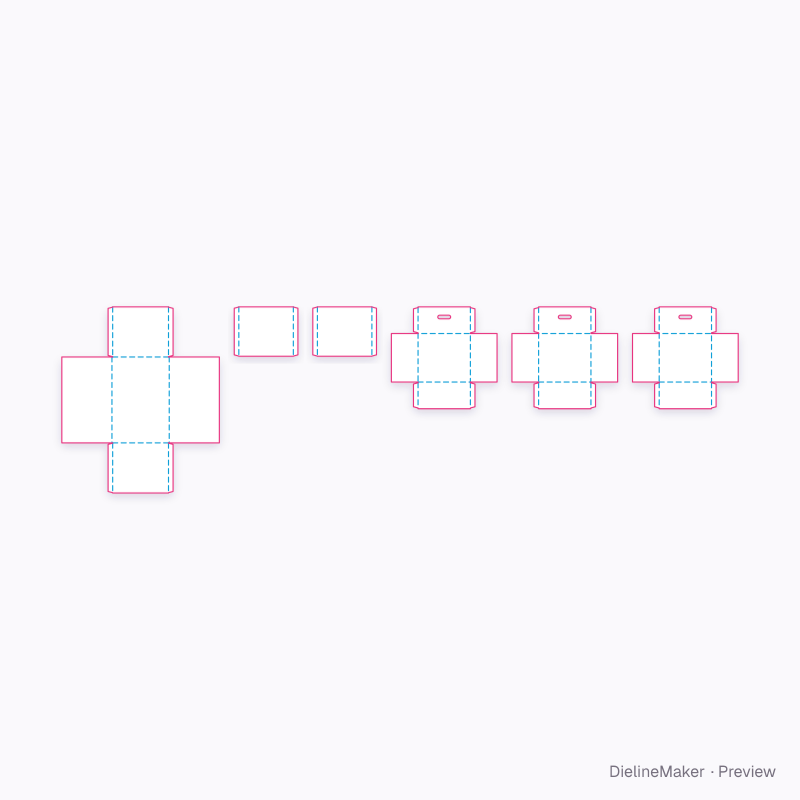

Preset

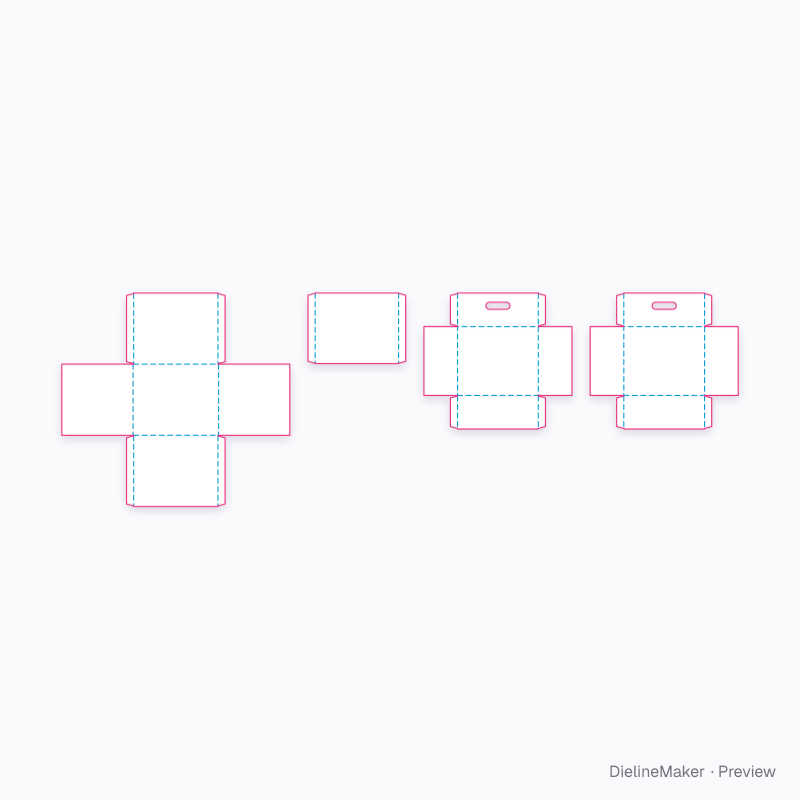

Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this tall five-drawer cabinet yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
