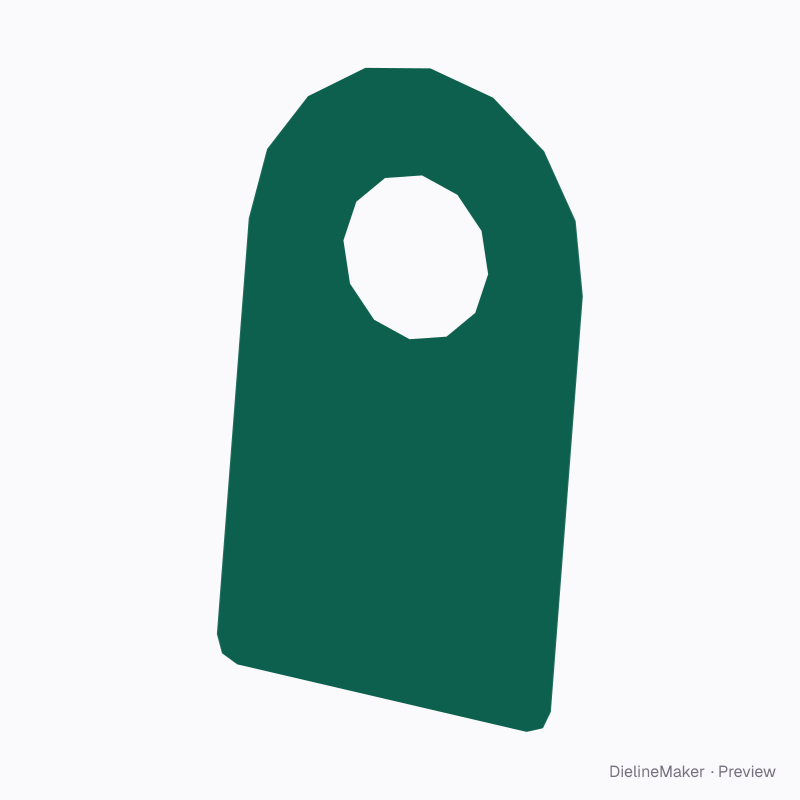

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
Beer bottle collar dieline
Small neck tag for craft beer. A ready-sized preset of the bottle neck hanger — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside60 × 100 mm
Outside60 × 100 mm
Flat blank60 × 100 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 60 · Height 100 mm
- Size range
- Width 40–160 · Height 60–300 mm
- Manufacturing
- 60 × 100 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.006 m² · about 90 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 300GD2 350PET 0.3SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Shape2 options
- Corner radiusmm
- Neck holemm
- Grip slitscount
- Slit lengthmm
The bottle neck hanger family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this beer bottle collar yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
