Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-BIKERACK-01Apparel & merchandise

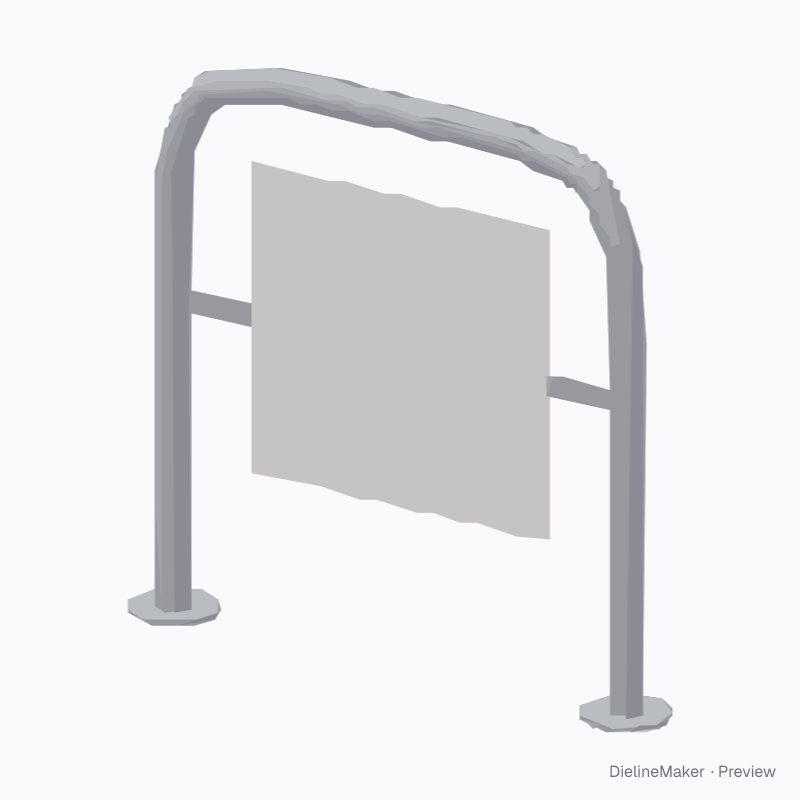

Single branded bike stand decoration template
A row of inverted-U bike stands or a serpentine wave rack with printed branding plates fixed inside the hoops. A ready-sized preset of the branded bike parking rack — adjust the object dimensions and decoration area to preview your artwork at size.
Object size700 × 800 mm
Artwork area460 × 440 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-BIKERACK-01
- Object size
- Hoop width 700 · Hoop height 800 mm
- Size range
- Hoop width 400–1200 · Hoop height 500–1200 mm
- Parts
- 2 parts — Plate front, Plate rear
- Artwork area
- 0.405 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 7 options; the template and 3D preview follow each change.
- Rack2 options
- Hoopscount
- Hoop spacingmm
- Branding plates2 options
- Plate height%
- Print the rear faceon / off
- Tube5 options
The branded bike parking rack family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this single branded bike stand yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
