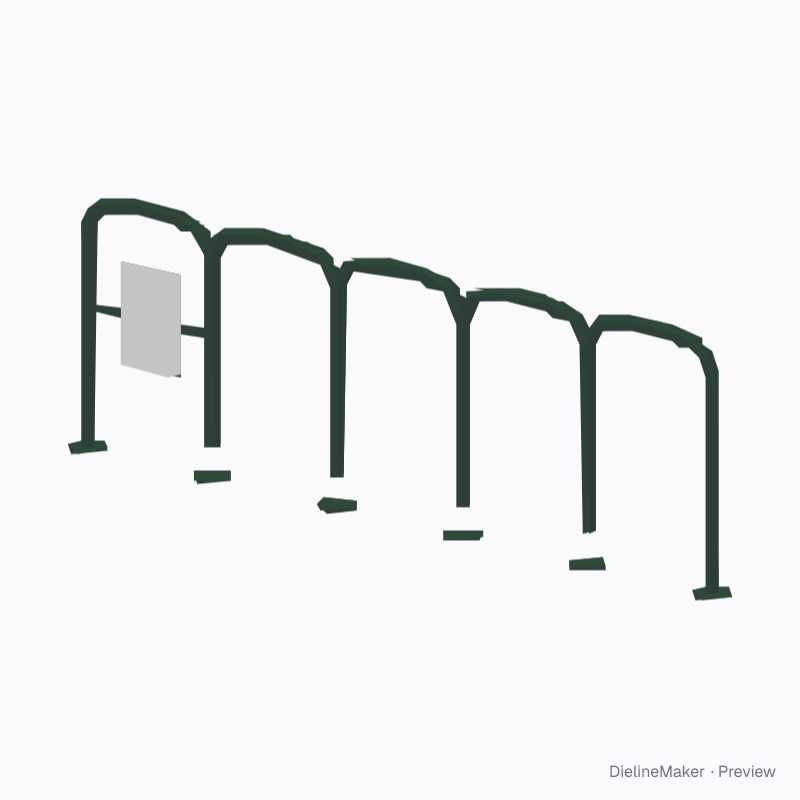

A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-BIKERACK-01Apparel & merchandise
Wave bike rack with branding plate decoration template
A row of inverted-U bike stands or a serpentine wave rack with printed branding plates fixed inside the hoops. A ready-sized preset of the branded bike parking rack — adjust the object dimensions and decoration area to preview your artwork at size.
Object size450 × 850 mm
Artwork area210 × 340 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-BIKERACK-01
- Object size
- Hoop width 450 · Hoop height 850 mm
- Size range
- Hoop width 400–1200 · Hoop height 500–1200 mm
- Parts
- 2 parts — Plate front, Plate rear
- Artwork area
- 0.143 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 6 options; the template and 3D preview follow each change.
- Rack2 options
- Hoopscount
- Branding plates2 options
- Plate height%
- Print the rear faceon / off
- Tube5 options
