Juice box 200 ml dieline

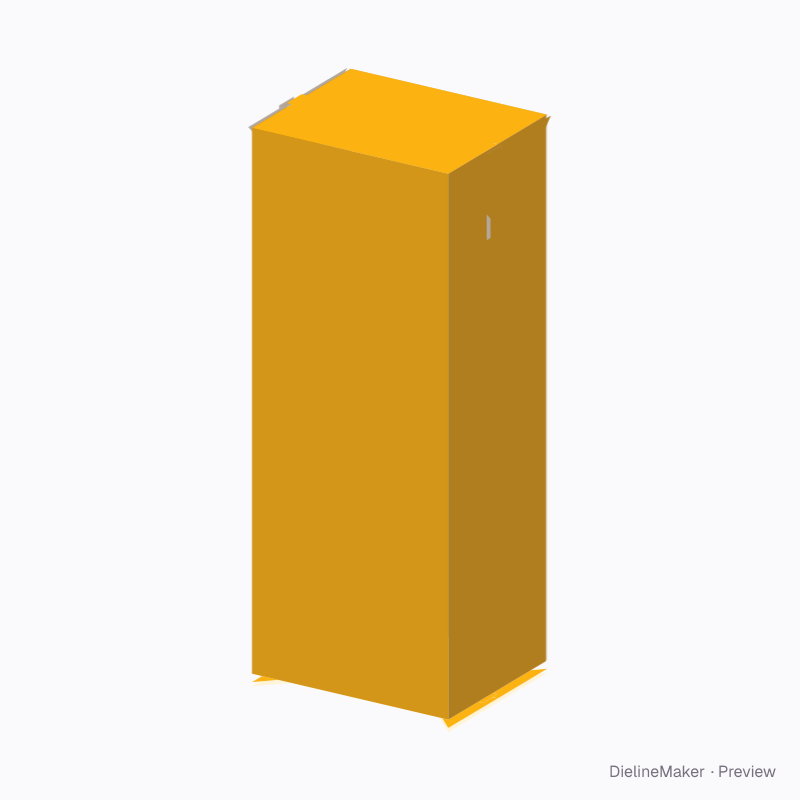

The lunchbox juice drink: the slim 200 ml brick, about 47 × 38 × 119 mm outside. A ready-sized preset of the juice box (brick carton) — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside46 × 37 × 118 mm
Outside46.9 × 37.9 × 118.9 mm
Flat blank179.8 × 167.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FIN-SEALED-BRICK-01
- Inside size
- Length 46 · Width 37 · Height 118 mm
- Size range
- Length 30–150 · Width 25–100 · Height 60–300 mm
- Manufacturing
- 46.5 × 37.5 × 118.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.029 m² · about 20 up on a 720 × 1020 mm sheet
- Default board
- Food SBS, PE-coated 300 g · 0.45 mm caliper
- Board options
- Food SBS PESBS 300Food kraft PESBS 350SBS 18 pt
- Good for

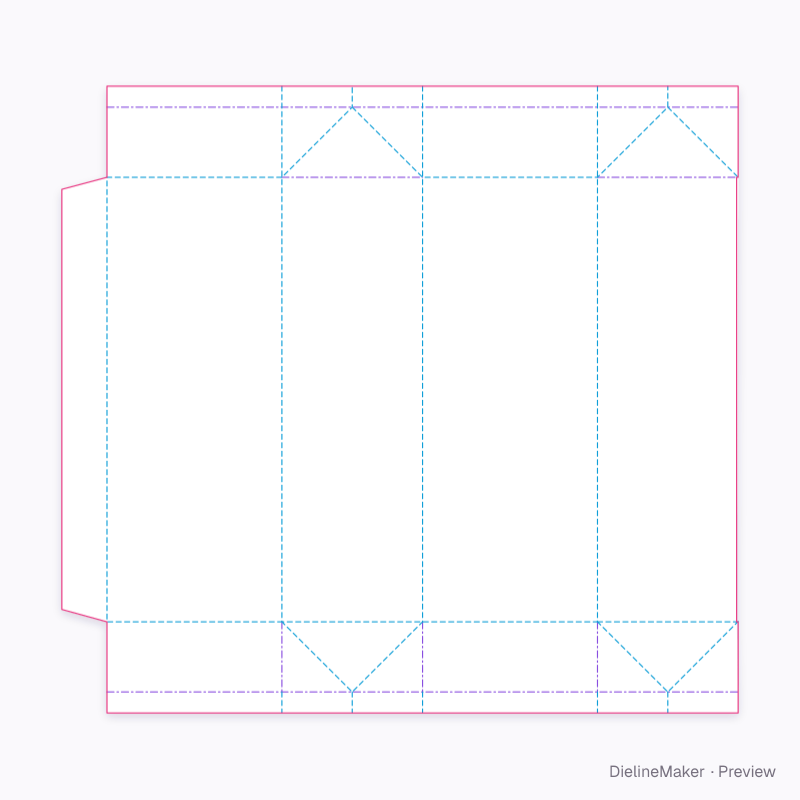

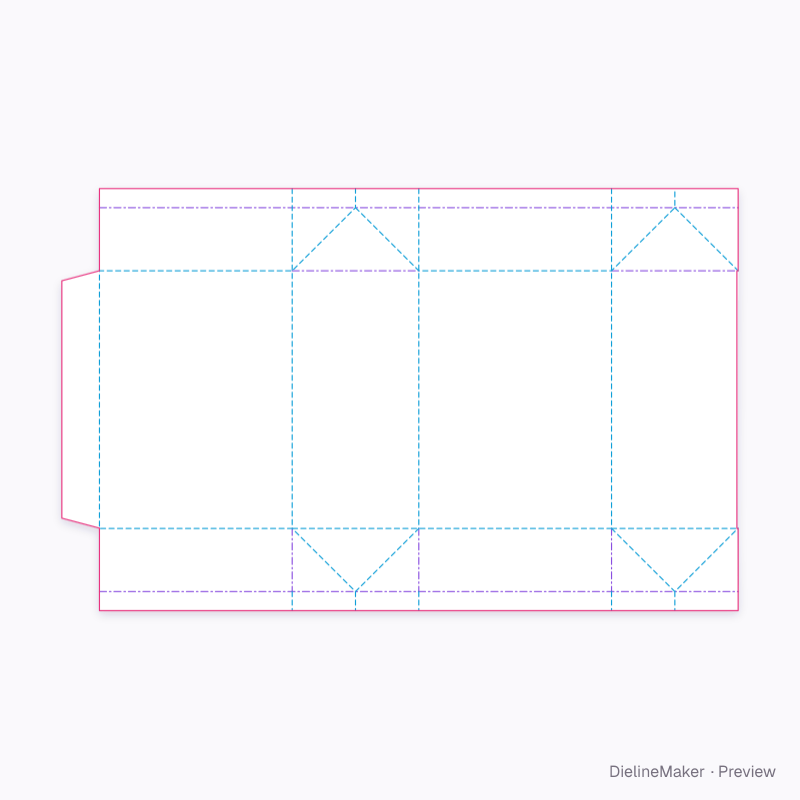

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-FIN-SEALED-BRICK-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.45 mm for Food SBS, PE-coated 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 46.5 × 118.5 | L + T × H + T |
| Left side | 37.5 × 118.5 | W + T × H + T |
| Back | 46.5 × 118.5 | L + T × H + T |
| Right side | 37 × 118.5 | W × H + T |
| Glue flap | 12 × 118.5 | – × H + T |
| Bottom (front half) | 46.5 × 18.7 | L + T × – |
| Bottom fin | 46.5 × 5.6 | L + T × – |
| Bottom (back half) | 46.5 × 18.7 | L + T × – |
| Bottom ear fold | 26.5 × 13.2 | – |
| Bottom ear fold ×3 | 13.2 × 26.5 | – |
| Bottom ear fin ×3 | 18.7 × 5.6 | – |
| Bottom ear fin | 18.7 × 5.6 | – |
| Top (front half) | 46.5 × 18.7 | L + T × – |
| Top fin | 46.5 × 5.6 | L + T × – |
| Top (back half) | 46.5 × 18.7 | L + T × – |
| Top ear | 37.5 × 18.7 | W + T × – |
5 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
