Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-BUTTON-TONGUE-TOP-01Tuck end
Button-tongue top carton 100×70×120 dieline
A carton whose front top flap’s stepped tongue pushes up through a round hole in the back cover. A ready-sized preset of the carton with button-tongue top — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 70 × 120 mm
Outside101 × 71 × 121 mm
Flat blank353.5 × 236 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-BUTTON-TONGUE-TOP-01
- Inside size
- Length 100 · Width 70 · Height 120 mm
- Size range
- Length 40–300 · Width 30–250 · Height 40–400 mm
- Manufacturing
- 100.5 × 70.5 × 120.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.065 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350E-flute WSBS 18 pt
- Good for

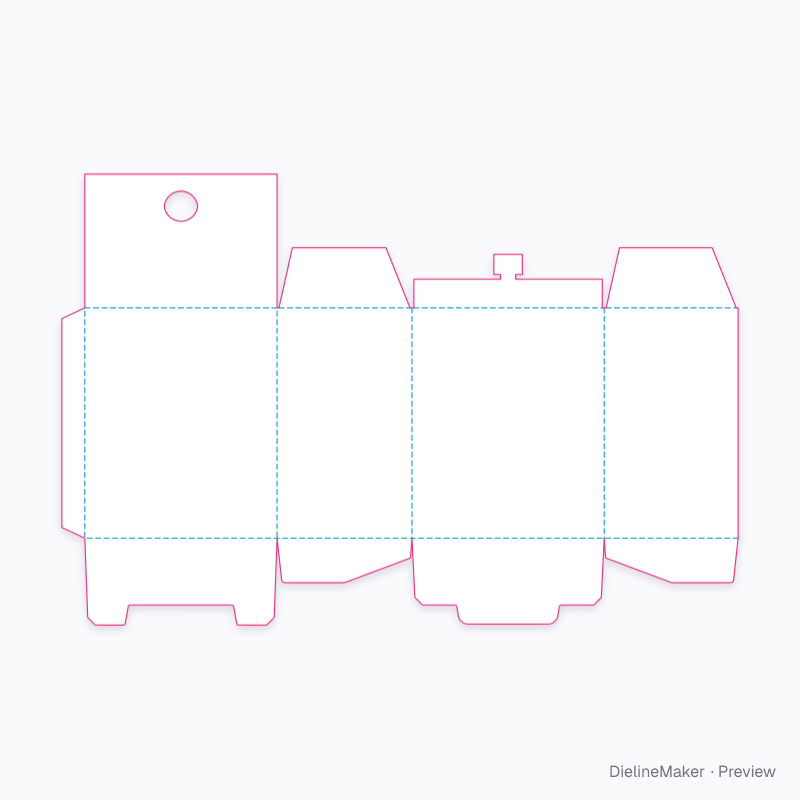

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-BUTTON-TONGUE-TOP-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 100.5 × 120.5 | L + T × H + T |
| Left side | 70.5 × 120.5 | W + T × H + T |
| Back | 100.5 × 120.5 | L + T × H + T |
| Right side | 70 × 120.5 | W × H + T |
| Glue flap | 12 × 120.5 | – × H + T |
| Snap end | 70.5 × 23.3 | W + T × – |
| Snap end | 70 × 23.3 | W × – |
| Snap bottom | 100.5 × 45.5 | L + T × – |
| Snap tuck | 100.5 × 45 | L + T × – |
| Dust flap | 68.5 × 31.5 | – |
| Dust flap | 68 × 31.5 | – |
| Front flap with stepped tongue | 98.5 × 28 | – |
| Cover with button hole | 100.5 × 70 | L + T × W |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Bottom2 options
- Button hole diametermm
The carton with button-tongue top family
The same structure with sizes, boards and options set for a use.
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this button-tongue top carton 100×70×120 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
