ECMA F10.81.00.00Tuck end
Reclosable lock-tab carton dieline
Glued-bottom carton with a reclosable top: a reduced inner flap carries a hooked tab that pushes up through a half-moon slot in the full outer flap. Suits products in an inner bag or liner. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside190 × 70 × 280 mm
Outside191 × 71 × 281 mm
Flat blank533.5 × 419.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F10.81.00.00
- Inside size
- Length (A) 190 · Depth (B) 70 · Height 280 mm
- Size range
- Length (A) 40–400 · Depth (B) 20–200 · Height 40–500 mm
- Manufacturing
- 190.5 × 70.5 × 280.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.210 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350SBS 300E-flute WSBS 18 pt
- Good for

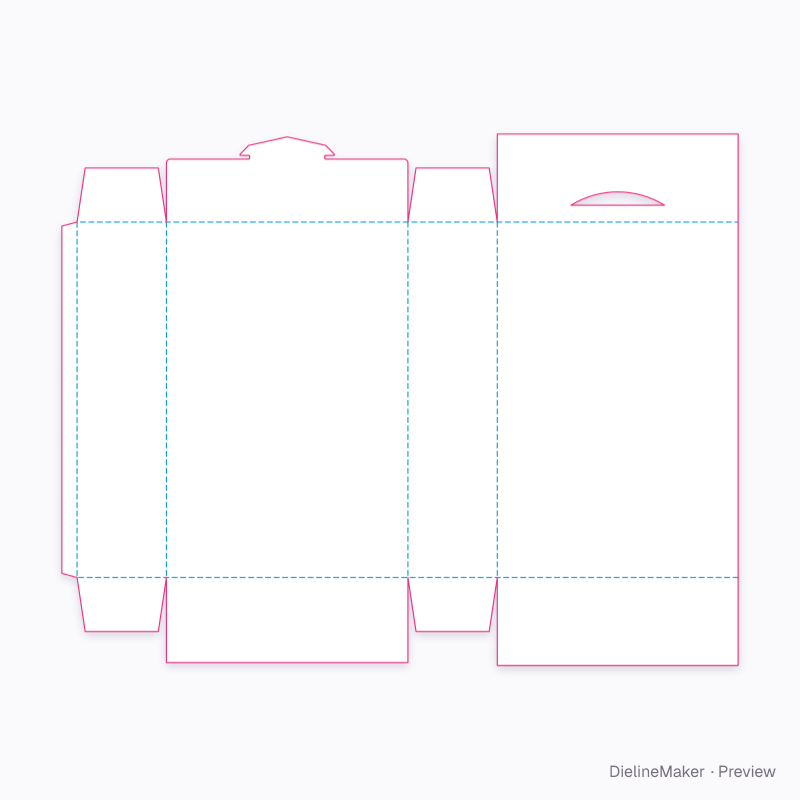

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F10.81.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Left side (B) | 70.5 × 280.5 | W + T × H + T |
| Back (A) | 190.5 × 280.5 | L + T × H + T |
| Right side (B) | 70.5 × 280.5 | W + T × H + T |
| Front (A) | 190 × 280.5 | L × H + T |
| Glue flap | 12 × 280.5 | – × H + T |
| Side flap ×4 | 70.5 × 42.7 | W + T × – |
| Inner top flap | 190.5 × 67.2 | L + T × – |
| Outer top flap | 190 × 69.5 | L × W − T |
| Inner bottom flap | 190.5 × 67.2 | L + T × – |
| Outer bottom flap | 190 × 69.5 | L × W − T |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Top closure2 options
- Inner top flapmm
- Tab heightmm
- Tab widthmm
- Side flapsmm
Ready-sized reclosable lock-tab carton presets
The same structure with sizes, boards and options set for a use.
- Preset

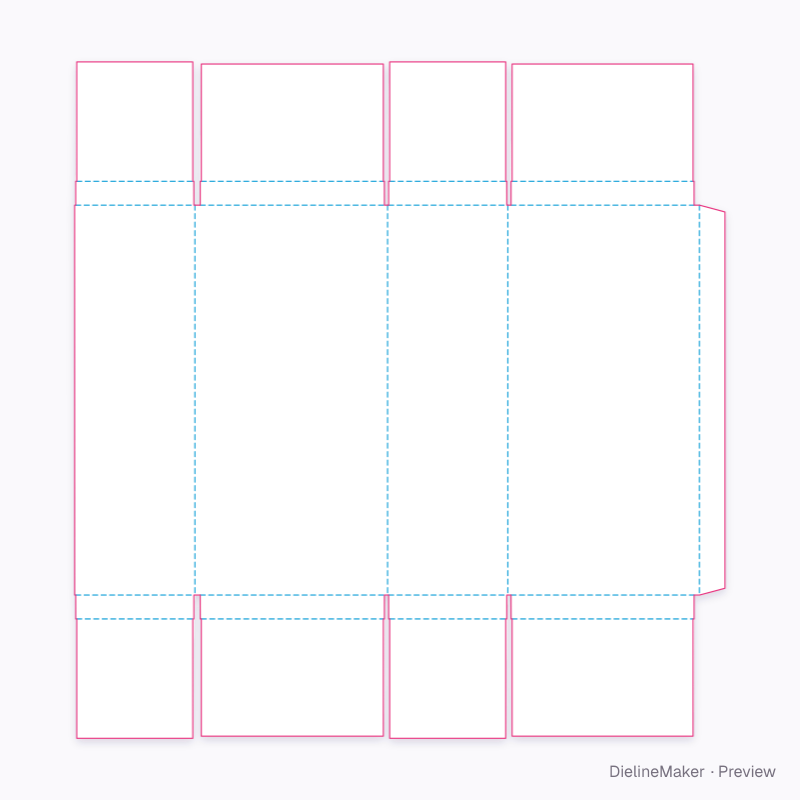

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this reclosable lock-tab carton yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
