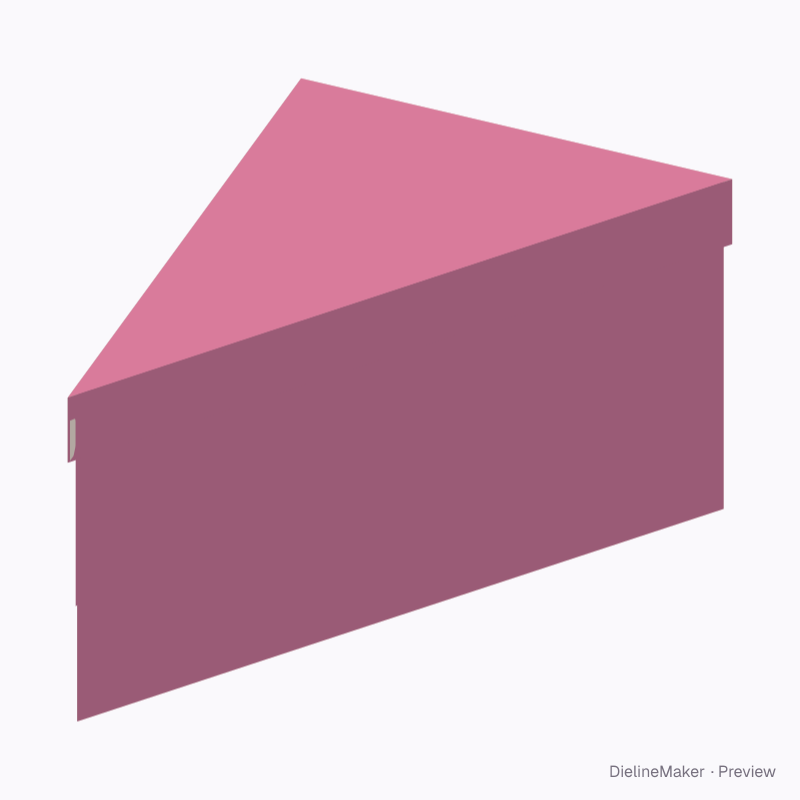

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureFood
Cake-slice tray & lid dieline
A triangular wedge tray with an independent lift-off lid. Back width and slice length control the point angle; each piece has three hinged walls and marked corner bonds. Use a food-safe liner for direct cake contact. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside105 × 175 × 75 mm
Outside106 × 176 × 76 mm
Flat blank251.6 × 281.7 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Back width 105 · Slice length 175 · Height 75 mm
- Size range
- Back width 80–350 · Slice length 80–350 · Height 20–100 mm
- Manufacturing
- 105.5 × 175.5 × 75.5 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Cake-slice tray & lid lid, Cake-slice tray & lid base tray
- Board area
- 0.064 m² · about 9 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Cake-slice tray & lid lidCake-slice tray & lid lid | 100 × 146 | – |
| Cake-slice tray & lid wallCake-slice tray & lid lid | 108.6 × 15 | – |
| Corner glue tabCake-slice tray & lid lid | 4.5 × 9.3 | – |
| Cake-slice tray & lid wall ×2Cake-slice tray & lid lid | 15 × 189 | – |
| Corner glue tab ×2Cake-slice tray & lid lid | 9.2 × 4.5 | – |
| Pose rigCake-slice tray & lid lid | 100 × 35 | – |
| Cake-slice tray & lid floorCake-slice tray & lid base tray | 105.7 × 176.1 | – |
| Cake-slice tray & lid wall ×2Cake-slice tray & lid base tray | 75.5 × 183.9 | H + T × – |
| Corner glue tab ×2Cake-slice tray & lid base tray | 48.6 × 10 | – |
| Cake-slice tray & lid wallCake-slice tray & lid base tray | 105.7 × 75.5 | – × H + T |
| Corner glue tabCake-slice tray & lid base tray | 10 × 48.6 | – |
