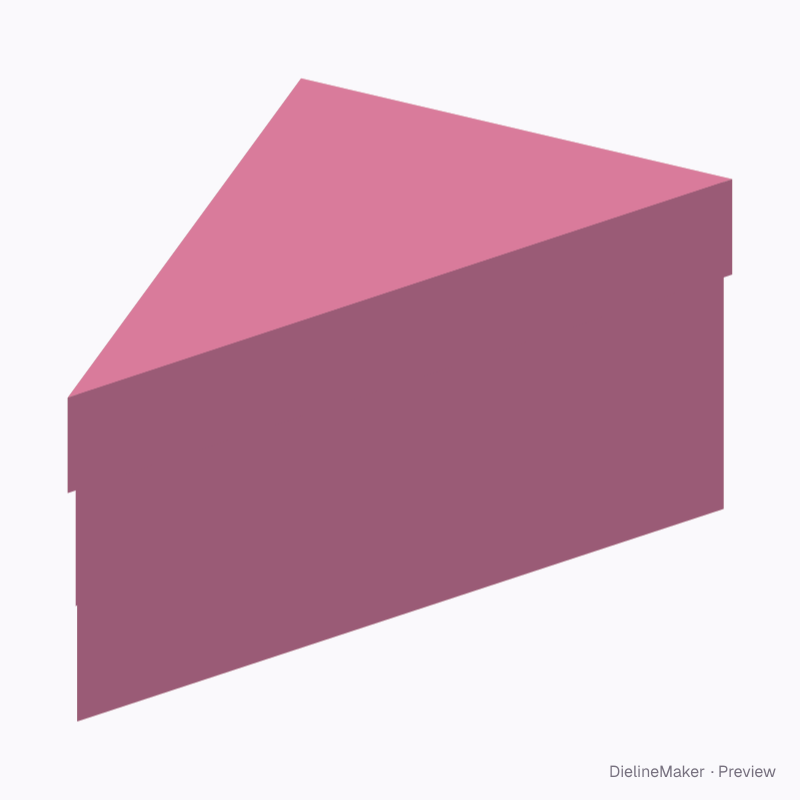

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureFood
Classic cake slice tray dieline
A triangular wedge tray with an independent lift-off lid. Back width and slice length control the point angle; each piece has three hinged walls and marked corner bonds. Use a food-safe liner for direct cake contact. A ready-sized preset of the cake-slice tray & lid — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside105 × 175 × 75 mm
Outside106 × 176 × 76 mm
Flat blank251.6 × 281.7 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Back width 105 · Slice length 175 · Height 75 mm
- Size range
- Back width 80–350 · Slice length 80–350 · Height 20–100 mm
- Manufacturing
- 105.5 × 175.5 × 75.5 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Cake-slice tray & lid lid, Cake-slice tray & lid base tray
- Board area
- 0.067 m² · about 9 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Cake-slice tray & lid lidCake-slice tray & lid lid | 100 × 141 | – |
| Cake-slice tray & lid wallCake-slice tray & lid lid | 108.6 × 22 | – |
| Corner glue tabCake-slice tray & lid lid | 6.6 × 13.8 | – |
| Cake-slice tray & lid wall ×2Cake-slice tray & lid lid | 22 × 189 | – |
| Corner glue tab ×2Cake-slice tray & lid lid | 13.8 × 6.6 | – |
| Pose rigCake-slice tray & lid lid | 100 × 40 | – |
| Cake-slice tray & lid floorCake-slice tray & lid base tray | 105.7 × 176.1 | – |
| Cake-slice tray & lid wall ×2Cake-slice tray & lid base tray | 75.5 × 183.9 | H + T × – |
| Corner glue tab ×2Cake-slice tray & lid base tray | 48.6 × 10 | – |
| Cake-slice tray & lid wallCake-slice tray & lid base tray | 105.7 × 75.5 | – × H + T |
| Corner glue tabCake-slice tray & lid base tray | 10 × 48.6 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Lid depthmm
The cake-slice tray & lid family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this classic cake slice tray yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
